PXD(e)721x - PXI(e) High Voltage Waveform Digitizer 100MS/s 16-Bit

Main features

  • Up to 2 independent channels (floating isolated inputs)
  • Input voltages up to 120Vpp
  • 100MS/s with up to 16Bit resolution
  • Up to 100MHz bandwidth
  • Option for fully isolated design & floating inputs
  • High common mode rejection
  • Designed for high throughput testing
  • DVM and Timer/Counter functionality available
Clear
Price request Datasheet

This family of High Resolution Digitizers is based on the “Flexible configurable PXI Platform” (FlexCPP). This Platform allows many variants of customer desired digitizers.

High speed, high resolution waveform digitizer
The PXD721x High Resolution Digitizer-Family features up to two 100 MS/s simultaneously sampled input channels with 16-bit resolution, input voltages up to +/-60V and a bandwidth up to 100MHz.
Every digitizer channel has its own 2 MB memory which allows up to 1 million samples until the memory has to be cleared.
Depending on the amount of channels and the floating-option, the digitizers are built into a compact 3U PXI device for 1 or 2 slots.

High input voltage range allows easy measurement
The maximum voltage for each signal input is +/-60V. This allows high voltage signals to be measured with-out signal conditioning.

High throughput design for many applications
The digitizers of the PXD721x family are designed for high throughput testing. Multiple measurements in combination with the memory segmenting feature results in additional test time improvement (optional).
This design guarantees highest quality measurements and is ideal for a wide range of application areas including automotive, communications, scientific applications, military/aerospace, and consumer electronics.
Acquired data can be pre-trigger, post-trigger, or anywhere in between, with a programmable sample counter that controls the number of data points.

The PXD721x Waveform Digitizer Family is also available as PXIe device PXDe721x.

PXD7211 - 1channel non floating digitizer in 1 slot

Waveform Digitizer

PXD7212 - 2 channel non floating digitizer in 1 slot

Waveform Digitizer

PXD7213 - 1 channel floating digitizer in 1 slot

Waveform Digitizer

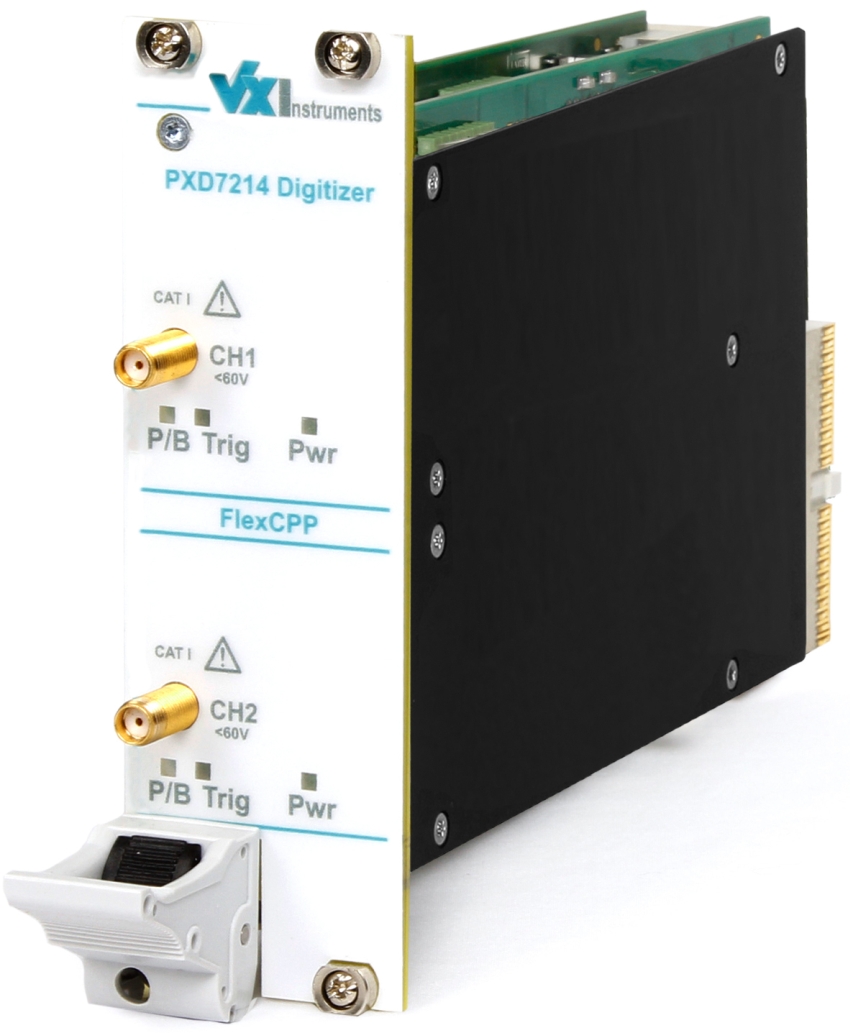

PXD7214 - 2 channel floating digitizer in 2 slots

Waveform Digitizer
