PXD731x - PXI High Voltage Waveform Digitizer 100MS/s 16-Bit

Main features

  • Highest on market available input voltage range with up to 500Vpp
  • 100MS/sec. with 16 Bit resolution
  • Fully isolated design with up to 2 independent channels (floating isolated digitizer inputs)
  • Multiple instrument and channel synchronization possibilities
  • Built-in timer/counter engine for high speed timer/counter
  • Built-in DVM function for high precision measurement
Clear
Price request Datasheet

High voltage, high resolution waveform digitizer
The PXD731x High Voltage Digitizer-Family features up to two 100 MS/s simultaneously sampled input channels with 16-bit resolution, input voltages up to ±250V and a bandwidth up to 50MHz. Every digitizer channel has its own 2 MB memory which allows up to 1 million samples. All PXD731x High Voltage Digitizer-Family devices have a high common mode rejection ratio (CMRR) due to the isolated digitizer inputs.

Highest input voltage range allows easy measurement
The maximum voltage for each signal input is ±250V. This allows high voltage signals to be measured without additional signal conditioning. Acquired data can be pre-trigger, post-trigger, or anywhere in between, with a programmable sample counter that controls the number of data points. A great amount of trigger capabilities results in multiple instrument and channel synchronization possibilities.

High throughput design for many applications
The digitizers of the PXD731x family are designed for high throughput testing. This design guarantees highest quality measurements and is ideal for a wide range of application areas in-cluding automotive, communications, scientific applications, military/aerospace and consumer electronics.

Available with 1 and 2 channels

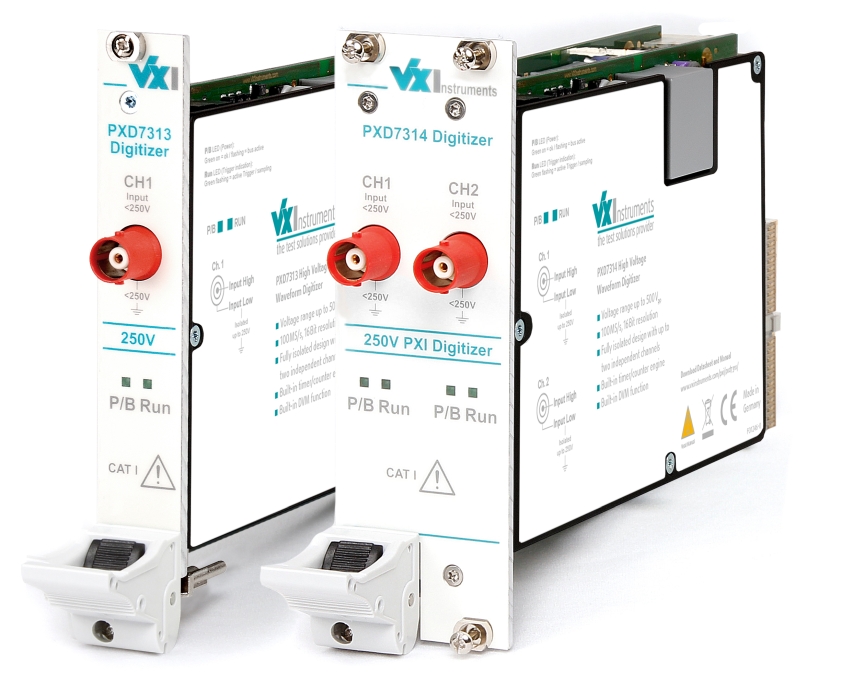

The single channel-device PXD7313 High Voltage Waveform Digitizer uses only 1 PXI slot (3U). The dual-channel device PXD7314 High Voltage Waveform Digitizer features two independent channels in 2 PXI slots (3U) over only one interface.

PXD7313 - 1 channel floating digitizer in 1 slotPXD7313 - 1 channel floating digitizer in 1 slot

Digitizer

PXD7314 - 2 channel floating digitizer in 2 slotsPXD7314 - 2 channel floating digitizer in 2 slots

Digitizer

PXD731xPXI High Voltage Waveform Digitizer 100MS/s 16-Bit
PXD73131 channel floating digitizer in 1 slot
PXD73142 channel floating digitizer in 2 slots
