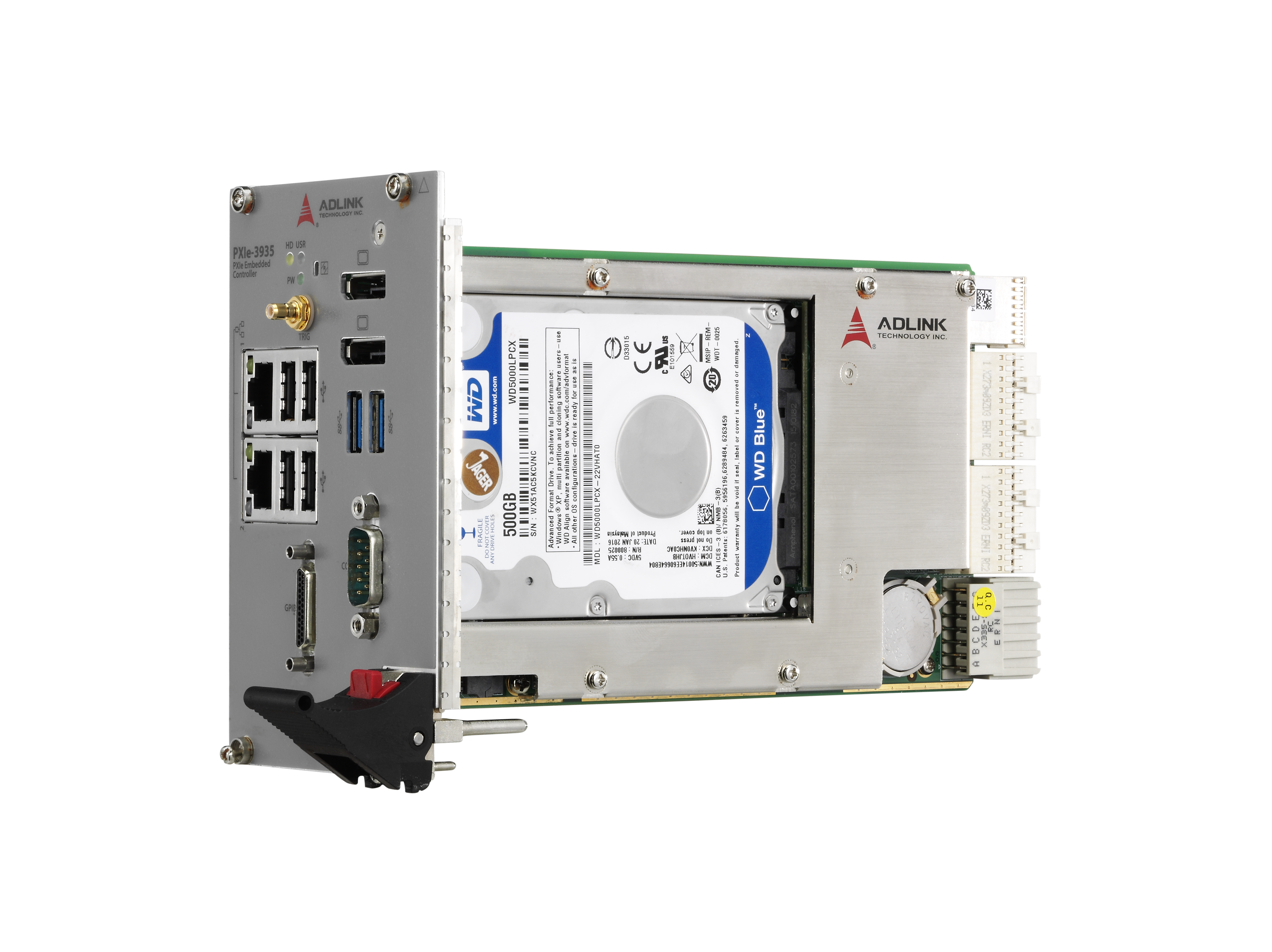

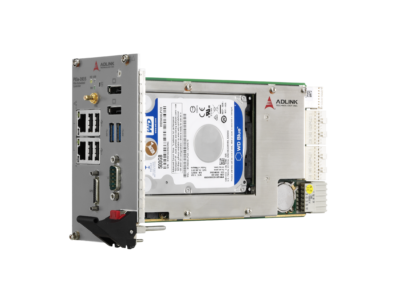

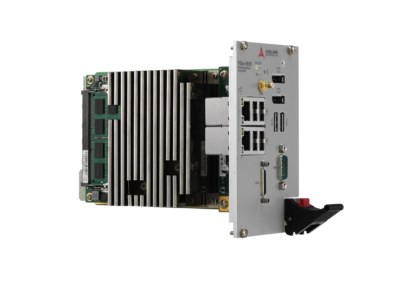

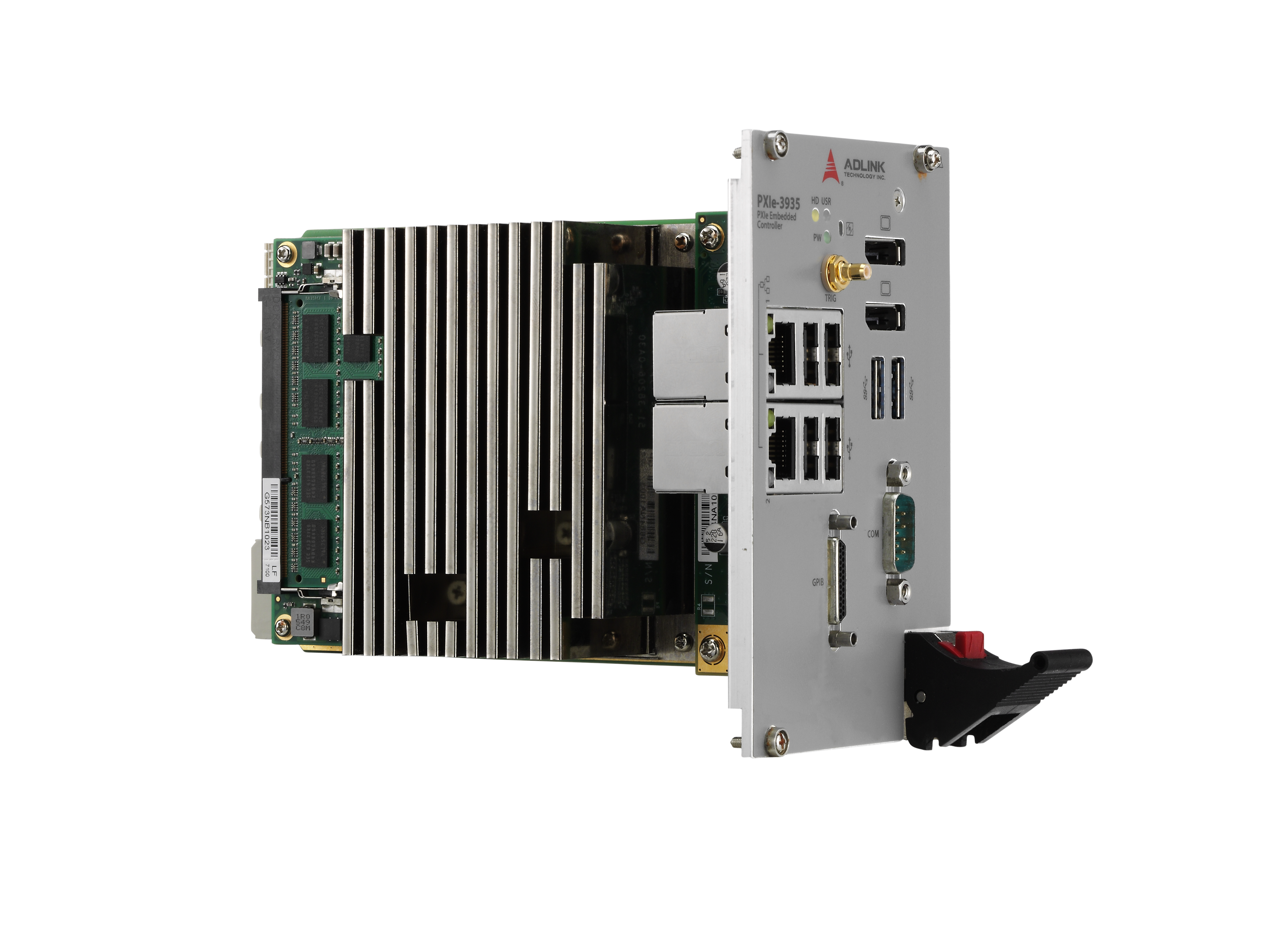

PXIe-3935 - 3U Intel® Celeron® 2000E 2.2GHz Processor-Based PXIe Controller

Main features

  • Entry level platform provides an ideal balance between performance and price point
  • PXI-5 PXI Express hardware specification Rev.1.0 compliant
  • Supports dual indenpendent displays via dual DisplayPort
  • 8 GB/s maximum system throughput
  • Dual USB 3.0 ports and four USB 2.0 ports
  • Dual Gigabit Ethernet ports
  • Built-in GPIB (IEEE488) controller
  • One RS-232/422/485 D-SUB9 connector
Price request Datasheet

The ADLINK PXIe-3935 PXI Express embedded controller, based on the Intel® Celeron® 2000E 2.2GHz processor, matches superior performance with an unprecedented price point. Specifically conceived for hybrid PXI Express-based testing systems, the ADLINK PXIe-3935 delivers a rugged and stable platform for a wide variety of testing and measurement applications.

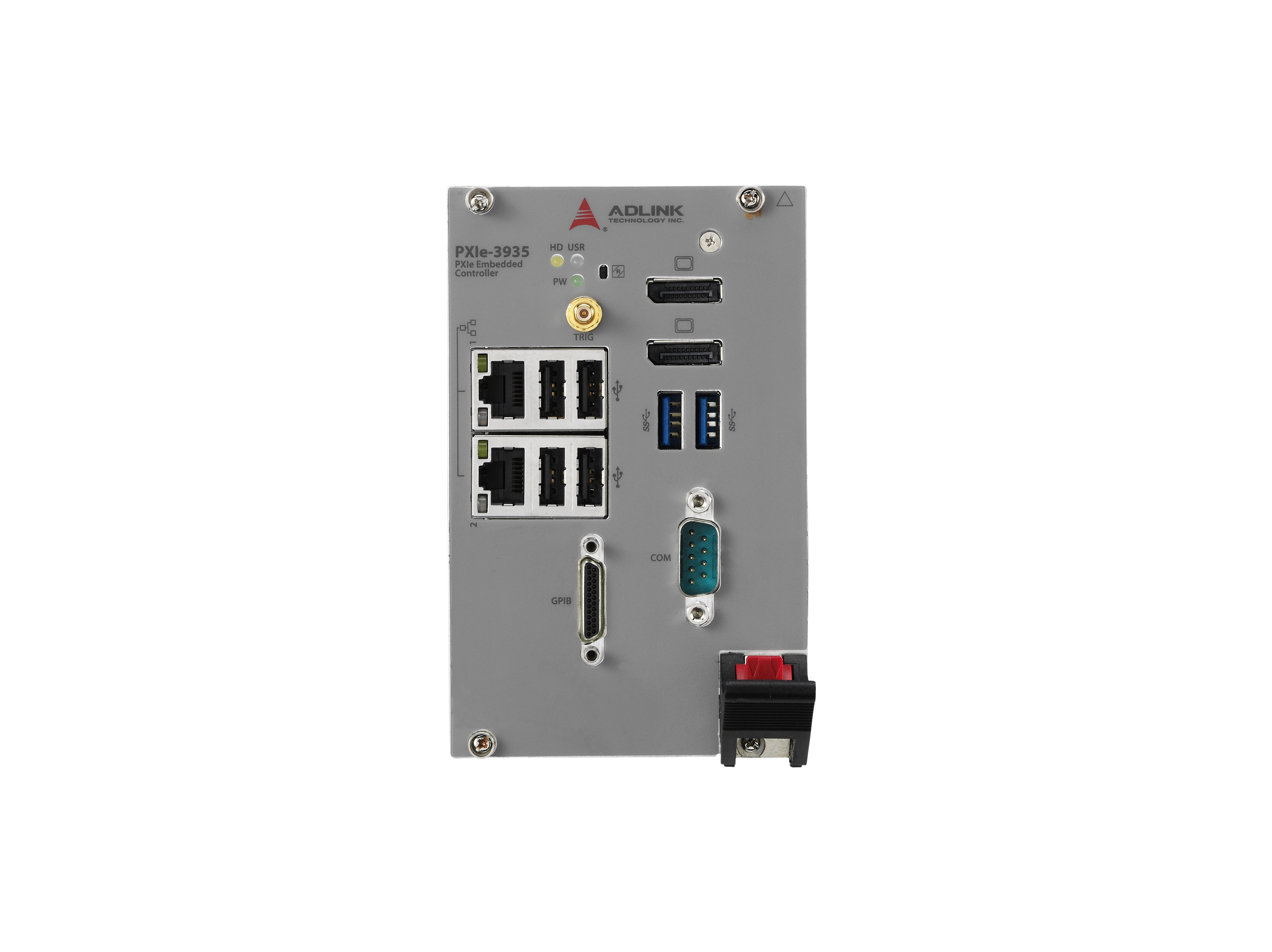

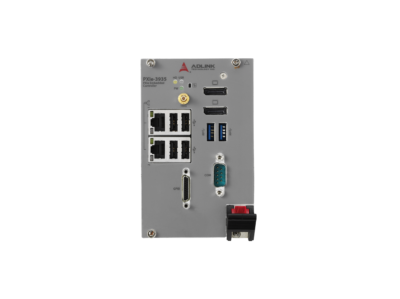

The ADLINK PXIe-3935 provides ample interface flexibility, including two DisplayPort connectors, allowing connection to two monitors, dual USB 3.0 connections for high speed peripheral devices, dual Gigabit Ethernet ports, with one for LAN connection and the other for controlling LXI instruments, four USB 2.0 ports for peripheral devices and USB instrument control, a Micro-D GPIB connector for GPIB instrument connection, and one RS-232/422/485 D-SUB9 connector for hybrid PXI-based testing systems control.

The ADLINK PXIe-3935 significantly reduces maintenance efforts with easily replaceable battery and upgradable storage and SODIMM modules. Backup BIOS also eases recovery in the event of a main BIOS crash.

PXIe-39353U Intel® Celeron® 2000E 2.2GHz Processor-Based PXIe Controller
