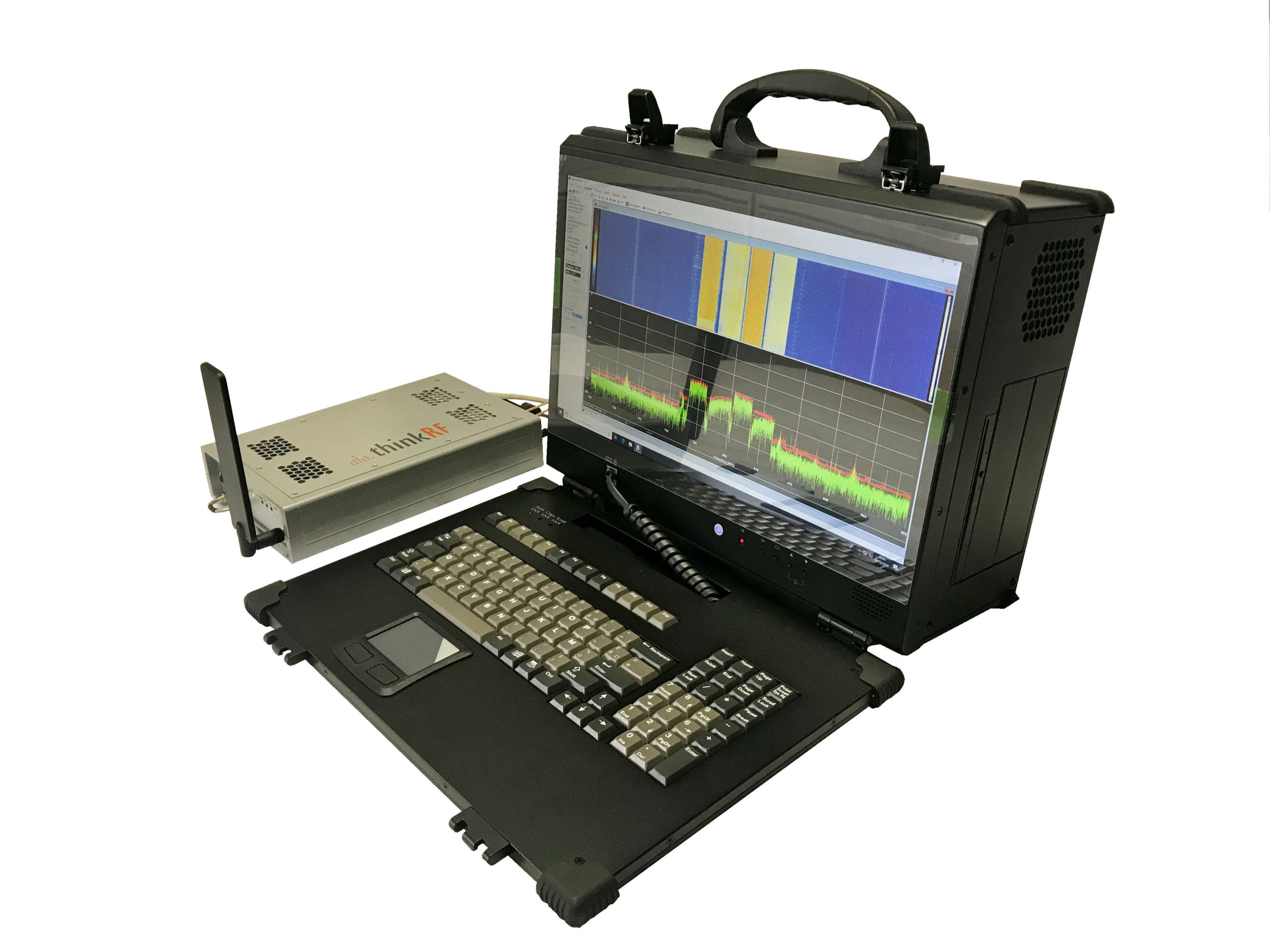

WBR-100 - Wideband RF Signal Analyzer Recording Systems

Main features

  • Real Time Bandwidth (RTBW) up to 160 MHz
  • Frequency Ranges from 9 kHz up to 27 GHz
  • Spurious Free Dynamic Range (SFDR) up to 100 dBc
  • A/D Conversion, 500MS/s , 16-Bit
  • CPU: Intel Xeon Gold 6128, 3.4 GHz 6-Cores / 12-Threads, Max Turbo 3.7 GHz, 19.25 MB L3 Cache
  • Up 48 GB DDR4 Memory
  • Up to 61.44TB of Data storage
  • Up to 17 hours of recording
  • Free programming Software for Acquisition and Playback
Clear
Price request Datasheet

The WBR-100 16-bit RF wideband spectrum recording systems are complete with integrated receivers, digitizers, computer, storage, and programming-free spectrum analyzer software.
These turn-key solutions provide customers with a very powerful and flexible signal recording system, while minimizing the risks of self-integrated systems.

The WBR-100 supports frequency ranges from 9 kHz up to 27 GHz which enables testing of modern systems and doesn’t exclude tests such as third-order intercepts.

WBR-100 wideband receivers feature up to 4 software selectable real time bandwidths, from 10 MHz to 160 MHz to provide unparalleled spectrum real-time signal recording.

The WBR-100 can support 2 receivers in baseband mode (IQ outputs) or 4 receivers in superhet mode (IF outputs). 10 MHz reference inputs and outputs on both digitizers and receivers provide a single frequency reference for synchronized system performance.

The spectrum analyzer software, SpectraScopeRT, requires no programming and allows for control of receiver center frequency, bandwidth, and signal recordings. SpectraScopeRT features real-time FFT power spectrums (with peak hold and persistence), spectrograms, histograms, and time domain displays while recording, and upon recording playback.
SpectraScopeRT also supports dual receiver, double bandwidth operation for both real-time display and gap-free recording. This allows 2 downconverters feeding a single digitizer to display and record parallel side by side bandwidths, effectively doubling the available bandwidth.

WBR-08G-160 - 100 kHz - 8 GHz Frequency Coverage, bandwidth configuration as follows: 160 MHz (0 Hz IF), 80 MHz (55 MHz IF), 10 MHz (35 MHz IF)

Recorder

WBR-18G-160 - 100 kHz - 18 GHz Frequency Coverage, bandwidth configuration as follows: 160 MHz (0 Hz IF), 80 MHz (55 MHz IF), 10 MHz (35 MHz IF)

Recorder

WBR-27G-160 - 100 kHz - 27 GHz Frequency Coverage, bandwidth configuration as follows: 160 MHz (0 Hz IF), 80 MHz (55 MHz IF), 10 MHz (35 MHz IF)

Recorder

Option-Mem48G - Memory Upgrade to 48G DDR4 DRAM

Recorder

Option-disk60T - Disk Upgrade to 60TBytes

Recorder

WBR-100Wideband RF Signal Analyzer Recording Systems
WBR-08G-160100 kHz - 8 GHz Frequency Coverage, bandwidth configuration as follows: 160 MHz (0 Hz IF), 80 MHz (55 MHz IF), 10 MHz (35 MHz IF)
WBR-18G-160100 kHz - 18 GHz Frequency Coverage, bandwidth configuration as follows: 160 MHz (0 Hz IF), 80 MHz (55 MHz IF), 10 MHz (35 MHz IF)
WBR-27G-160100 kHz - 27 GHz Frequency Coverage, bandwidth configuration as follows: 160 MHz (0 Hz IF), 80 MHz (55 MHz IF), 10 MHz (35 MHz IF)
Option-Mem48GMemory Upgrade to 48G DDR4 DRAM
Option-disk60TDisk Upgrade to 60TBytes
