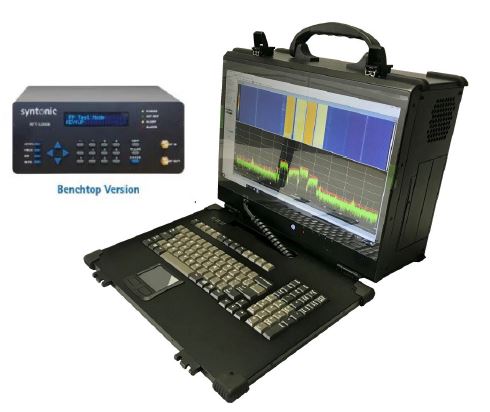

WBR-100X - Wideband RF Signal Analyzer Recording Systems

Main features

  • Real Time Bandwidth (RTBW) up to 1GHz
  • Frequency Ranges from 100MHz up to 40 GHz
  • A/D Conversion, 3GS/s , 12-Bit
  • CPU: 2 x Intel Xeon Gold 6128, 3.4 GHz 6-Cores / 12-Threads, Max Turbo 3.7 GHz, 19.25 MB L3 Cache
  • Up to 96 GB DDR4 Memory
  • Up to 64TB of Data storage
  • Up to 3.3 hours of recording @ 1GHz BW
  • Free programming Software for Acquisition and Playback
Clear
Price request Datasheet

The WBR-100X 12-bit RF wideband spectrum recording systems are complete with integrated receivers, digitizers, computer, storage, and programming-free spectrum analyzer software.
These turn-key solutions provide customers with a very powerful and flexible signal recording system, while minimizing the risks of self-integrated systems.

The WBR-100X supports frequency ranges from 100 MHz up to 40 GHz which enables testing of modern systems and doesn’t exclude tests such as third-order intercepts. WBR-100X wideband receivers feature up to 6 software selectable real time bandwidths, from 50 MHz to 1 GHz to provide unparalleled spectrum real-time signal recording.

The WBR-100X can support one receiver when used at 1GHz BW.

The spectrum analyzer software, SpectraScopeRT, requires no programming and allows for control of receiver center frequency, bandwidth, and signal recordings. SpectraScopeRT features real-time FFT power spectrums (with peak hold and persistence), spectrograms, histograms, and time domain displays while recording, and upon recording playback.
SpectraScopeRT also supports dual receiver, double bandwidth operation for both real-time display and gap-free recording. This allows 2 downconverters feeding a single digitizer to display and record parallel side by side bandwidths, effectively doubling the available bandwidth.

WBR-40G-1G - 100MHz - 18GHz CH1 & 18GHz - 40GHz CH2 RF Inputs, Selectable BWs: 1GHz @ 520MHz IF / 500MHz @ 270MHz IF / 200MHz @ 120MHz IF / 100MHz @ 70MHz IF / 50MHz @ 50MHz IF

Recorder

Option-disk64T - Disk Upgrade to 64TBytes

Recorder

WBR-100XWideband RF Signal Analyzer Recording Systems
WBR-40G-1G100MHz - 18GHz CH1 & 18GHz - 40GHz CH2 RF Inputs, Selectable BWs: 1GHz @ 520MHz IF / 500MHz @ 270MHz IF / 200MHz @ 120MHz IF / 100MHz @ 70MHz IF / 50MHz @ 50MHz IF
Option-disk64TDisk Upgrade to 64TBytes
