575 - Digital Delay / Pulse Generator

Main features

  • 250pS Delay & Width Resolution on 8 channels
  • 10pS channel Jitter / 800pS RMS Ext. jitter
  • Independent clock rates for each channel
  • Clock In & Clock Out
  • Programmable (Ethernet/USB/RS-232/GPIB)
  • Combine Electrical and Optical Outputs
  • Dual Inputs (2 Gate / Gate+Trig / 2 Trig)
Clear
Price request Datasheet

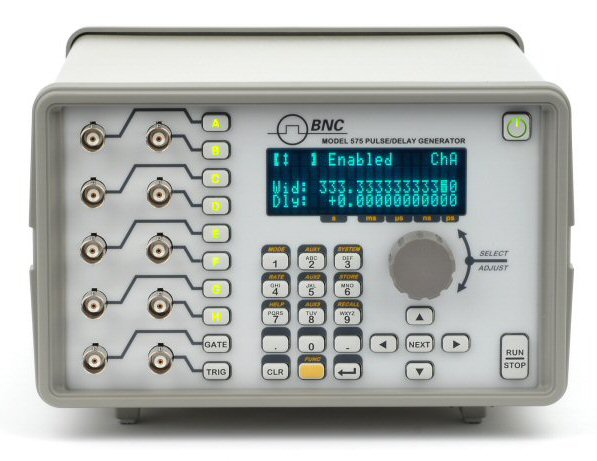

The Model 575 provides multi-channel 250 ps-resolution timing, delaying, and gating, pulsing and syncing functions for an attractive price. There are many practical modes of operation and features in addition to the traditional digital delay and pulse generator modes. For usefulness and value – there is nothing comparable.

Each channel provides both delays and widths – so a 2-channel Model 575 provides the same delay and width functionality of competitive 4-channel units. The 575 is available in 2, 4 and 8 channel configurations, with optional Ethernet, USB, High Voltage and Dual Input Trigger options.

This Digital Delay/Pulse Generator, representing our finest in precision timing, provides precise delays and widths with 250pS resolution for times up to 100 seconds. Low jitter both with internal clocks (50pS) and using an external trigger (800pS) give users the timing needed to control many devices. This is particularly useful where several pulses or gate signals need to be delayed and timed with respect to each other or the common trigger. You may even use one channel as a trigger reference for other channels, locking the timing delays when needed. There is lots to learn about the Model 575, which offers much more than a clock-divider, independent channel triggering, independent amplitudes/channel, delay and width control, and a LabView 8 driver. Give us a call, we are happy to discuss your applications.

575-2C - 2-Channel Digital Delay Generator (250 ps resolution), Standard Communication includes RS-232, USB Standard

575

575-4C - 4-Channel Digital Delay Generator (250 ps resolution), Standard Communication includes RS-232, USB Standard

575

575-8C - 8-Channel Digital Delay Generator (250 ps resolution), Standard Communication includes RS-232, USB Standard

575

575-AT20 - TTL/Adjustable 20V Electrical Output (price per bank of 2 channels)

575

575-AT35 - TTL/Adjustable 35V Electrical Output (price per bank of 2 channels)

575

575-AT45 - TTL/Adjustable 45V Electrical Output (price per bank of 2 channels)

575

575-L82 - 820nm Optical Input

575

575-L130 - 1300nm Optical Input

575

575-TZ35 - TTL 50 Ohm Match/35V Adj Output (price per bank of 2 channels)

575

575-TZ50 - TTL/Adjustable 50 Ohm Match (price per bank of 2 channels)

575

575-IA15 - Electrical 15v Adjustable Input

575

575-COM - Add GPIB and Ethernet communication

575

575-OPTI - Increment Mode

575

575-P/N6978 - Rack Mount for Model 575 - Double

575

575-P/N6923 - 19" Rack Mount for Model 575 - Single

575

575Digital Delay / Pulse Generator
575-2C2-Channel Digital Delay Generator (250 ps resolution), Standard Communication includes RS-232, USB Standard
575-4C4-Channel Digital Delay Generator (250 ps resolution), Standard Communication includes RS-232, USB Standard
575-8C8-Channel Digital Delay Generator (250 ps resolution), Standard Communication includes RS-232, USB Standard
575-AT20TTL/Adjustable 20V Electrical Output (price per bank of 2 channels)
575-AT35TTL/Adjustable 35V Electrical Output (price per bank of 2 channels)
575-AT45TTL/Adjustable 45V Electrical Output (price per bank of 2 channels)
575-L82820nm Optical Input
575-L1301300nm Optical Input
575-TZ35TTL 50 Ohm Match/35V Adj Output (price per bank of 2 channels)
575-TZ50TTL/Adjustable 50 Ohm Match (price per bank of 2 channels)
575-IA15Electrical 15v Adjustable Input
575-COMAdd GPIB and Ethernet communication
575-OPTIIncrement Mode
575-P/N6978Rack Mount for Model 575 - Double
575-P/N692319" Rack Mount for Model 575 - Single
