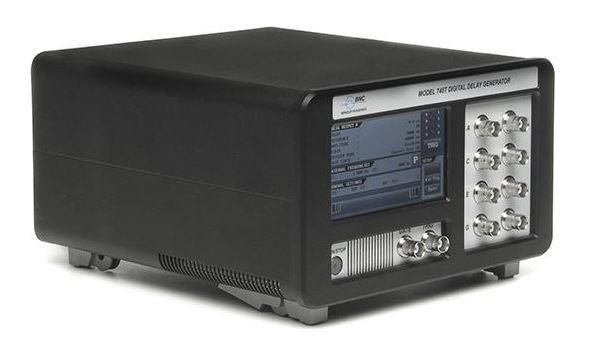

745 - 250fS Digital delay generator 4 channels

Main features

  • 4 independent delay channels
  • Resolution of 250fs
  • Jitter 20ps RMS
  • Delay Range: 20 seconds
  • Output pulse up to 10V, 1ns of rise time
  • Independent control of width and amplitude
  • Controlled via Ethernet, web page and front panel
  • Compact size
  • Option: 8-channels extension
Clear
Price request Datasheet

The digital delay generator module 745 provides four independent delayed pulses. Delays of up to 10 seconds can be programmed with 250fs resolution and jitter between channels of less than 20ps RMS. A channel T0 is used as a time reference for the 4 delayed output pulses. The BNC outputs deliver up to 10V, 1 ns in 50 Ohm. The amplitude and pulse width are adjustable on each output channel. An input channel is used to trigger all output channels.

The 745 parameters can be controlled locally via the front panel keys and the LCD panel, and remotely controlled via Ethernet (10/100 Mbps) or Internet (Web page from the internal web server). This “web page” provides a simple method for configuring parameters on each channel and for controlling operation.

745-4C-GOC - 250fS Digital Delay Generator, 4 Channels, with Gate Input, Timebase Stability, Clock Out

588

745-8C-GOC - 250fS Digital Delay Generator, 8 Channels, with Gate Input, Timebase Stability, Clock Out

588

745T-4C-GOC - 250fS Digital Delay Generator, 4 Channels, with Gate Input, Timebase Stability, Clock Out, touchscreen

588

745T-8C-GOC - 250fS Digital Delay Generator, 8Channels, with Gate Input, Timebase Stability, Clock Out, touchscreen

588

745-35V - 35V output module for Model 745 (price per channel)

588

745250fS Digital delay generator 4 channels
745-4C-GOC250fS Digital Delay Generator, 4 Channels, with Gate Input, Timebase Stability, Clock Out
745-8C-GOC250fS Digital Delay Generator, 8 Channels, with Gate Input, Timebase Stability, Clock Out
745T-4C-GOC250fS Digital Delay Generator, 4 Channels, with Gate Input, Timebase Stability, Clock Out, touchscreen
745T-8C-GOC250fS Digital Delay Generator, 8Channels, with Gate Input, Timebase Stability, Clock Out, touchscreen
745-35V35V output module for Model 745 (price per channel)
