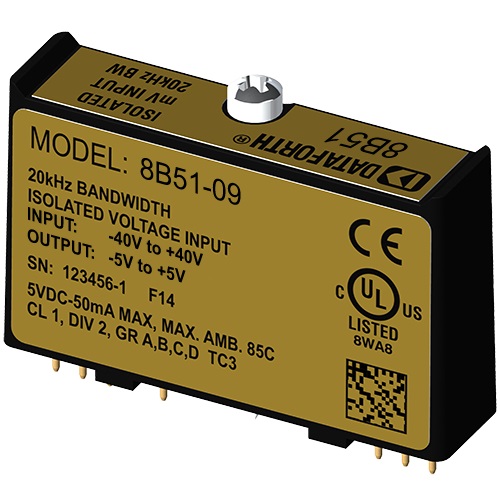

8B51 - Voltage Input Module, 20kHz Bandwidth

Main features

  • Input ranges ± 1V to ± 60V
  • Output ranges ±5V or 0 to 5V
  • Accepts volt level signals
  • High-Level Voltage Outputs
  • 1500Vrms Isolation
  • ANSI/IEEE C37.90.1 Transient Protection
  • Input Protection to 240VAC Continuous
  • 100dB CMR
  • 20kHz Signal Bandwidth
  • ±0.05% Accuracy
  • ±0.02% Linearity
  • Low Drift with Ambient Temperature
Price request Datasheet Ask a question

8B modules are an optimal solution for monitoring real-world process signals and providing high-level signals to a data acquisition system. Each 8B51 module isolates, filters, and amplifies a voltage input signal and provides an analog voltage output.

Signal filtering is accomplished with a 5-pole filter optimized for time and frequency response which provides 100dB per decade of normal-mode rejection above 20kHz. One pole of this filter is on the field side of the isolation barrier for anti-aliasing, and the other four are on the system side.

A special input circuit on the 8B51 modules provides protection against accidental connection of power-line voltages up to 240VAC. Clamp circuits on the I/O and power terminals protect against harmful transients.

Isolation is provided by optical coupling to suppress transmission of common mode spikes or surges. The module is powered from +5VDC, ±5%.

The modules are designed for installation in Class I, Division 2 hazardous locations and have a high level of immunity to environmental noise.

8B51-01 - Input Range: ±1V Output Range: ±5V

8B

8B51-02 - Input Range: ±5V Output Range: ±5V

8B

8B51-03 - Input Range: ±10V Output Range: ±5V

8B

8B51-04 - Input Range: ±1V Output Range: 0-5V

8B

8B51-05 - Input Range: ±5V Output Range: 0-5V

8B

8B51-06 - Input Range: ±10V Output Range: 0-5V

8B

8B51-07 - Input Range: ±20V Output Range: ±5V

8B

8B51-08 - Input Range: ±20V Output Range: 0-5V

8B

8B51-09 - Input Range: ±40V Output Range: ±5V

8B

8B51-10 - Input Range: ±40V Output Range: 0-5V

8B

8B51-12 - Input Range: ±60V Output Range: ±5V

8B

8B51-13 - Input Range: ±60V Output Range: 0-5V

8B

8B51 Voltage Input Module, 20kHz Bandwidth
8B51-01 Input Range: ±1V Output Range: ±5V
8B51-02 Input Range: ±5V Output Range: ±5V
8B51-03 Input Range: ±10V Output Range: ±5V
8B51-04 Input Range: ±1V Output Range: 0-5V
8B51-05 Input Range: ±5V Output Range: 0-5V
8B51-06 Input Range: ±10V Output Range: 0-5V
8B51-07 Input Range: ±20V Output Range: ±5V
8B51-08 Input Range: ±20V Output Range: 0-5V
8B51-09 Input Range: ±40V Output Range: ±5V
8B51-10 Input Range: ±40V Output Range: 0-5V
8B51-12 Input Range: ±60V Output Range: ±5V
8B51-13 Input Range: ±60V Output Range: 0-5V
