AcquiCrate-6U-4S-VME - 4 Slots 6U - VME System Platform

Main features

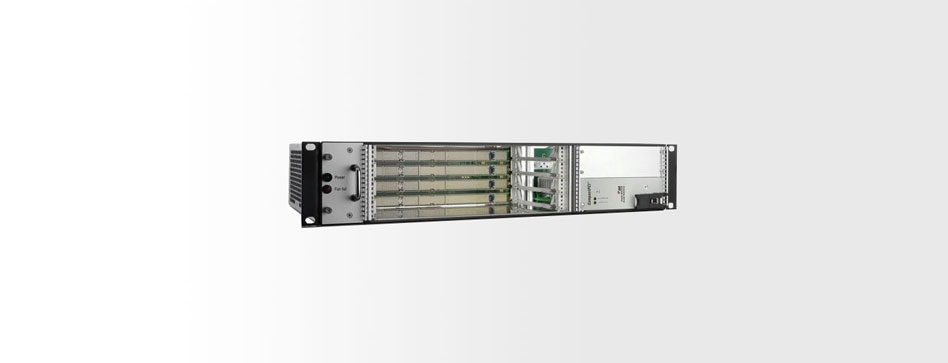

  • 2 U / 84 HP VME64x system platform, for horizontal installation of 6 U cards
  • Card rack acc. to IEEE 1101.1, 1101.10 / 11 and IEC 60297-3-101, -102, -103 screened
  • With VME 64x backplane to hold up to 2 CompactPCI power supply units (P47 connectors)
  • Incl. fan control and fan monitoring
  • Voltage monitoring with reset generator and AC fail identification
  • Cooled by 3 fans (air flow from left to right)
  • Completely assembled and wired



Price request Datasheet Ask a question

1 x VME 64x card rack, black coating outside (RAL9005), screened, with IEEE guide rails and ESD clip mounted on the right side

1 x VME 64x backplane, 9 U (6+3), 4 slots, with J0 connector, ADC (Automatic Daisy Chain), active termination, with 1 P47 connectors

1 x CompactPCI power supply unit with wide range input 90 – 264 VAC, 300 W with PFC, with P47 connector, incl. 3 U / 8 HP front panel

1 x Power supply connector with switch, fuse and filter

1 x Partial front panel 16 HP / 3 U with EMC spring, with cutout for power supply connector

3 x DC fans 80 x 80 x 25 mm and 40 x 40 x 20 mm (for rear I / O area)

1 x Blanking plate 8 HP / 3 U with EMC spring

LMH0000240 - VME64x 2U/84HP 4 slots with removable fan tray
LMH0000170 - VME64x 2U/84HP 4 slots with Fixed fans (Special order)

Rack VME

AcquiCrate-6U-4S-VME 4 Slots 6U - VME System Platform
LMH0000240 VME64x 2U/84HP 4 slots with removable fan tray
LMH0000170 VME64x 2U/84HP 4 slots with Fixed fans (Special order)
