AcquiCrate-6U-8S-VME - 8 Slots 6U - VME System Platform

Main features

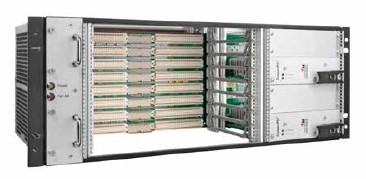

  • 4 U / 84 HP VME64x system platform, for horizontal installation of 6 U cards
  • Card rack acc. to IEEE 1101.1, 1101.10 / 11 and IEC 60297-3-101, -102, -103 screened
  • With VME64x backplane, to hold up to 3 CompactPCI power supply units (P47 connectors)
  • Cooled by 7 fans (air flow from left to right)
  • Completely assembled and wired



Price request Datasheet

1 x VME 64x card rack, black coating outside (RAL9005), screened, with IEEE guide rails and ESD clip mounted on the right side

1 x VME 64x backplane, 9 U (6+3), 8 slots, with J0 connector, ADC (Automatic Daisy Chain), active termination, with 3 P47 connectors

2 x CompactPCI power supply unit with wide range input 90 – 264 VAC, 250 Watt, (3,3 V / 33 A, 5 V / 33 A, 12 V / 5,5 A, –12 V / 1 A) with PFC, with P47 connector, incl. 3 U / 8 HP front panel

1 x Power supply connector with switch, fuse and filter

1 x Partial front panel 32HP / 3U with EMC spring on both sides, with cutout for power supply connector

7 x DC fans 80 x 80 x 25 mm and 40 x 40 x 20 mm (for rear I/O area)

2 x Blanking plate 8HP / 3U with EMC spring on both sides

Dimensions
B: 482.6 mm
H: 175.9 mm
D: 280.0 mm

AcquiCrate-6U-8S-VME8 Slots 6U - VME System Platform
