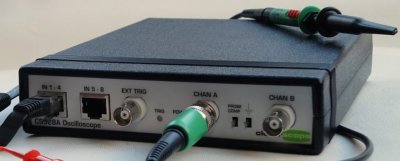

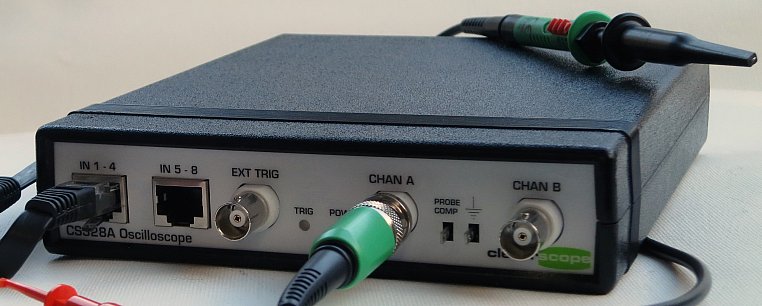

CS328A - Mixed Signal oscilloscope USB or Ethernet, 2 analog channels, 100MS/s, 8 Digital Channels

Main features

  • 2 Input Channels, 10-bit, 12-bit or 14-bit
  • up to 100 MS/s A/D Converter per Channel
  • 4MSamples/channel (8M Samples/channel)
  • 8 digital input capturing at up to 100MS/s simultaneously with the analog input channel
  • One external Trigger

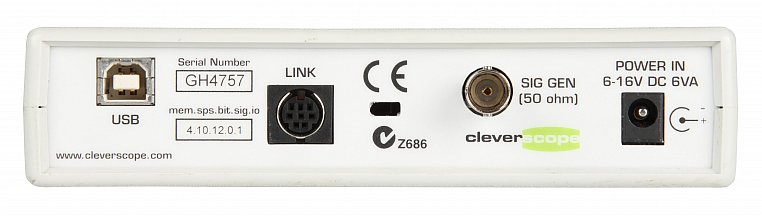

  • A rear panel I/O connector with a 100 Mbit/sec bi-directional LVDS/RS422 link, and three RS422 outputs
  • Anti-alias filter for improved Spectrum Analysis performance

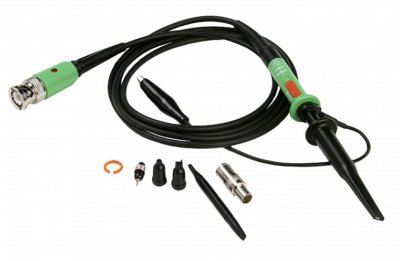

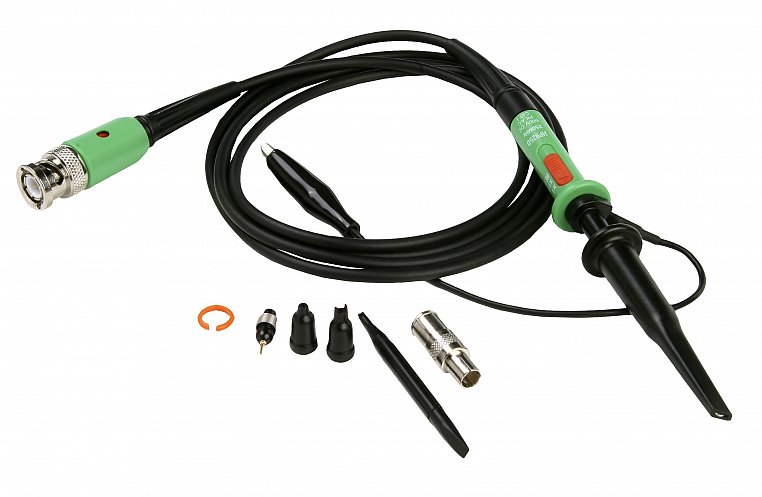

  • 2 analog probes included (x1, x10 / 150MHz)
  • USB 2.0 or Ethernet format

Powerful Standalone Application provided

  • Storage Oscilloscope
  • Spectrum Analyzer
  • Signal Generator

Option:

  • 1 output waveform channel, 50MS/s
  • Predefined waveform up to 15MHz (sine, square, Triangle)
Price request Datasheet Ask a question

USB 2.0 or Ethernet oscilloscope, 10 bit, 100 MS/s, 2 analog channels, 8 digital inputs, External Trigger, 4M samples storage for each of the 2 analog and 8 digital channels, comes with the CS300 application software, 2 x CS1001 and CS1004/5 probe sets. The front panel ground is continuous via the USB ground to the PC.

The CS328A can be upgraded to 12-Bit and 14-Bit, with extend memory up to 8M and a Waveform Generator

CS328A - USB 2.0 oscilloscope, 10 bit, 100 MSa/s, 2 analog channels, 8 digital inputs, External Trigger, 4M samples storage for each of the 2 analog and 8 digital channels, comes with the CS300 application software, 2 x CS1001 and CS1004/5 probe sets. The front panel ground is continuous via the USB ground to the PC.

Mixed Signal Oscilloscope

CS328AE - Ethernet oscilloscope, 10 bit, 100 MSa/s, 2 analog channels, 8 digital inputs, External Trigger, 4M samples storage for each of the 2 analog and 8 digital channels, comes with the CS300 application software, 2 x CS1001 and CS1004/5 probe sets. The ethernet interface is fully isolated from the PC.

Mixed Signal Oscilloscope

CS328A-FRA - USB 2.0 oscilloscope, 10 bit, 100 MSa/s, 2 analog channels, 8 digital inputs, External Trigger, 4M samples storage for each of the 2 analog and 8 digital channels, comes with the CS300 application software, 2 x CS1001 and CS1004/5 probe sets. The front panel ground is continuous via the USB ground to the PC.

Mixed Signal Oscilloscope

CS328A-XS - Fully configured USB 2.0 oscilloscope - 14 bit 100 MSa/s, 2 analog channels, 8 digital inputs, External Trigger, 8M samples storage for each of the 2 analog and 8 digital channels, CS700 Signal Generator (0-10MHz, Sine, Square, Triangle). Complete with the CS300 application software, 2 x CS1001 and CS1004/5 probe sets. The front panel ground is continuous via the USB ground to the PC.

Mixed Signal Oscilloscope

CS328A-XSi - Fully configured USB 2.0 oscilloscope - 14 bit 100 MSa/s, 2 analog channels, 8 digital inputs, External Trigger, 8M samples storage for each of the 2 analog and 8 digital channels, CS701 Isolated Signal Generator (0-65MHz, Sine Wave ONLY). This is the best USB connected scope for high performance FRA. Complete with the CS300 application software, 2 x CS1001 and CS1004/5 probe sets

Mixed Signal Oscilloscope

CS328A-XSE - Fully configured ethernet oscilloscope - 14 bit 100 MSa/s, 2 analog channels, 8 digital inputs, External Trigger, 8M samples storage for each of the 2 analog and 8 digital channels, CS700 Signal Generator (0-10MHz, Sine, Square, Triangle). Complete with the CS300 application software, 2 x CS1001 and CS1004/5 probe sets. The ethernet interface is fully isolated from the PC.

Mixed Signal Oscilloscope

CS328A-XSEi - Fully configured ethernet oscilloscope - 14 bit 100 MSa/s, 2 analog channels, 8 digital inputs, External Trigger, 8M samples storage for each of the 2 analog and 8 digital channels, CS701 isolated Signal Generator (0-65MHz, Sine Wave ONLY). This is our best isolated scope, and you can use it for high performance FRA. Complete with the CS300 application software, 2 x CS1001 and CS1004/5 probe sets. The ethernet interface is fully isolated from the PC.

Mixed Signal Oscilloscope

CS328A Mixed Signal oscilloscope USB or Ethernet, 2 analog channels, 100MS/s, 8 Digital Channels
CS328AE Ethernet oscilloscope, 10 bit, 100 MSa/s, 2 analog channels, 8 digital inputs, External Trigger, 4M samples storage for each of the 2 analog and 8 digital channels, comes with the CS300 application software, 2 x CS1001 and CS1004/5 probe sets. The ethernet interface is fully isolated from the PC.
CS328A-FRA USB 2.0 oscilloscope, 10 bit, 100 MSa/s, 2 analog channels, 8 digital inputs, External Trigger, 4M samples storage for each of the 2 analog and 8 digital channels, comes with the CS300 application software, 2 x CS1001 and CS1004/5 probe sets. The front panel ground is continuous via the USB ground to the PC.
CS328AE-XS Fully configured USB 2.0 oscilloscope - 14 bit 100 MSa/s, 2 analog channels, 8 digital inputs, External Trigger, 8M samples storage for each of the 2 analog and 8 digital channels, CS700 Signal Generator (0-10MHz, Sine, Square, Triangle). Complete with the CS300 application software, 2 x CS1001 and CS1004/5 probe sets. The front panel ground is continuous via the USB ground to the PC.
CS328AE-XSi Fully configured USB 2.0 oscilloscope - 14 bit 100 MSa/s, 2 analog channels, 8 digital inputs, External Trigger, 8M samples storage for each of the 2 analog and 8 digital channels, CS701 Isolated Signal Generator (0-65MHz, Sine Wave ONLY). This is the best USB connected scope for high performance FRA. Complete with the CS300 application software, 2 x CS1001 and CS1004/5 probe sets
CS328AE-XSE Fully configured ethernet oscilloscope - 14 bit 100 MSa/s, 2 analog channels, 8 digital inputs, External Trigger, 8M samples storage for each of the 2 analog and 8 digital channels, CS700 Signal Generator (0-10MHz, Sine, Square, Triangle). Complete with the CS300 application software, 2 x CS1001 and CS1004/5 probe sets. The ethernet interface is fully isolated from the PC.
CS328AE-XSEi Fully configured ethernet oscilloscope - 14 bit 100 MSa/s, 2 analog channels, 8 digital inputs, External Trigger, 8M samples storage for each of the 2 analog and 8 digital channels, CS701 isolated Signal Generator (0-65MHz, Sine Wave ONLY). This is our best isolated scope, and you can use it for high performance FRA. Complete with the CS300 application software, 2 x CS1001 and CS1004/5 probe sets. The ethernet interface is fully isolated from the PC.
