HS6-DIFF - USB3.0 Oscilloscope 250 MHz bandwidth, 1 GS/s, 14 bit

Main features

  • 1 GSamples per second sample rate USB 3.0 oscilloscope
  • 14-16 bit High Resolution, 256 times more amplitude resolution than an 8 bit oscilloscope
  • Lowest noise USB oscilloscope in the market
  • DC Accuracy of 0.25 % and 0.1 % typical

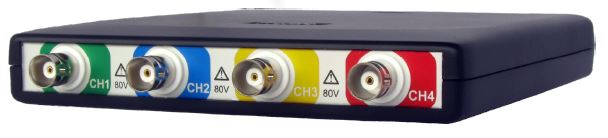

  • Differential inputs. Each input can be switched to single ended with SafeGround protection
  • SureConnect connection test on each channel
  • CMI interfacing to combining multiple instruments for fully synchronized measuring
  • Up to 250 MHz analog bandwidth
  • Switchable hardware-based bandwidth limiter of 150MHz, 100MHz and 50MHz
  • Highly accurate 1 ppm timebase
  • Super zoom up to 256 Million samples deep buffer memory
  • Spectrum analyzer with 32 million bins
  • High Performance Digital Multimeter (DMM)
  • Very fast 200 MSamples per second USB streaming Data logger
  • Protocol analyzer
  • Quick Setup fast to work with all types of measurements
  • I/O block to build your own measurement
  • An API and SDK to build your own software
  • SuperSpeed USB 3.0 connection
  • Free software and firmware updates
  • 3 years warranty, 5 years optional
Price request Datasheet Ask a question

The Handyscope HS6 DIFF is available in five different models with an extended memory option (XM), with SafeGround option (G) and with optional SureConnect connection test and resistance measurement (S). The Handyscope HS6 DIFF series USB 3.0 PC oscilloscope, fully packed with technology for all your advanced measurements now and in the future. This small, light and portable USB oscilloscope captures and displays significantly more signal to solve your measurement problem. Because of this, the Handyscope HS6 DIFF series is an ideal choice for demanding measurements.

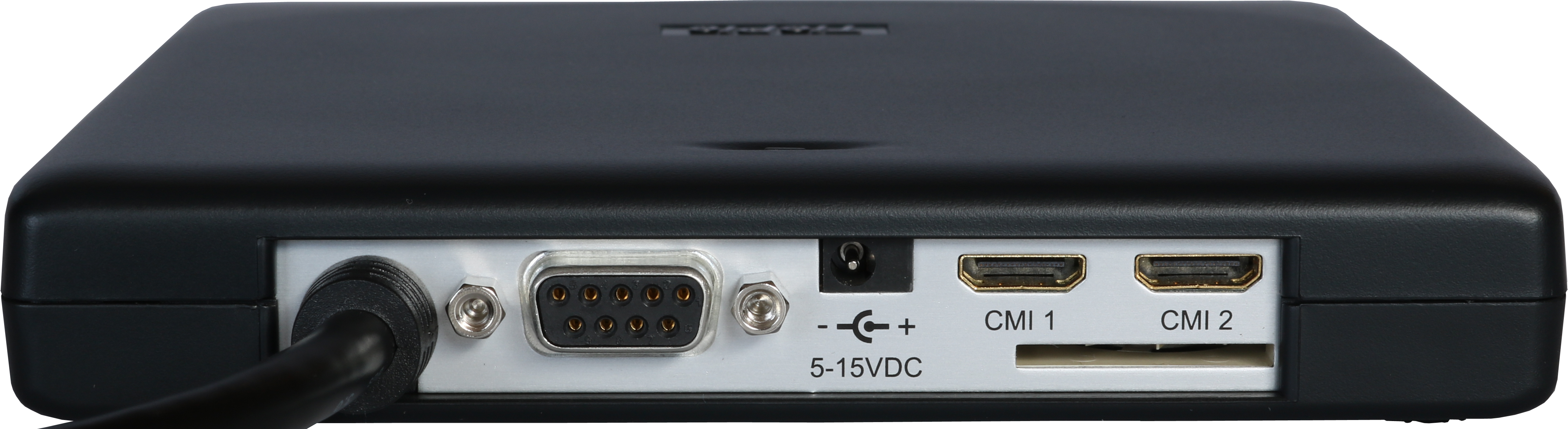

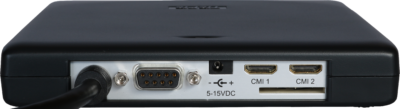

Expand your channels with the CMI interface and build a comprehensive measuring system in seconds with a lot more than 4 channels and also add AWG generators such as the Handyscope HS5.

SureConnect:

It is is the first oscilloscope to implement SureConnect technology. While measuring, the revolutionary SureConnect technology checks in real time whether a test probe is in physical and electrical contact with the test subject. SureConnect is the right option for every engineer for performing quick and perfect measurements. SureConnect is available as an option on the Handyscope HS6-Diff. Assuring a good connection of a probe with a test subject may not always be easy. The subject under measurement may be dirty, oxidized or an (invisible) protective layer may be present. Also, the test subject may be hidden, making visible contact confirmation impossible. As can be seen in the following video, capacitive coupling between test probe and test subject can result in measuring a distorted version of the actual signal, wrongly suggesting a connection. SureConnect however immediately shows you whether a good connection is present.

SafeGround:

SafeGround gives the possibility to use the oscilloscope inputs both as single ended and as differential. When SafeGround is active and you accidentally create a wrong connection that causes a short circuit, SafeGround will disconnect the ground of the input channel without damaging the oscilloscope or PC. You can therefore simply switch from a differential input to a single ended input without worrying if anything will damage because of a short circuit current. The Handyscope HS6 DIFF is the only oscilloscope in the world with this unique SafeGround protection. And as you all know, a connection mistake is easily made, which will now have no more strange and financial consequences because of SafeGround as the short circuit current is limited thanks to SafeGround.

HS6-DIFF-1000XM - 1 GS/s sampling rate, 256 Msamples per channel

Oscilloscope

HS6-DIFF-500XM - 500MS/s sampling rate, 256 Msamples per channel

Oscilloscope

HS6-DIFF-200XM - 200MS/s sampling rate, 256 Msamples per channel

Oscilloscope

HS6-DIFF-100XM - 100MS/s sampling rate, 256 Msamples per channel

Oscilloscope

HS6-DIFF-50XM - 50MS/s sampling rate, 256 Msamples per channel

Oscilloscope

HS6-DIFF-1000XMS - 1GS/s sampling rate, 256 Msamples per channel, Sureconnect

Oscilloscope

HS6-DIFF-500XMS - 500MS/s sampling rate, 256 Msamples per channel, Sureconnect

Oscilloscope

HS6-DIFF-200XMS - 200MS/s sampling rate, 256 Msamples per channel, Sureconnect

Oscilloscope

HS6-DIFF-100XMS - 100MS/s sampling rate, 256 Msamples per channel, Sureconnect

Oscilloscope

HS6-DIFF-50XMS - 50MS/s sampling rate, 256 Msamples per channel, Sureconnect

Oscilloscope

HS6-DIFF-1000XMG - 1 GS/s sampling rate, 256 Msamples per channel, SafeGround

Oscilloscope

HS6-DIFF-500XMG - 500MS/s sampling rate, 256 Msamples per channel, SafeGround

Oscilloscope

HS6- DIFF-200XMG - 200MS/s sampling rate, 256 Msamples per channel, SafeGround

Oscilloscope

HS6-DIFF-100XMG - 100MS/s sampling rate, 256 Msamples per channel, SafeGround

Oscilloscope

HS6-DIFF-50XMG - 50MS/s sampling rate, 256 Msamples per channel, SafeGround

Oscilloscope

HS6-DIFF USB3.0 Oscilloscope 250 MHz bandwidth, 1 GS/s, 14 bit
HS6-DIFF-1000XM 1 GS/s sampling rate, 256 Msamples per channel
HS6-DIFF-500XM 500MS/s sampling rate, 256 Msamples per channel
HS6-DIFF-200XM 200MS/s sampling rate, 256 Msamples per channel
HS6-DIFF-100XM 100MS/s sampling rate, 256 Msamples per channel
HS6-DIFF-50XM 50MS/s sampling rate, 256 Msamples per channel
HS6-DIFF-1000XMS 1GS/s sampling rate, 256 Msamples per channel, Sureconnect
HS6-DIFF-500XMS 500MS/s sampling rate, 256 Msamples per channel, Sureconnect
HS6-DIFF-200XMS 200MS/s sampling rate, 256 Msamples per channel, Sureconnect
HS6-DIFF-100XMS 100MS/s sampling rate, 256 Msamples per channel, Sureconnect
HS6-DIFF-50XMS 50MS/s sampling rate, 256 Msamples per channel, Sureconnect
HS6-DIFF-1000XMG 1 GS/s sampling rate, 256 Msamples per channel, SafeGround
HS6-DIFF-500XMG 500MS/s sampling rate, 256 Msamples per channel, SafeGround
HS6-DIFF-200XMG 200MS/s sampling rate, 256 Msamples per channel, SafeGround
HS6-DIFF-100XMG 100MS/s sampling rate, 256 Msamples per channel, SafeGround
HS6-DIFF-50XMG 50MS/s sampling rate, 256 Msamples per channel, SafeGround
