HS4-DIFF - USB Oscilloscope 4-Ch Differential, 12-bit, 50MS/s

Main features

  • 4 Input Channels Differential
  • up to 50 MS/s A/D Converter per Channel
  • 128 kS/channel
  • USB 2.0 or USB 1.1 format
  • Powerful Standalone Application provided
    • Storage Oscilloscope
    • Spectrum Analyzer
    • Transient Recorder
    • Multimeter
Clear
Price request Datasheet

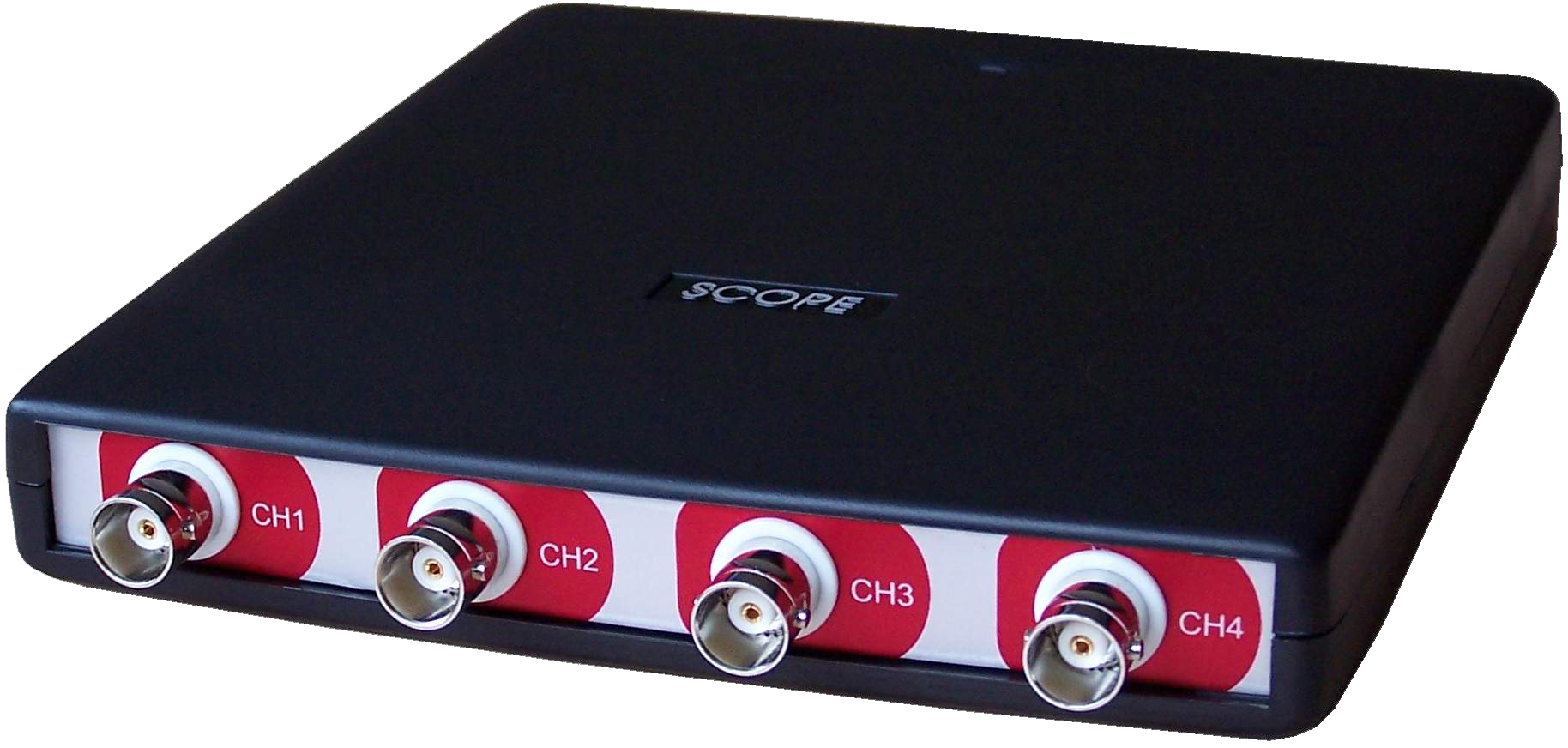

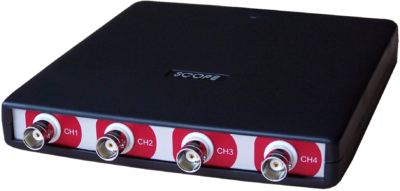

The HS4-DIFF is the latest member of the USB Oscilloscopes family. It gives you all features of the HS4. But, for customers who want to extend their measuring capabilities even further, this powerful computer controlled measuring instrument features four isolated differential input channels. This makes it the ideal instrument to perform measurements in high voltage circuits, amplifiers, switch mode power supplies, power inverters etc. The HS4-DIFF has just like it’s sibling the four main measuring instruments: a Multimeter, an Oscilloscope, a Spectrum analyzer and a Transient recorder.

The HS4-DIFF features a user selectable 12 bit, 14 bit or 16 bit resolution (14 bit effective, SNR 95 dB), 200 mV-80 V full scale input range, 128K samples record length per channel and a sampling frequency up to 50 MHz on all four channels. Connected to the fast USB 2.0 interface, the HS4-DIFF doesn’t require an external power supply, once again fully supporting the “Plug in and measure” principle.

The universal software that is delivered with the HS4-DIFF turns your PC into a storage oscilloscope, a spectrum analyzer, a voltmeter and a transient recorder. An intelligent auto setup allows the inexperienced user to perform measurements immediately. The software allows you to save instrument settings on disk. Later these setting files can be recalled, reducing the setup time of your instrument to an absolute minimum.

HS4-DIFF-5 - Oscilloscope 4CH Differential (5 MHz version) USB

Oscilloscope

HS4-DIFF-10 - Oscilloscope 4CH Differential (10 MHz version) USB

Oscilloscope

HS4-DIFF-25 - Oscilloscope 4CH Differential (25 MHz version) USB

Oscilloscope

HS4-DIFF-50 - Oscilloscope 4CH Differential (50 MHz version) USB

Oscilloscope

HS4-DIFF USB Oscilloscope 4-Ch Differential, 12-bit, 50MS/s
HS4-DIFF-5Oscilloscope 4CH Differential (5 MHz version) USB
HS4-DIFF-10Oscilloscope 4CH Differential (10 MHz version) USB
HS4-DIFF-25Oscilloscope 4CH Differential (25 MHz version) USB
HS4-DIFF-50Oscilloscope 4CH Differential (50 MHz version) USB

SI-9002 - Oscilloscope Differential probe SI-9002 - Oscilloscope Differential probe

The Differential probe SI-9002 extends the measurement power of oscilloscopes to power semiconductor circuits. This Differential Probe provides any general oscilloscope with a high voltage differential input.

TP-ACC20 - Accelerometer TP-ACC20 - Accelerometer

The Accelerometer TP-ACC20 is a dual axis accelerometer combined with a manual trigger button, designed to be used with the Handyscope HS3, Handyscope HS4, Handyscope HS4 DIFF (order ...

TP-C1812B - Measure lead TP-C1812B - Measure lead

The Measure lead TP-C1812B is a low noise differential measure lead designed to be used with the Handyscope HS6 DIFF, Handyscope HS4 DIFF. This 2 meter long measure ...

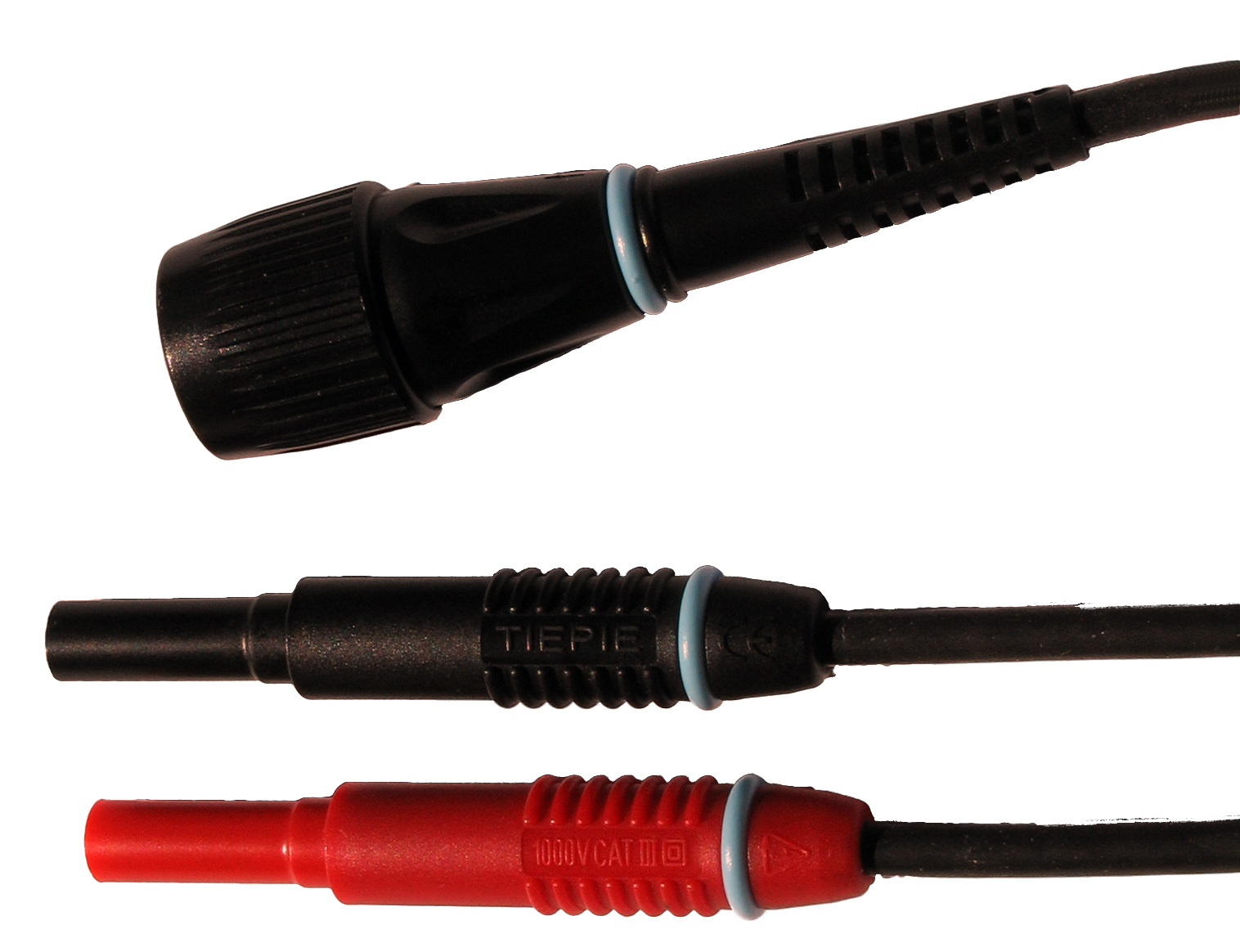

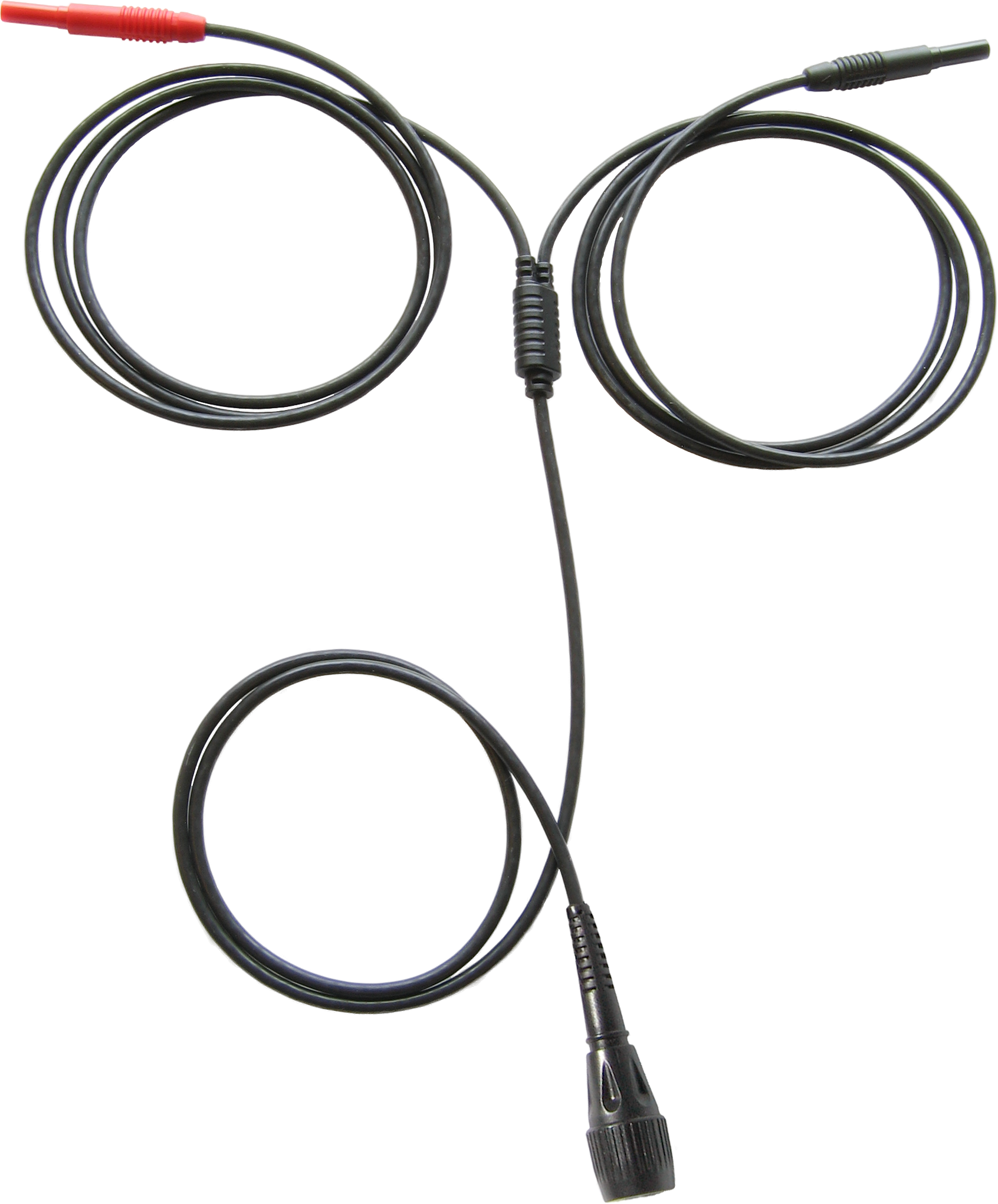

TP-C812B - Measure lead TP-C812B - Measure lead

The Measure lead TP-C812B is a low noise differential measure lead designed to be used with the Handyscope HS6 DIFF, Handyscope HS4 DIFF. This 2 meter long measure ...

TP-CC400 - Current Clamp TP-CC400 - Current Clamp

The Current clamp TP-CC400 is a current clamp that will allow your measuring instrument to measure electrical currents up to 400 A AC/DC, with a frequency response up ...

TP-CC600 - Current Clamp TP-CC600 - Current Clamp

The Current clamp TP-CC400 is a current clamp that will allow your measuring instrument to measure electrical currents up to 600 A AC/DC, with a frequency response up ...

TP-CC80 - Current Clamp TP-CC80 - Current Clamp

The Current clamp TP-CC80 is a current clamp that will allow your measuring instrument to measure electrical currents up to 80 A AC/DC, with a frequency response up ...

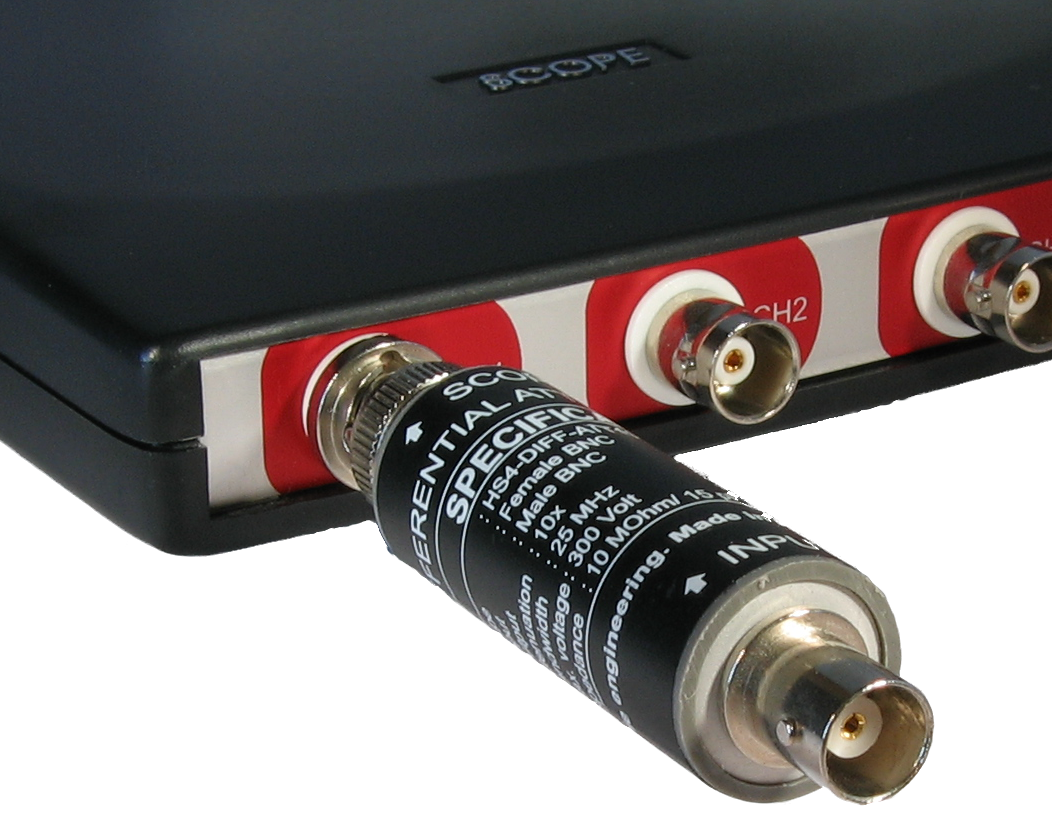

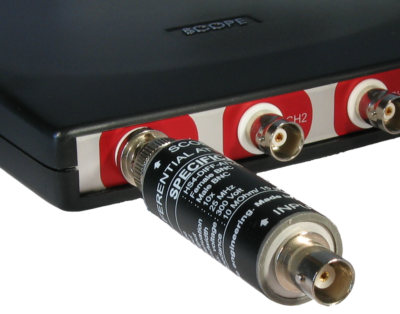

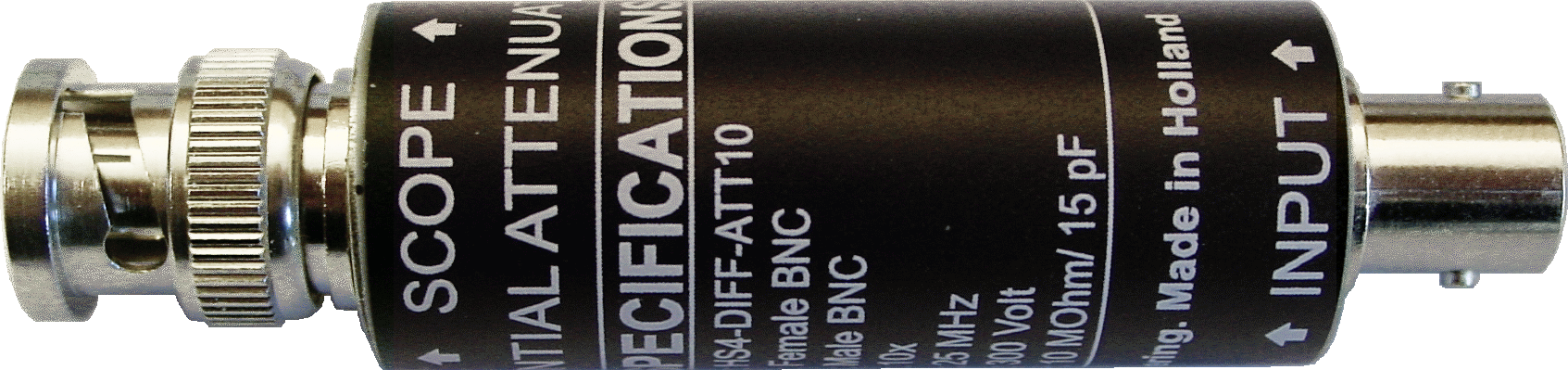

TP-DA10 - Differential attenuator TP-DA10 - Differential attenuator

The Differential attenuator TP-DA10 is a differential 1:10 attenuator, specially designed to be used with the Handyscope HS6 DIFF. Due to the differential inputs of these instruments, a ...

TP-RP-HS - Rubber protector TP-RP-HS - Rubber protector

With a Rubber protector TP-RP-HS, your Handyscope series USB oscilloscope is protected against damage by mechanical shocks. The rubber helps absorbing shocks and prevents your instrument from sliding. ...
