WS5 - Wifi Oscilloscope 2-Ch, 14-bit,  AWG 1-Ch, 14-bit

Main features

  • Oscilloscope / Spectrum analyzer / Voltmeter / Data logger
    • 8, 12, 14 & 16-Bits resolution
    • 500 MS/s sampling rate
    • 250 MHz bandwidth
    • 32 MSamples memory per channel
    • 0.25 % DC vertical accuracy
    • 1 ppm time base accuracy
    • 20 MSa/s, 14 bit continuous streaming
  • Arbitrary Waveform Generator
    • 1 µHz – 40 MHz sine, square, triangular and arbitrary waves
    • 240 MS/sec 14 bit, 64 MSamples arbitrary waves.
    • +/- 12 Volt output (24 V peak to peak)
    • 1 ppm time base accuracy
    • Spurious (non harmonic) < -85 dB
    • 8 ns rise and fall time
Price request Datasheet Ask a question

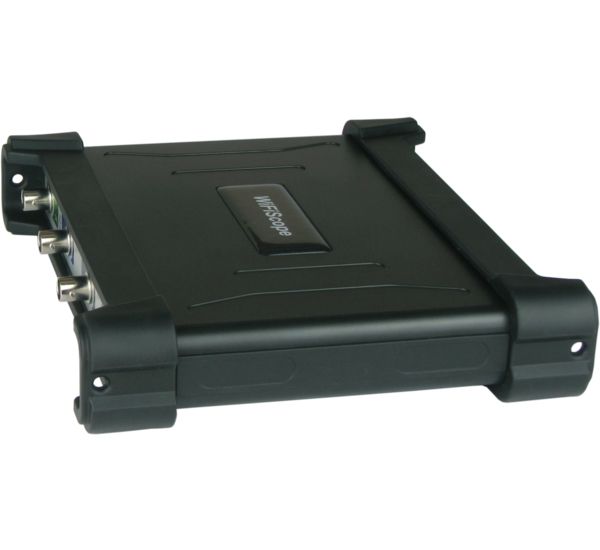

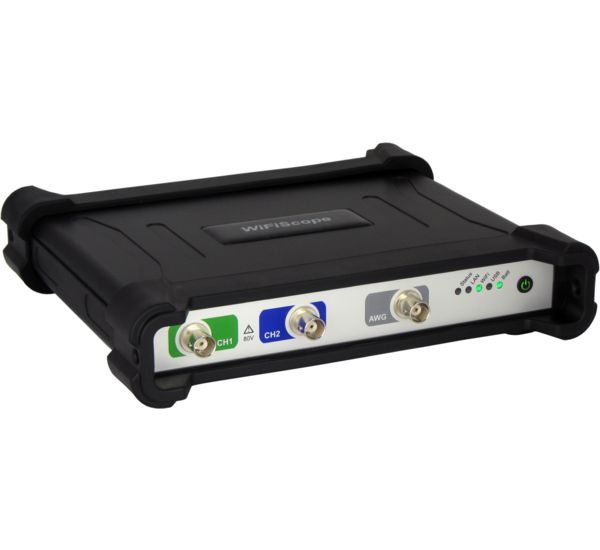

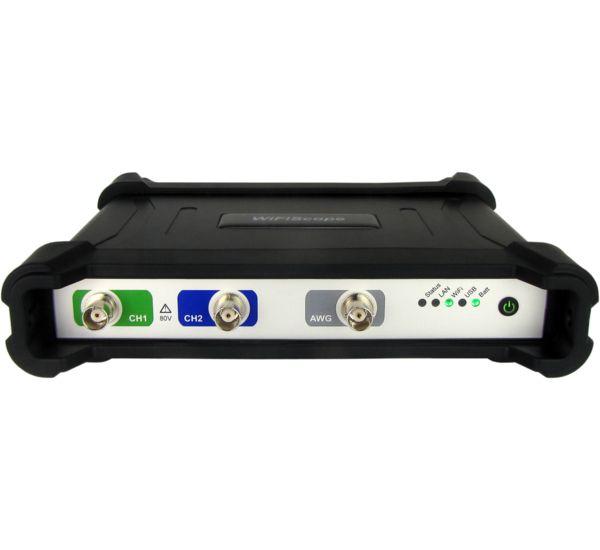

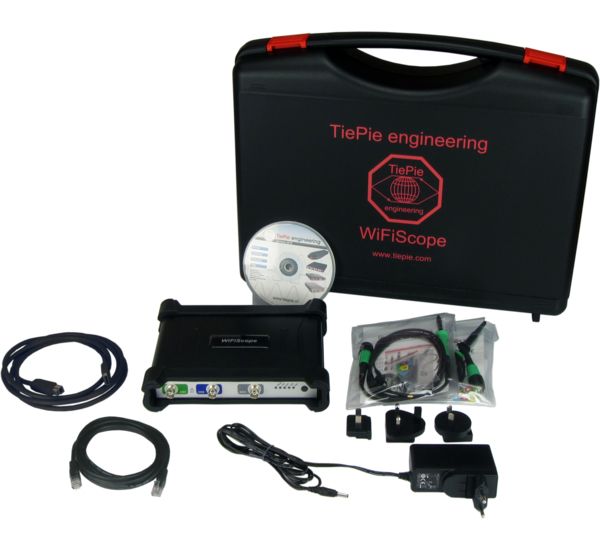

This WifiScope WS5 combines a two channel oscilloscope / spectrum analyzer / voltmeter / data logger with an one channel Arbitrary Waveform Generator.

This powerful high speed WiFi oscilloscope combines fast sampling up to 500 MSa/s with high resolutions of 12, 14 and 16 bit, a large memory of 64 MSamples and an extremely accurate built-in 40 MHz 14 bit Constant Data Size (CDS) arbitrary waveform generator with 24 V peak to peak output, generating true form signals. The oscilloscope supports continuous streaming measurements up to 20 MSa/s and can be synchronized with other oscilloscopes using the CMI interface to form a multi channel combined instrument with synchronized time base. The CMI interface is available by default on the WiFiScope WS5. Optionally, the WiFiScope WS5 can be delivered with SureConnect connection test and resistance measurement on each channel.

The WiFiScope WS5 measures with high resolutions of 14 and 16 bit. A signal measured with the WiFiScope WS5 therefore has 256 times more resolution than most standalone oscilloscopes, which usually have a low resolution of 8 or 9 bit. The high resolution of the WiFiScope WS5 precision oscilloscope allows for measuring signals with more accuracy, because the quantization error is much lower.

When measuring at high sample rates, a long record length/large memory is necessary to be able to record a complete signal in the acquisition buffer. Where most oscilloscopes have 2.5 kSamples or 100 kSamples memory, the WiFiScope WS5 has 32 MSamples memory per channel. This gives the user 300 to 10000 times more memory. An advantage of a large memory is that once-only fast phenomena can be captured completely. For example complete serial communications, like CAN bus signals, can be measured all in one record to be reviewed and analyzed afterwards.

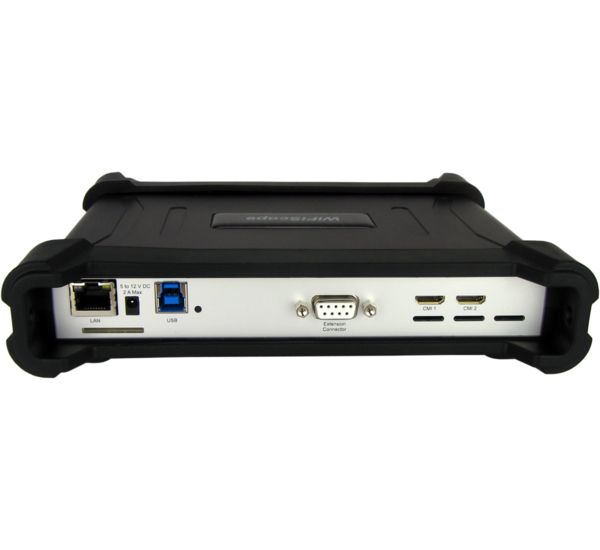

The WiFiScope WS5 is equipped with a sophisticated CMI synchronization bus, allowing to connect multiple WiFiScope WS5s to each other by means of coupling cables, to use them as a combined instrument. All instruments will measure at the same sample frequency (0 ppm deviation!). Apart from a synchronization bus, the CMI also contains a trigger bus and a detection bus. The maximum number of instruments is only limited by the number available USB ports.

The WiFiScope WS5 is the first High Resolution WiFi oscilloscope with built-in 30 MHz low distortion function generator. The built-in Arbitrary Waveform Generator uses CDS signal synthesis technology, developed by TiePie engineering, resulting in the best signal fidelity in its class, generating the true form of your signals. With spurious distortion as low as -85 dB at 100 kHz signal frequency, a very flat amplitude spectrum and a rise time of 8 ns, the low distortion function generator creates signals that approach perfection.

WS5-540XM - WifiScope 500 MS/s sampling rate, 40 MHz AWG, 64 Msamples per channel

WifiScope

WS5-530XM - WifiScope 500 MS/s sampling rate, 30 MHz AWG, 64 Msamples per channel

WifiScope

WS5-220XM - WifiScope 200 MS/s sampling rate, 20 MHz AWG, 64 Msamples per channel

WifiScope

WS5-540XMS - WifiScope 500 MS/s sampling rate, 40 MHz AWG, 64 Msamples per channel, Sureconnect

WifiScope

WS5-530XMS - WifiScope 500 MS/s sampling rate, 30 MHz AWG, 64 Msamples per channel, Sureconnect

WifiScope

WS5-220XMS - WifiScope 200 MS/s sampling rate, 20 MHz AWG, 64 Msamples per channel, Sureconnect

WifiScope

WS5 Wifi Oscilloscope 2-Ch, 14-bit,  AWG 1-Ch, 14-bit
WS5-540XM WifiScope 500 MS/s sampling rate, 40 MHz AWG, 64 Msamples per channel
WS5-530XM WifiScope 500 MS/s sampling rate, 30 MHz AWG, 64 Msamples per channel
WS5-220XM WifiScope 200 MS/s sampling rate, 20 MHz AWG, 64 Msamples per channel
WS5-540XMS WifiScope 500 MS/s sampling rate, 40 MHz AWG, 64 Msamples per channel, Sureconnect
WS5-530XMS WifiScope 500 MS/s sampling rate, 30 MHz AWG, 64 Msamples per channel, Sureconnect
WS5-220XMS WifiScope 200 MS/s sampling rate, 20 MHz AWG, 64 Msamples per channel, Sureconnect
