WS6 - Wifi Oscilloscope 250 MHz bandwidth, 1 GS/s, 14 bit

Main features

  • 1 GSamples per second sample rate
  • Wifi, LAN and USB 3.0 connectivity
  • 8, 12, 14 & 16 bit High Resolution
  • DC Accuracy of 0.25 % and 0.1 % typical
  • Single ended
  • SureConnect connection test on each channel
  • CMI interfacing to combining multiple instruments for fully synchronized measuring
  • Up to 250 MHz analog bandwidth
  • Switchable hardware-based bandwidth limiter of 150MHz, 100MHz and 50MHz
  • Highly accurate 1 ppm timebase
  • Super zoom up to 256 Million samples deep buffer memory
  • Spectrum analyzer with 32 million bins
  • High Performance Digital Multimeter (DMM)
  • Very fast 200 MSamples per second USB streaming Data logger
  • Protocol analyzer
  • Quick Setup fast to work with all types of measurements
  • I/O block to build your own measurement
  • An API and SDK to build your own software
  • Free software and firmware updates
  • 3 years warranty, 5 years optional
Clear
Price request Datasheet

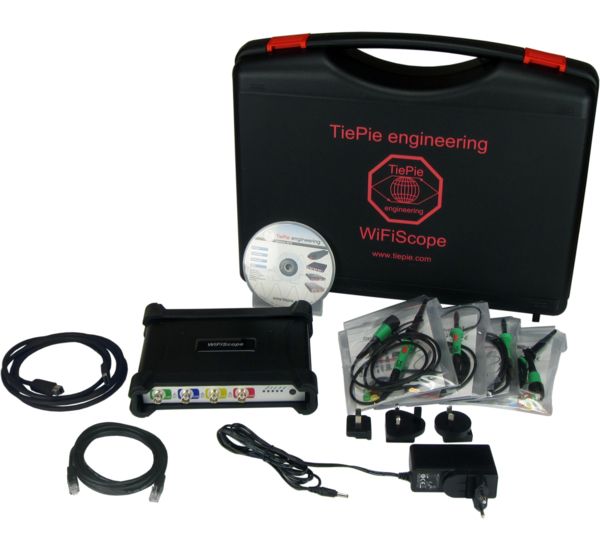

This powerful high speed WiFi oscilloscope combines fast sampling up to 1 GSa/s with high resolutions of 12, 14 and 16 bit and a large memory of 64 MSamples on all four channels. The oscilloscope supports continuous streaming measurements up to 200 MSa/s and can be synchronized with other oscilloscopes using the CMI interface to form a multi channel combined instrument with synchronized time base. The CMI interface is available by default on the WiFiScope WS6. Optionally, the WiFiScope WS6 can be delivered with SureConnect connection on each channel.

The flexibility and quality that the WiFiScope WS6 offers is unparalleled by any other oscilloscope in its class.

The WiFiScope WS6 measures with high resolutions of 14 and 16 bit. A signal measured with the WiFiScope WS6 therefore has 256 times more resolution than most standalone oscilloscopes, which usually have a low resolution of 8 or 9 bit. The high resolution of the WiFiScope WS6 precision oscilloscope allows for measuring signals with more accuracy, because the quantization error is much lower.

When measuring at high sample rates, a long record length/large memory is necessary to be able to record a complete signal in the acquisition buffer. Where most oscilloscopes have 2.5 kSamples or 100 kSamples memory, the WiFiScope WS6 has up to 256 MSamples memory per channel, depending on the selected resolution and the number of active channels. When measuring at 14 bit resolution and all four channels, the available memory is 32 MSamples per channel. This gives the user 300 to 100000 times more memory. An advantage of a large memory is that once-only fast phenomena can be captured accurately or complete serial communication signal blocks can be measured all at once. For example complete serial communications, like CAN bus signals, can be measured all in one record to be reviewed and analyzed afterwards.

The WiFiScope WS6 is equipped with a sophisticated CMI synchronization bus, allowing to connect multiple WiFiScope WS6s to each other by means of coupling cables, to use them as a combined instrument. All instruments will measure at the same sample frequency (0 ppm deviation!). Apart from a synchronization bus, the CMI also contains a trigger bus and a detection bus. The maximum number of instruments is only limited by the number available USB ports.

WS6-1000XM - 1 GS/s sampling rate, 256 Msamples per channel

WifiScope

WS6-500XM - 500MS/s sampling rate, 256 Msamples per channel

WifiScope

WS6-200XM - 200MS/s sampling rate, 256 Msamples per channel

WifiScope

WS6-1000XMS - 1GS/s sampling rate, 256 Msamples per channel, Sureconnect

WifiScope

WS6-500XMS - 500MS/s sampling rate, 256 Msamples per channel, Sureconnect

WifiScope

WS6F-200XMS - 200MS/s sampling rate, 256 Msamples per channel, Sureconnect

WifiScope

WS6Wifi Oscilloscope 250 MHz bandwidth, 1 GS/s, 14 bit
WS6-1000XM1 GS/s sampling rate, 256 Msamples per channel
WS6-500XM500MS/s sampling rate, 256 Msamples per channel
WS6-200XM200MS/s sampling rate, 256 Msamples per channel
WS6-1000XMS1GS/s sampling rate, 256 Msamples per channel, Sureconnect
WS6-500XMS500MS/s sampling rate, 256 Msamples per channel, Sureconnect
WS6-200XMS200MS/s sampling rate, 256 Msamples per channel, Sureconnect
