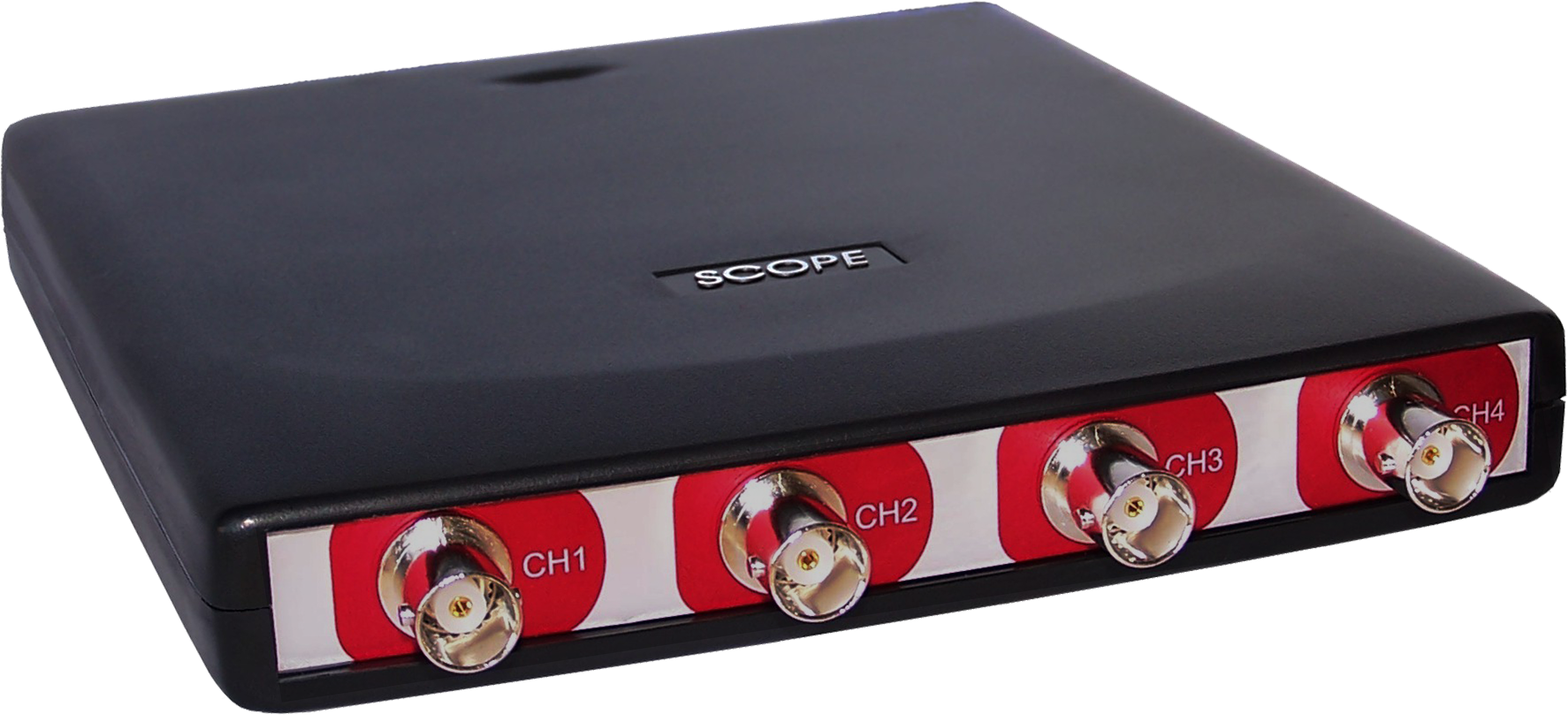

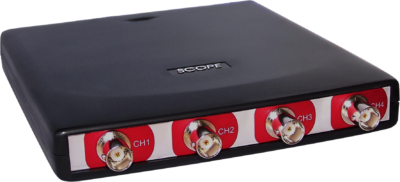

HS4 - USB Oscilloscope 4 channels

Main features

  • 4 Input Channels
  • up to 50 MS/s A/D Converter per Channel
  • 128 kS/channel
  • USB 2.0 or USB 1.1 format
  • Powerful Standalone Application provided
    • Storage Oscilloscope
    • Spectrum Analyzer
    • Transient Recorder
    • Multimeter
Clear
Price request Datasheet

The HS4 is a powerful computer controlled measuring instrument that consists of four measuring instruments: a Multimeter, Oscilloscope, Spectrum analyzer and Transient recorder. This new powerful and compact measuring instrument can solve almost every measurement problem.

The HS4 features a user selectable 12 bit, 14 bit or 16 bit resolution (14 bit effective, SNR 95 dB), 200 mV – 80 V full scale input range, 128 Ksamples record length per channel and a sampling frequency up to 50 MHz on four channels. Connected to the fast USB 2.0, the HS4 doesn’t require an external power supply, therefore the HS4 easily complies to “Plug in and measure”.

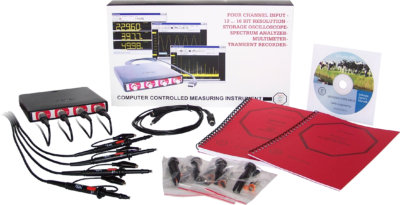

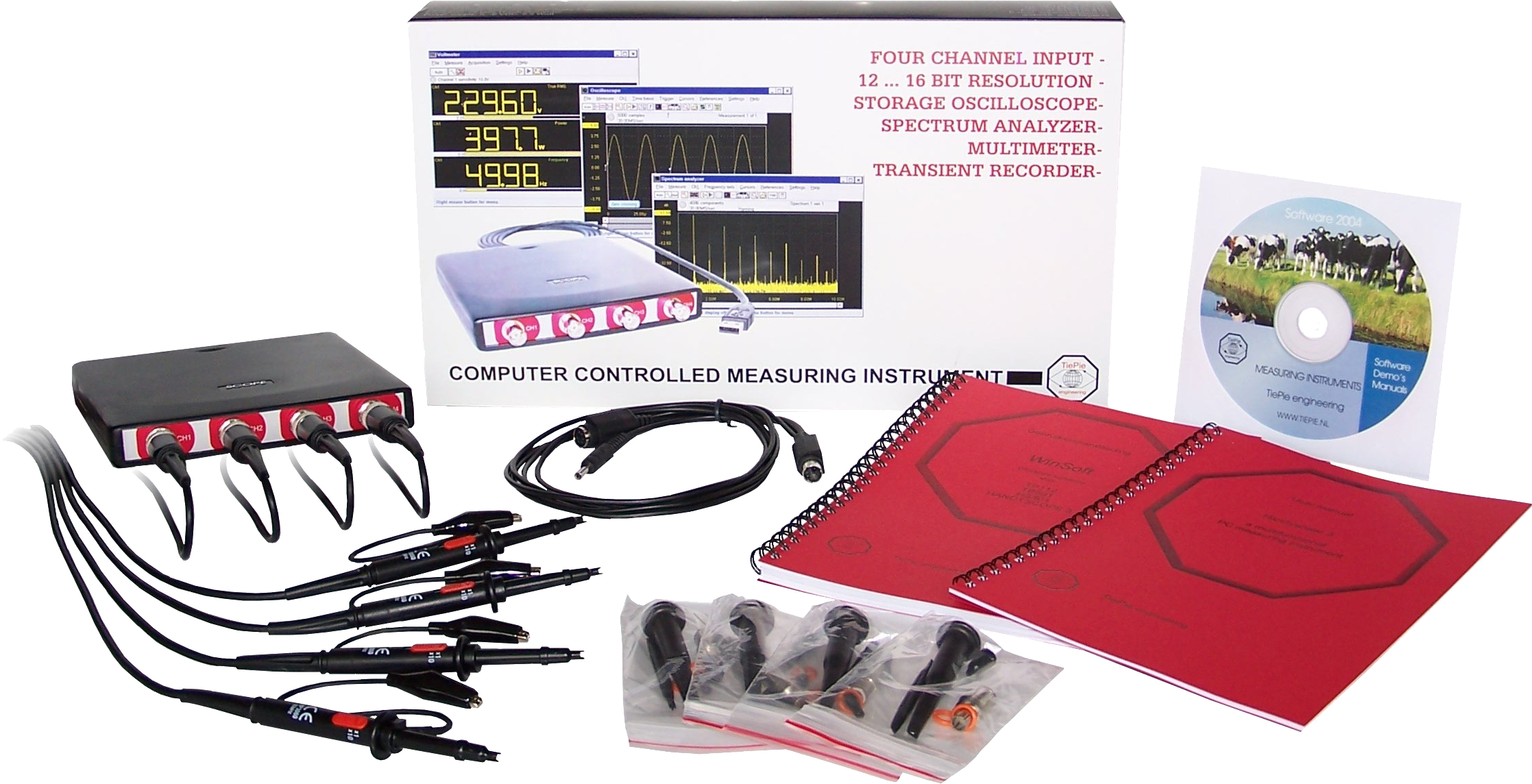

The universal software that is delivered with the HS4 turns your PC into a storage oscilloscope, a spectrum analyzer, a voltmeter and a transient recorder. An intelligent auto setup allows the inexperienced user to perform measurements immediately. The software allows you to save instrument settings on disk. Later these setting files can be recalled, reducing the setup time of your instrument to an absolute minimum.

HS4-5 - Oscilloscope 4CH (5 MHz version) USB

Oscilloscope

HS4-10 - Oscilloscope 4CH (10 MHz version) USB

Oscilloscope

HS4-25 - Oscilloscope 4CH (25 MHz version) USB

Oscilloscope

HS4-50 - Oscilloscope 4CH (50 MHz version) USB

Oscilloscope

HS4-CON2-TRIG-BNC - Master/slave Cable with external Trigger - 2 Slots

Oscilloscope

HS4-CON4-TRIG-BNC - Master/slave Cable with external Trigger - 4 Slots

Oscilloscope

HS4 USB Oscilloscope 4 channels
HS4-5Oscilloscope 4CH (5 MHz version) USB
HS4-10Oscilloscope 4CH (10 MHz version) USB
HS4-25Oscilloscope 4CH (25 MHz version) USB
HS4-50Oscilloscope 4CH (50 MHz version) USB
HS4-CON2-TRIG-BNCMaster/slave Cable with external Trigger - 2 Slots
HS4-CON4-TRIG-BNCMaster/slave Cable with external Trigger - 4 Slots
