DSCA31 - Analog Voltage Input Signal Conditioners, Narrow Bandwidth

Main features

  • Accepts volt Level Signals
  • Industry Standard Output of either 0 to 10V/±10V, 0 to 20mA, or 4 to 20mA
  • 1500Vrms Transformer Isolation
  • ANSI/IEEE C37.90.1 Transient Protection
  • Input Protected to 240VAC Continuous
  • True 3-Way Isolation
  • Wide Range of Supply Voltage
  • 160dB CMR
  • 85dB NMR at 60Hz, 80dB at 50Hz
  • ±0.03% Accuracy
  • ±0.01% Linearity
  • Easily Mounts on Standard DIN Rail
  • C-UL-US Listed
  • CE and ATEX Compliant
Clear
Price request Datasheet

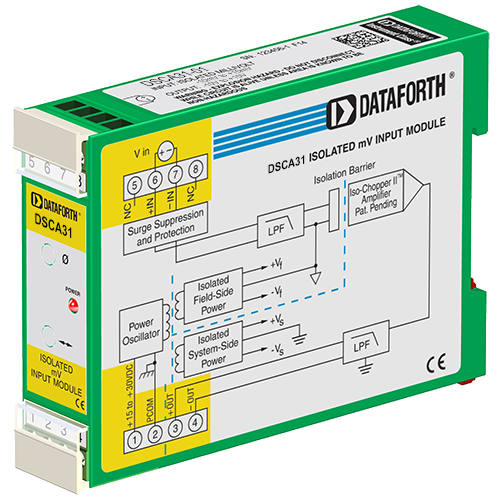

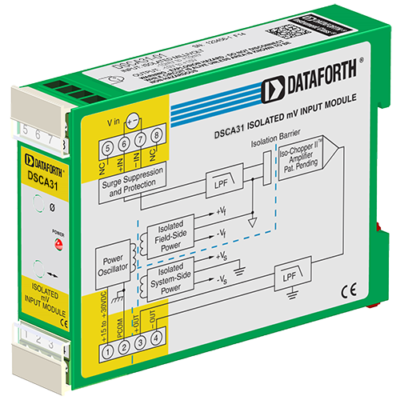

Each DSCA31 voltage input module provides a single channel of analog input which is filtered, isolated, amplified, and converted to a high-level voltage output. Signal filtering is accomplished with a five-pole filter which provides 85dB of normal-mode rejection at 60Hz and 80dB at 50Hz. An anti-aliasing npole is located on the field side of the isolation barrier, and the other four poles are on the system side. After the initial field-side filtering, the input signal is chopped by a proprietary chopper circuit. Isolation is provided by transformer coupling, again using a proprietary technique to suppress transmission of common mode spikes or surges.

Module output is either voltage or current. For current output models a dedicated loop supply is provided at terminal 3 (+OUT) with loop return located at terminal 4 (-OUT). The system-side load may be either floating or grounded.

Special input circuits provide protection against accidental connection of power-line voltages up to 240VAC and against transient events as defined by ANSI/IEEE C37.90.1. Protection circuits are also present on the signal output and power input terminals to guard against transient events and power reversal. Signal and power lines are secured to the module using screw terminals which are in pluggable terminal blocks for ease of system assembly and reconfiguration.

The modules have excellent stability over time and do not require recalibration, however, zero and span settings are adjustable up to ±5% to accommodate situations where fine-tuning is desired. The adjustments are made using potentiometers located under the front panel label and are non-interactive for ease of use.

DSCA31-01 - Input Range: -1 to +1 V Output Range: -10 to +10 V

DSCA

DSCA31-02 - Input Range: -5 to +5 V Output Range: -10 to +10 V

DSCA

DSCA31-03 - Input Range: -10 to +10 V Output Range: -10 to +10 V

DSCA

DSCA31-04 - Input Range: -1 to +1 V Output Range: 0 to +10 V

DSCA

DSCA31-04C - Input Range: -1 to +1 V Output Range: 4 to 20 mA

DSCA

DSCA31-04E - Input Range: -1 to +1 V Output Range: 0 to 20 mA

DSCA

DSCA31-05 - Input Range: -5 to +5 V Output Range: 0 to +10 V

DSCA

DSCA31-05C - Input Range: -5 to +5 V Output Range: 4 to 20 mA

DSCA

DSCA31-05E - Input Range: -5 to +5 V Output Range: 0 to 20 mA

DSCA

DSCA31-06 - Input Range: -10 to +10 V Output Range: 0 to +10 V

DSCA

DSCA31-06C - Input Range: -10 to +10 V Output Range: 4 to 20 mA

DSCA

DSCA31-06E - Input Range: -10 to +10 V Output Range: 0 to 20 mA

DSCA

DSCA31-07 - Input Range: -20 to +20 V Output Range: -10 to +10 V

DSCA

DSCA31-08 - Input Range: -20 to +20 V Output Range: 0 to +10 V

DSCA

DSCA31-08C - Input Range: -20 to +20 V Output Range: 4 to 20 mA

DSCA

DSCA31-08E - Input Range: -20 to +20 V Output Range: 0 to 20 mA

DSCA

DSCA31-09 - Input Range: -40 to +40 V Output Range: -10 to +10 V

DSCA

DSCA31-10 - Input Range: -40 to +40 V Output Range: 0 to +10 V

DSCA

DSCA31-10C - Input Range: -40 to +40 V Output Range: 4 to 20 mA

DSCA

DSCA31-10E - Input Range: -40 to +40 V Output Range: 0 to 20 mA

DSCA

DSCA31-11 - Input Range: 0 to +1 V Output Range: 0 to +10 V

DSCA

DSCA31-11C - Input Range: 0 to +1 V Output Range: 4 to 20 mA

DSCA

DSCA31-11E - Input Range: 0 to +1 V Output Range: 0 to 20 mA

DSCA

DSCA31-12 - Input Range: 0 to +5V Output Range: 0 to +10 V

DSCA

DSCA31-12C - Input Range: 0 to +5V Output Range: 4 to 20 mA

DSCA

DSCA31-12E - Input Range: 0 to +5V Output Range: 0 to 20 mA

DSCA

DSCA31-13 - Input Range: 0 to +10 V Output Range: 0 to +10 V

DSCA

DSCA31-13C - Input Range: 0 to +10 V Output Range: 4 to 20 mA

DSCA

DSCA31-13E - Input Range: 0 to +10 V Output Range: 0 to 20 mA

DSCA

DSCA31-14 - Input Range: 0 to +20 V Output Range: 0 to +10 V

DSCA

DSCA31-14C - Input Range: 0 to +20 V Output Range: 4 to 20 mA

DSCA

DSCA31-14E - Input Range: 0 to +20 V Output Range: 0 to 20 mA

DSCA

DSCA31-15 - Input Range: 0 to +40 V Output Range: 0 to +10 V

DSCA

DSCA31-15C - Input Range: 0 to +40 V Output Range: 4 to 20 mA

DSCA

DSCA31-15E - Input Range: 0 to +40 V Output Range: 0 to 20 mA

DSCA

DSCA31Analog Voltage Input Signal Conditioners, Narrow Bandwidth
DSCA31-01Input Range: -1 to +1 V Output Range: -10 to +10 V
DSCA31-02Input Range: -5 to +5 V Output Range: -10 to +10 V
DSCA31-03Input Range: -10 to +10 V Output Range: -10 to +10 V
DSCA31-04Input Range: -1 to +1 V Output Range: 0 to +10 V
DSCA31-04CInput Range: -1 to +1 V Output Range: 4 to 20 mA
DSCA31-04EInput Range: -1 to +1 V Output Range: 0 to 20 mA
DSCA31-05Input Range: -5 to +5 V Output Range: 0 to +10 V
DSCA31-05CInput Range: -5 to +5 V Output Range: 4 to 20 mA
DSCA31-05EInput Range: -5 to +5 V Output Range: 0 to 20 mA
DSCA31-06Input Range: -10 to +10 V Output Range: 0 to +10 V
DSCA31-06CInput Range: -10 to +10 V Output Range: 4 to 20 mA
DSCA31-06EInput Range: -10 to +10 V Output Range: 0 to 20 mA
DSCA31-07Input Range: -20 to +20 V Output Range: -10 to +10 V
DSCA31-08Input Range: -20 to +20 V Output Range: 0 to +10 V
DSCA31-08CInput Range: -20 to +20 V Output Range: 4 to 20 mA
DSCA31-08EInput Range: -20 to +20 V Output Range: 0 to 20 mA
DSCA31-09Input Range: -40 to +40 V Output Range: -10 to +10 V
DSCA31-10Input Range: -40 to +40 V Output Range: 0 to +10 V
DSCA31-10CInput Range: -40 to +40 V Output Range: 4 to 20 mA
DSCA31-10EInput Range: -40 to +40 V Output Range: 0 to 20 mA
DSCA31-11Input Range: 0 to +1 V Output Range: 0 to +10 V
DSCA31-11CInput Range: 0 to +1 V Output Range: 4 to 20 mA
DSCA31-11EInput Range: 0 to +1 V Output Range: 0 to 20 mA
DSCA31-12Input Range: 0 to +5V Output Range: 0 to +10 V
DSCA31-12CInput Range: 0 to +5V Output Range: 4 to 20 mA
DSCA31-12EInput Range: 0 to +5V Output Range: 0 to 20 mA
DSCA31-13Input Range: 0 to +10 V Output Range: 0 to +10 V
DSCA31-13CInput Range: 0 to +10 V Output Range: 4 to 20 mA
DSCA31-13EInput Range: 0 to +10 V Output Range: 0 to 20 mA
DSCA31-14Input Range: 0 to +20 V Output Range: 0 to +10 V
DSCA31-14CInput Range: 0 to +20 V Output Range: 4 to 20 mA
DSCA31-14EInput Range: 0 to +20 V Output Range: 0 to 20 mA
DSCA31-15Input Range: 0 to +40 V Output Range: 0 to +10 V
DSCA31-15CInput Range: 0 to +40 V Output Range: 4 to 20 mA
DSCA31-15EInput Range: 0 to +40 V Output Range: 0 to 20 mA
