FemtoScope - 5 or 16 GHz USB Wide-Bandwidth Oscilloscopes

Main features

  • 1, 2 or 4 channels configuration.
  • 5 or 16 GHz USB oscilloscope bandwidths available to match your measurement application,
  • 1.5 ps rms typical intrinsic jitter.
  • 12-bit Analog-to-Digital Converter with 500 MSa/s real time sampling rate per channel.
  • Equivalent time sampling rate up to 5 TSa/s.
  • 10 ps/div fastest time base scale.
  • Up to 16 GHz trigger bandwidth enables capture and analysis wide-bandwidth complex signals.
  • Up to 11.3 Gb/s clock recovery trigger data rate.
  • Powerful SW and flexible, simple and intuitive user interface with built-in OnLine Help and demo training signals.
  • Color graded display, automatic measurements, eye diagrams, mask test, histograms, waveform mathematics, 7-digit built-in frequency counter, spectrum analysis with FFT, autoscale, store waveforms and setups.
  • Power consumption less than 15 or 22 W.
Price request Datasheet Ask a question

The FemtoScope 1000, 2000 and 3000 series are portable and low cost digital storage oscilloscopes having bandwidth up to 5 or up to 16 GHz. These oscilloscopes are designed for engineers working both in research laboratories and in production workshops, and who, above all, need characteristics associated with flexible measurements of wide-bandwidth single-shot or repetitive signals.

More recently, if you needed an oscilloscope with a bandwidth of more than 5 GHz, you had to accept the need for significant financial costs. The FemtoScope models set a new price/performance ratio standard for gigahertz frequency USB oscilloscopes.

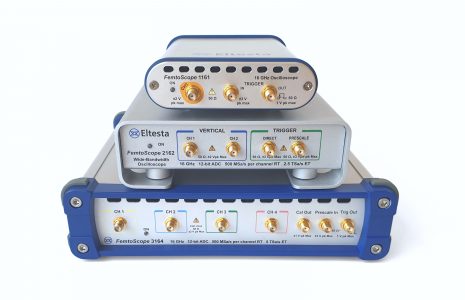

These single-, dual- or four-channel instruments, having a bandwidth of 5 or 16 GHz and triggering over the entire frequency range, provide the acquisition, display, measurement and analysis of complex waveforms in the range from picoseconds to hundreds of seconds.

Being a direct alternative to traditional benchtop oscilloscopes, these instruments are portable, and maybe even miniature, and, what is extremely important, they have an incomparably lower cost. Economical prices make the FemtoScope Series preferred for teaching basic scientific and engineering measurements at lab stations in schools and universities. Features normally only found on much higher priced scopes equip the FemtoScope Series to be a powerful choice for R&D applications.

FS1051 - 1 Channel, BW 5GHz, 500MS/s, 1ps Timing resolution FS1051 - 1 Channel, BW 5GHz, 500MS/s, 1ps Timing resolution

Sampling oscilloscopes

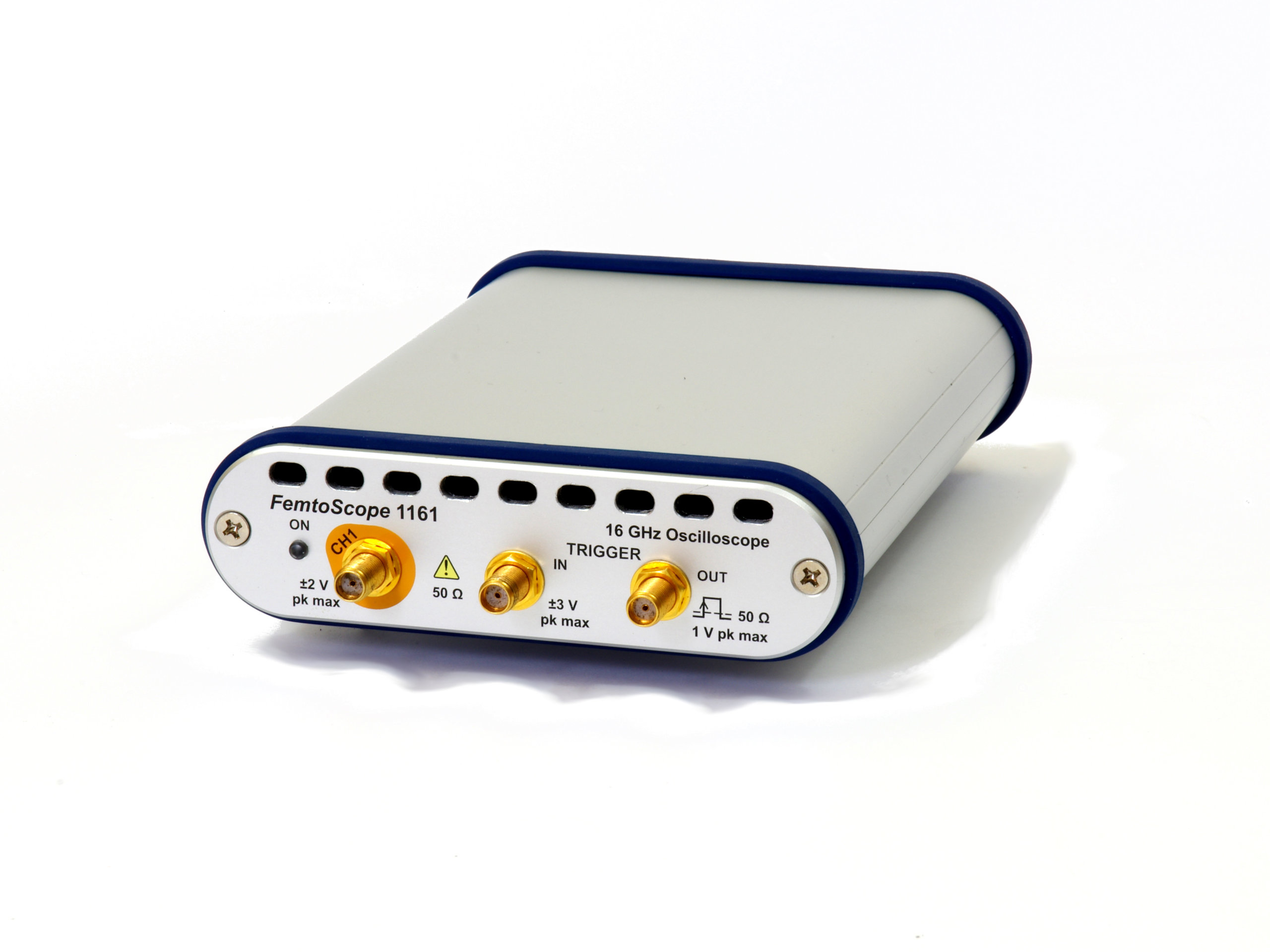

FS1161 - 1 Channel, BW 16GHz, 500MS/s, 0.2ps Timing resolution FS1161 - 1 Channel, BW 16GHz, 500MS/s, 0.2ps Timing resolution

Sampling oscilloscopes

FS2052 - 2 Channels, BW 5GHz, 500MS/s, 1ps Timing resolution FS2052 - 2 Channels, BW 5GHz, 500MS/s, 1ps Timing resolution

Sampling oscilloscopes

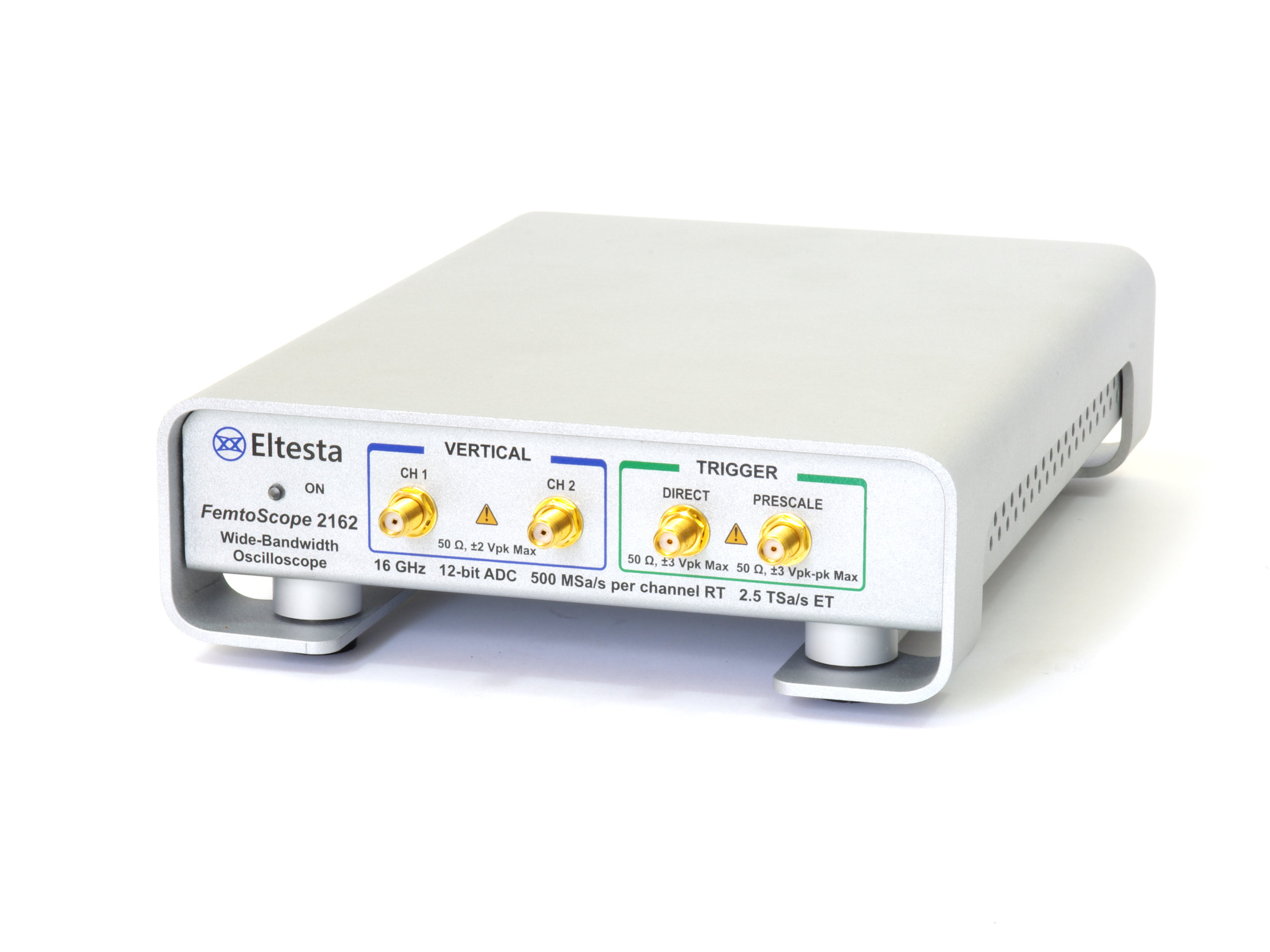

FS2162 - 2 Channels, BW 16GHz, 500MS/s, 0.2ps Timing resolution FS2162 - 2 Channels, BW 16GHz, 500MS/s, 0.2ps Timing resolution

Sampling oscilloscopes

FS3054 - 4 Channels, BW 5GHz, 500MS/s, 1ps Timing resolution FS3054 - 4 Channels, BW 5GHz, 500MS/s, 1ps Timing resolution

Sampling oscilloscopes

FS3164 - 4 Channels, BW 16GHz, 500MS/s, 0.2ps Timing resolution FS3164 - 4 Channels, BW 16GHz, 500MS/s, 0.2ps Timing resolution

Sampling oscilloscopes

FemtoScope 5 or 16 GHz USB Wide-Bandwidth Oscilloscopes
FS1051 1 Channel, BW 5GHz, 500MS/s, 1ps Timing resolution
FS1161 1 Channel, BW 16GHz, 500MS/s, 0.2ps Timing resolution
FS2052 2 Channels, BW 5GHz, 500MS/s, 1ps Timing resolution
FS2162 2 Channels, BW 16GHz, 500MS/s, 0.2ps Timing resolution
FS3054 4 Channels, BW 5GHz, 500MS/s, 1ps Timing resolution
FS3164 4 Channels, BW 16GHz, 500MS/s, 0.2ps Timing resolution
