The G-LNA2 Low-Noise Amplifier offers the best combination of performance, packaging and price on the market. It is a very high-performance device developed specifically for difficult environments and optimized for GPS applications.

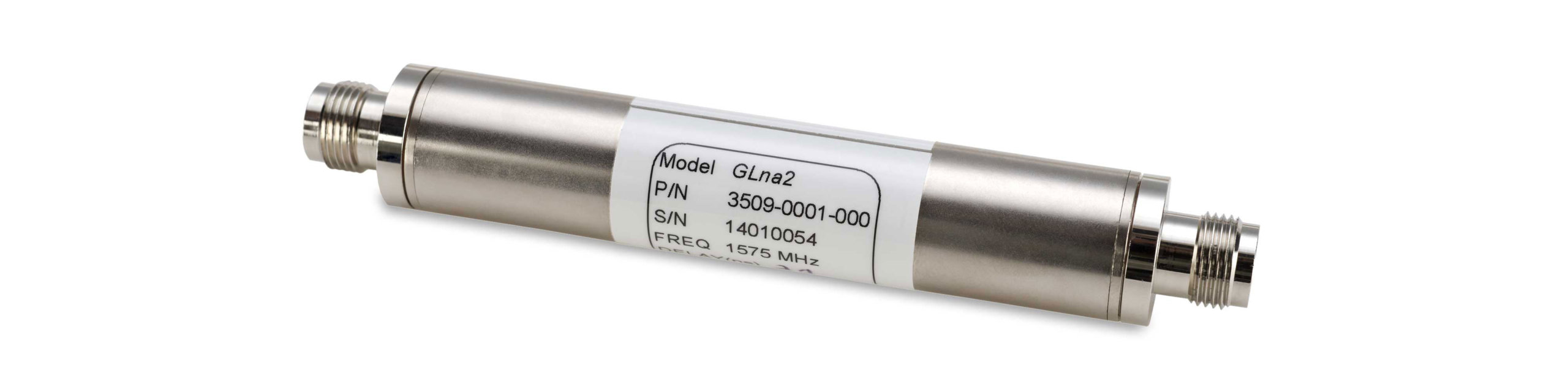

G-LNA2 - GPS Preamplifiers
Main features
- Weather-proof.
- Low noise figure: < 1.5 dB.
- High linearity: > -12 dBm IP 1dB.
- High gain: +26.5 dB +/-1 dB.
- Low power: 15 mA.
- Flat group delay: delta < 1 ns @ 1575 +/-1 MHz.
- Group delay is individually measured and written on each LNA label with 1 ns resolution.
| 4011-0002-000 | GPS Preamplifiers |
