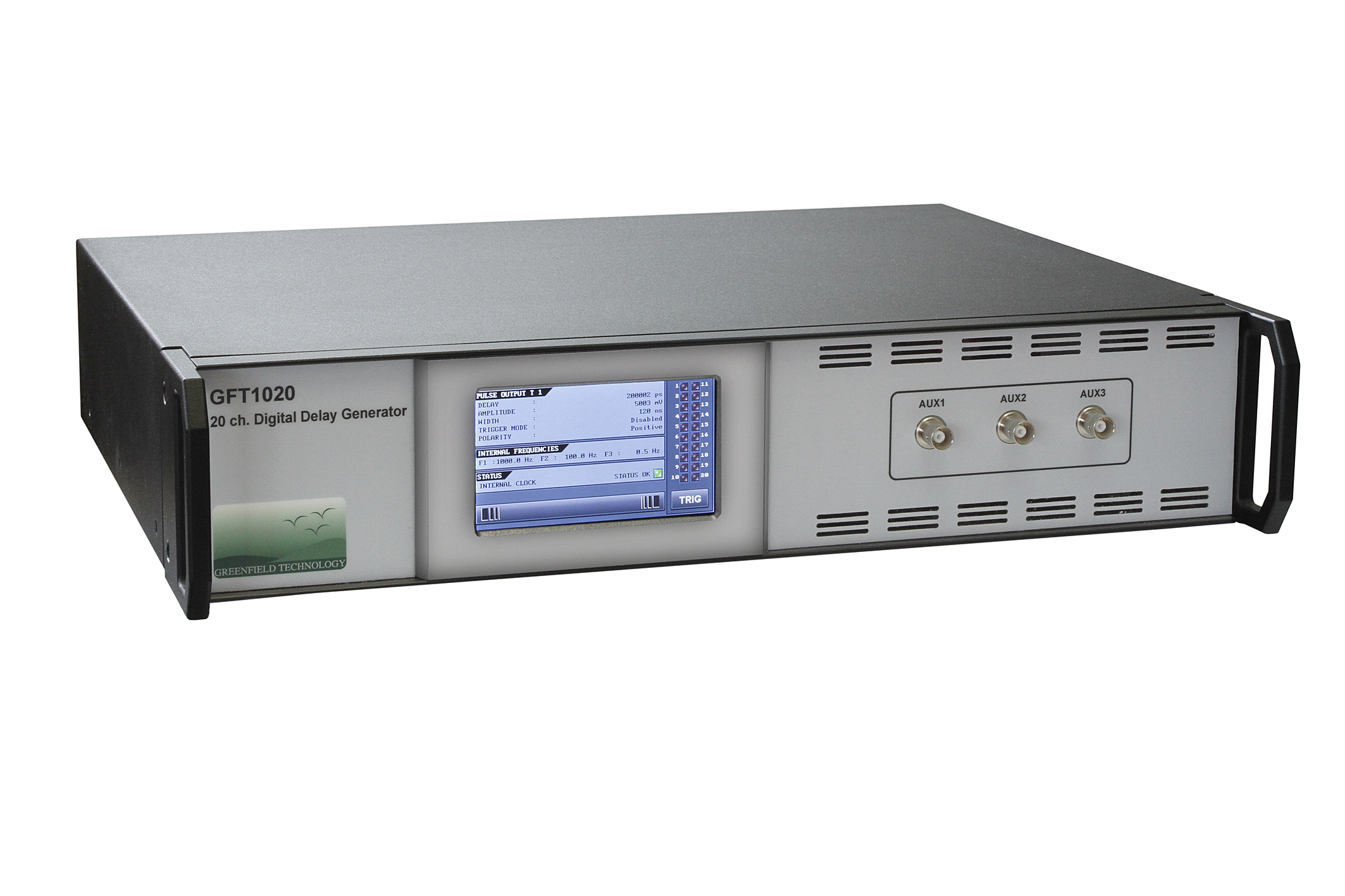

GFT1020 - 20 Channels Delay Generator

Main features

  • 20 independent delay channels
    • 100ps resolution
    • 25 ps RMS jitter
    • 10 second range
  • Output pulse up to 6 V/50 Ω
  • Independent trigger for every channel
  • Four triggers
    • Three are repetitive from three internal generators
    • One is single-shot from external input, or software command
  • External Clocking up to 100 MHz
  • Controlled via Front panel, Ethernet, Internet (web page)
  • Options
    • Channel output amplitude 10 V or 20 V or 32 V under 50 Ω
    • 1 ps delay resolution
    • Optical channel output
    • Extension to 40 channels
Clear
Price request Datasheet

The GFT1020 Digital Delay Generator provides twenty independently delayed outputs on the rear panel. Delays up to 10 seconds can be programmed with 100 ps resolution (or 1 ps as an option) and channel-to-channel jitter is less than 25ps RMS. BNC outputs deliver 6 V level under 50 Ω. Pulse amplitude and width are independently adjustable for each output pulse. Options include:
– Output amplitude can be 2.5 to 10 V, or 5 to 20 V, or fixed 32 V, or 250 mW optical pulse.
– The number of delay channels can be extended to 40 channels.

One input trigger (TRIG IN), or one of the three synchronized internal generators or a remote command can trigger all output channels. A T0 output pulse marks zero delay for each trigger.

All parameters (delay/amplitude/width/trigger source for each channel) may be locally controlled over touch panel and remotely controlled over Ethernet and Internet (internal web server) interface (10/100 Mb/s).

Option 1 - 10V channel output

Delay generator

Option 2 - 20V channel output

Delay generator

Option 3 - 32V channel output

Delay generator

Option 4 - 1ps resolution

Delay generator

Option 5 - Clock ouptut

Delay generator

Option 6 - Clock in / out (other 10 MHz)

Delay generator

Option 7 - rack mount kit

Delay generator

GFT1020 20 Channels Delay Generator
GFT1020 Option 1 10V channel output
GFT1020 Option 2 20V channel output
GFT1020 Option 3 32V channel output
GFT1020 Option 4 1ps resolution
GFT1020 Option 5 Clock ouptut
GFT1020 Option 6 Clock in / out (other 10 MHz)
GFT1020 Option 7 rack mount kit
