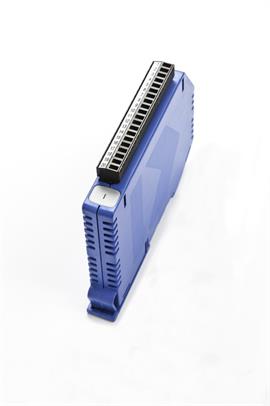

MAQ20-IO - 8 isolated current outputs

Main features

  • 8 Isolated Output Channels
  •  Current Output
  • All Channels Individually Configurable for Range and Programmable Output
  • User-Defined Default Output and Output Waveform
  • 1500Vrms Input-to-Bus Isolation
  • 300Vrms Channel-to-Channel Isolation
  • Each Channel Protected up to 40Vrms Continuous Overload
  • Selective Enabling of Module Channels for Refresh
Price request Datasheet Ask a question

The MAQ20  current output module offer 8 isolated current outputs. All channels are individually configurable for range and programmable output to match the most demanding applications. High level per-channel isolation gives the module unmatched ruggedness and flexibility while default outputs provide essential functionality for fail-safe systems. User defined waveform outputs allow applicationspecific sophisticated, autonomous control. Field output connections are made through a pluggable terminal block which simplifies wiring during system setup and reconfiguration.

Input-to-bus isolation is a robust 1500Vrms and channel-to-channel isolation is 300Vrms. In addition, each channel is protected up to 40Vrms continuous overload in case of inadvertent wiring errors.

Channels in a module can be selectively enabled for output. All channels are enabled by default; however, non-used channels can be disabled to increase the refresh rate of enabled channels.

MAQ20-IO. 8 isolated current outputs
