MX12000 - RF Mixer 12GHz

Main features

  • Local Oscillator Range: 6GHz – 13.0GHz
  • IF range: 5 MHz to 1800 MHz
  • RF range: 4 – 12 GHz
  • RF input P1dB > +1 dBm
  • Low LO leakage:< -30 dB typical
  • LO phase noise at 12GHz (10KHz offset): 86dBc
  • Low conversion loss (8-10dB typical)
  • Return loss: > 10 dB
  • Modes: Up / Down Converting
  • Max input power: +15dBm
  • LO Reference frequency: 100MHz & 10MHz
  • Reference Source: ±280 PPB (10MHz)
Price request Datasheet

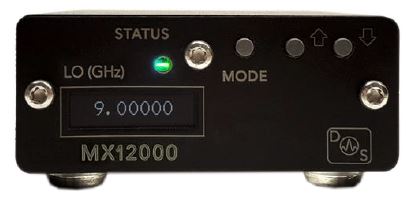

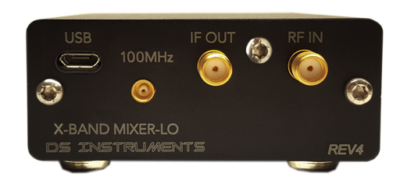

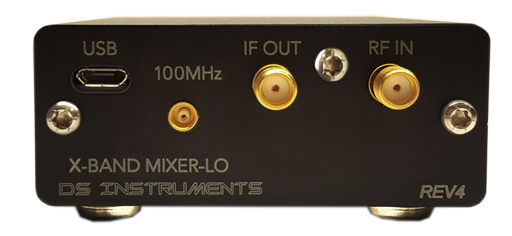

The MX12000 is a wideband high-performance mixer with integrated 6GHz – 13GHz Local Oscillator. LO frequency can be set with front controls, USB commands, or the provided windows PC application. Using its ultra-low noise internal reference source the LO signal has extremely low phase noise.

The MX12000 makes an extremely convenient upconverter or downconverter by eliminating the need for extra cabling and a separate bulky, expensive high-frequency signal source. Available with external 100MHz or 10MHz reference port
