MX2500 - RF Mixer, Programmable UP/Downconverter 2.5GHz

Main features

  • Local Oscillator: 25 – 2500 MHz
  • RF range: 25 – 2500 MHz
  • IF range: 1 – 1000 MHz
  • LO-RF isolation: 35 dB typical
  • LO-IF isolation: 25 dB typical
  • Input P1dB : +5 dBm
  • LO phase noise at 2.5GHz @ 10KHz < 74 dBc
  • LO Reference Frequency: ±2.5 ppm (10MHz)
  • Return loss: 12 dB typical
  • Low conversion loss: 8 dB typical
  • Max input power: +16dBm
  • Modes: Up / Down Converting
Price request Datasheet

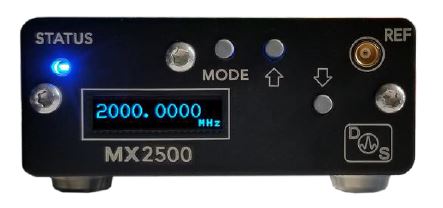

The MX2500 is a compact wide-band general-purpose mixer with integrated harmonic-filtered programmable Local Oscillator. LO frequency can be set with front controls, USB commands, or the provided windows PC application.

Reference 10 MHz signal can be externally supplied or automatically generated internally. The MX2500 makes an extremely convenient up-converter, down-converter, or general purpose mixer by eliminating the need for a separate local oscillator or laboratory DC power supply.
