MX40000 - RF Mixer 40 GHz

Main features

  • Integrated 25–40GHz Local Oscillator
  • Mixer RF frequency range: 18-41GHz
  • Mixer IF frequency range: 5-18000MHz
  • Low conversion loss: 12dB typical
  • IP3: 20dBm
  • Input P1dB: +10dBm
  • LO to RF isolation: 35dB
  • LO to IF isolation: 30dB typ.
  • RF to IF isolation: 12-30dB
  • Typical return loss: > 6dB
  • Up and down-converting
  • Phase noise: 30GHz @ 10KHz: < 85dBc
  • Max RF input power: +18dBm
Price request Datasheet Ask a question

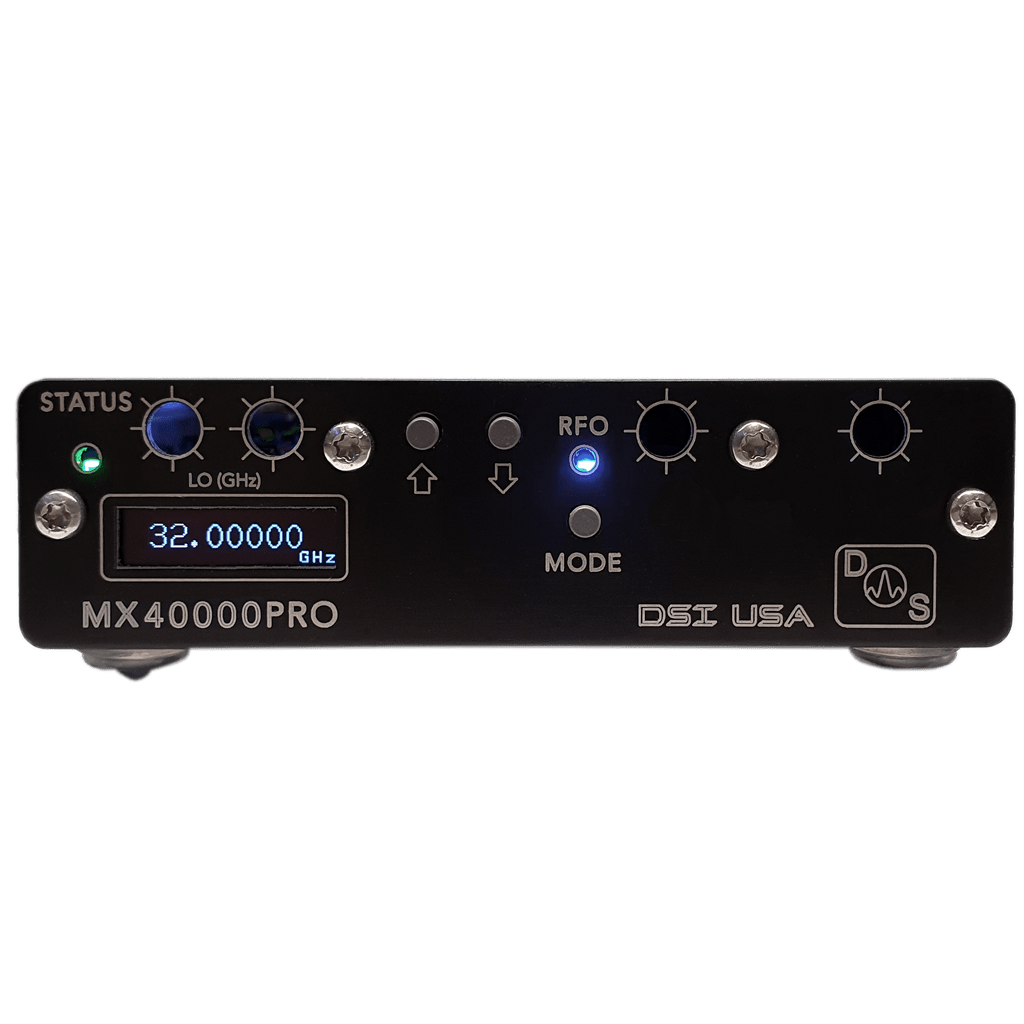

The MX40000 is a wideband high-performance mixer with integrated 25GHz – 40GHz Local Oscillator. LO frequency can be set with front controls, USB commands, or the provided windows PC application. Using its ultra-low noise internal reference source the LO signal has extremely low phase noise.

The MX40000 makes an extremely convenient upconverter or downconverter by eliminating the need for extra cabling and a separate bulky, expensive high-frequency signal source.
