MX30000 - RF Mixer 30 GHz

Main features

  • Integrated 18 – 30 GHz programmable local oscillator
  • IF range: 10 MHz to 8 GHz
  • RF range: 15 – 30 GHz
  • High RF input P1dB > +10 dBm
  • Typical IP3: 20dBm
  • Typical LO to RF isolation: 45dB
  • Typical LO to IF isolation: 35dB
  • Up and down-converting
  • Phase noise, 26GHz @ 10KHz: < 84dBc
  • Max RF input power: +18dBm
  • Port impedance: 50 Ohm
  • LO Reference frequency: 100MHz & 10MHz
  • Reference Source: ±280 PPB (10MHz)
Price request Datasheet

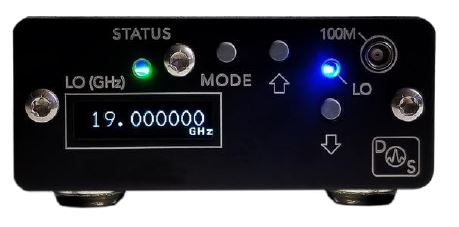

The MX30000 is a wideband high-performance mixer with integrated 18GHz – 30GHz Local Oscillator. LO frequency can be set with front controls, USB commands, or the provided windows PC application. Using its ultra-low noise internal reference source the LO signal has extremely low phase noise.

The MX30000 makes an extremely convenient upconverter or downconverter by eliminating the need for extra cabling and a separate bulky, expensive high-frequency signal source.
