RTM3205 - Precision timing module frequency standard

Main features

Timing accuracy <10 nanoseconds RMS to UTC(USNO).
Ultra-Stable OCXO (short-term stability at 1 second: 5.1×10-13).
Frequency accuracy better than 6×10-14 at 1 day.
Dual-gigabit, IPv4/IPv6 Ethernet network ports and RS-232 serial port.
High-bandwidth NTP server (7500 packets per second).
Security-hardened network interface and protocols.
Low power < 10 watts
Two-year warranty, free software upgrades and technical support for life.
Optional PTP/IEEE-1588 Grandmaster.
Up to four time and frequency outputs including: 1PPS and Low Phase Noise Outputs.
Other Options: High-Stability OCXO, Ultra-Stable OCXO, RTIC, Pulse Rates, Alarm, Time Codes, and more.

Price request Datasheet

The RTM3205 Precision Timing Module is a compact time and frequency standard designed for portable, battery-powered systems. It provides time & frequency outputs with unprecedented accuracy and stability performance in a compact module. And, with the Real-Time Ionospheric Corrections (RTIC) Option, RTM3205 can exceed the stability of a cesium atomic frequency reference.

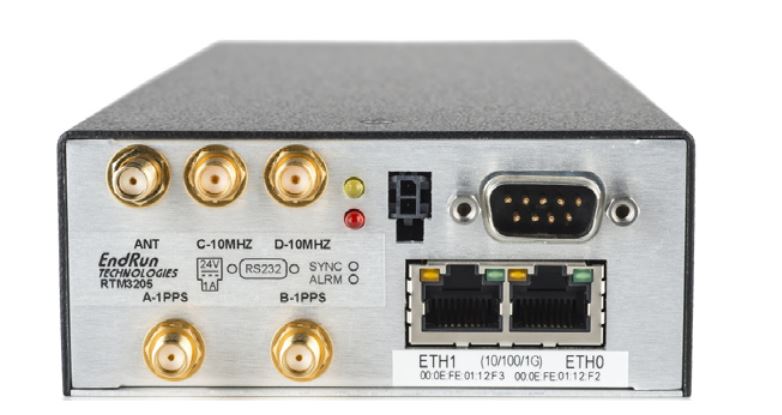

RTM3205 Precision timing module frequency standard
