Ninja - Precision Timing Module

Main features

  • Timing accuracy < 25 nanoseconds RMS to UTC(USNO).
  • Ultra-Stable OCXO (short-term stability at 1 second < 4×10-13).
  • Frequency accuracy better than 6×10-14 at 1000,000 seconds.
  • No frequency steps with OCXOs – guaranteed.
  • IPv4/IPv6 Ethernet port and RS-232 serial port.
  • Network Time Server (NTP).
  • Security-Hardened network interface and protocols.
  • Up to nine optional outputs: 1PPS, PPO, 5/10 MHz, Time Code and Alarm.
  • Low power < 10 watts
Price request Datasheet Ask a question

Ninja is a compact, high-performance time and frequency standard optimized for size, weight, and power (SWaP). This cost-effective, highly integrated module leverages the proven core of the industry leading Meridian II Precision TimeBase.

Nine optional, user configurable, time and frequency outputs and a standard NTP server are supported. Ninja is DC powered, consumes less than 6 watts and is easily integrated into portable, battery powered systems.

An external AC/DC supply is available for stand alone applications.

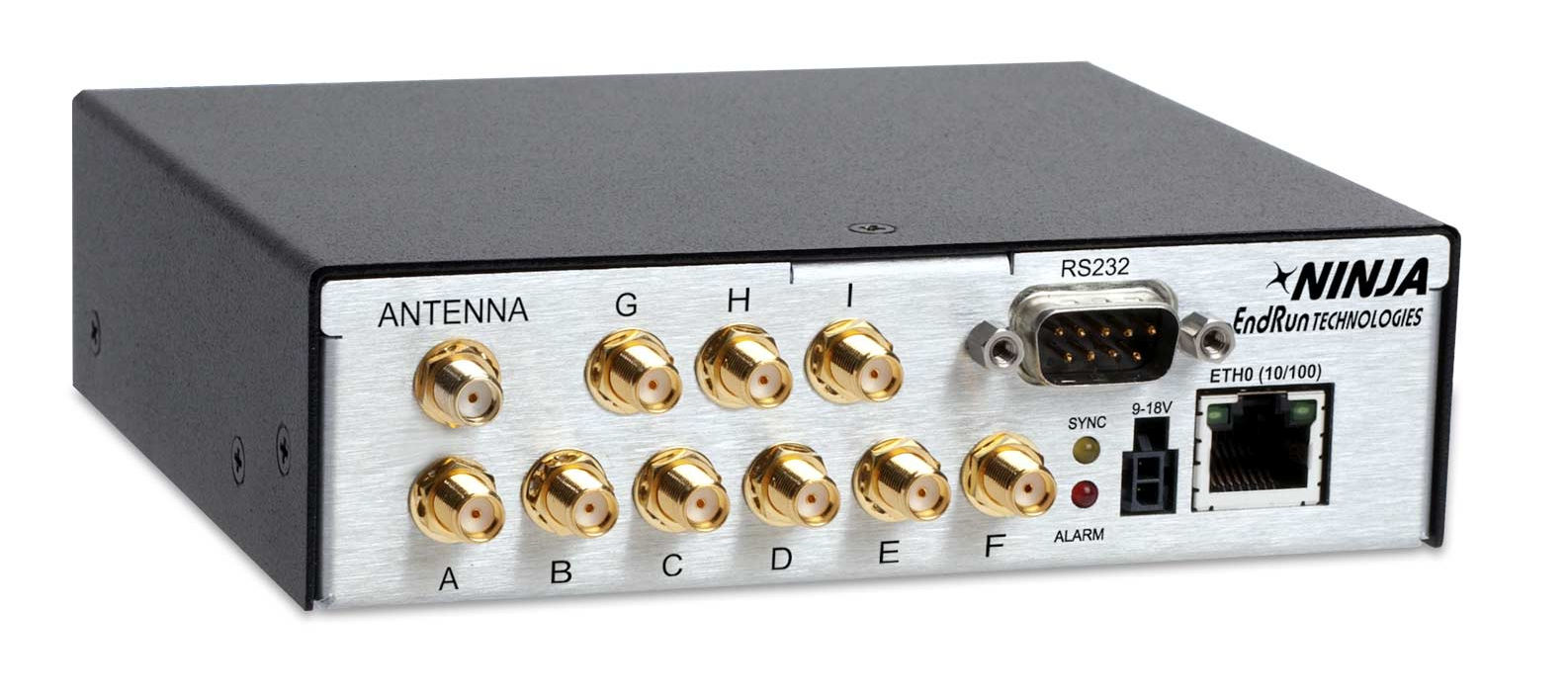

Ninja Precision Timing Module
