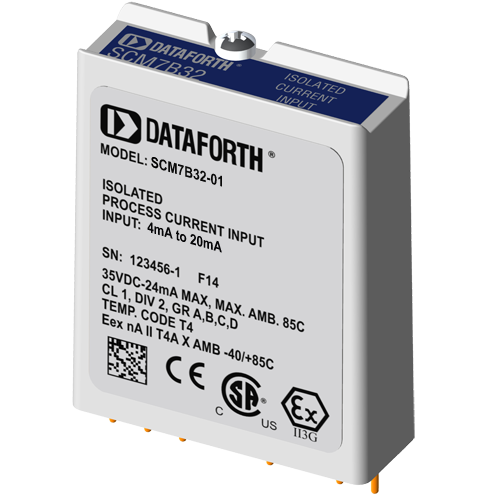

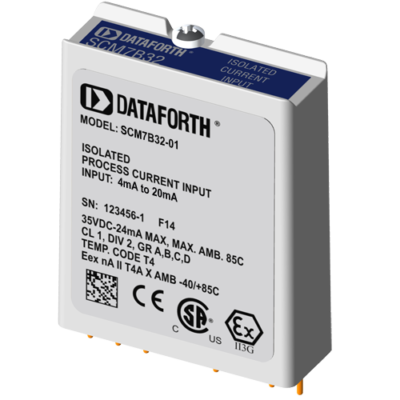

SCM7B32/33 - Isolated Process Current/Voltage Input Modules

Main features

  • Accepts Current or Voltage Input
  • Provides High-Level Voltage Outputs
  • 1500Vrms Transformer Isolation
  • Accuracy, ±0.03% of Span Typical, ±0.1% Max
  • ANSI/IEEE C37.90.1 Transient Protection
  • Input Protected to 120Vrms Continuous
  • Noise, 500µV Peak (5MHz), 300µV RMS (100kHz)
  • CMRR, up to 105dB
  • 80dB Per Decade of Attenuation Above 100Hz
  • Easy DIN Rail Mounting
  • CSA Certified, FM Approved
  • CE and ATEX Compliant
Clear
Price request Datasheet

The SCM7B32 current input modules accept input signals in the 4-20mA or 0- 20mA ranges from the field and provide a high-level output to the process control system. Current to voltage conversion occurs internal to the module, which is factory calibrated to ensure the highest accuracy.

SCM7B33 voltage input modules accept input signals in the +1V to +5V or 0 to +5V ranges from the field and provide a high-level output to the process control system. As an alternative, the SCM7B33 can be used with an external 250 ohm resistor (Dataforth SCM7BXR1 or equivalent), to accept input signals in the 4-20mA or 0-20mA ranges. Using the external sense resistor allows the module to be removed without disrupting the current loop. All SCM7B33s are shipped with a SCM7BXR1 resistor.

These modules incorporate a five-pole filtering approach to maximize both time and frequency response by taking advantage of both Thomson (Bessel) and Butterworth characteristics. One pole of the filter is on the field side of the isolation barrier; four are on the process control system side.

After the initial field-side filtering (conversion-SCM7B32 only), the input signal is chopped by a proprietary chopper circuit and transferred across the transformer isolation barrier, suppressing transmission of common mode spikes and surges. The signal is then reconstructed and filtered for process control system output.

Modules accept a wide 14 – 35VDC power supply range (+24VDC nominal). Their compact packages (2.13″x1.705″x0.605″ max) save space and are ideal for high channel density applications. They are designed for easy DIN rail mounting using any of the “-DIN” backpanels.

SCM7B32-01 - Input range 4 to 20 mA Output range +1 to +5V

7B

SCM7B32-01A - Input range 4 to 20 mA Output range 0 to +5V

7B

SCM7B32-01D - Input range 4 to 20 mA Output range 0 to +10V

7B

SCM7B32-02 - Input range 0 to 20 mA Output range +1 to +5V

7B

SCM7B32-02A - Input range 0 to 20 mA Output range 0 to +5V

7B

SCM7B32-02D - Input range 0 to 20 mA Output range 0 to +10V

7B

SCM7B33-01 - Input range +1 to +5V Output range +1 to +5V

7B

SCM7B33-01A - Input range +1 to +5V Output range 0 to +5V

7B

SCM7B33-01D - Input range +1 to +5V Output range 0 to +10V

7B

SCM7B33-02 - Input range 0 to +5V Output range +1 to +5V

7B

SCM7B33-02A - Input range 0 to +5V Output range 0 to +5V

7B

SCM7B33-02D - Input range 0 to +5V Output range 0 to +10V

7B

SCM7B32/33Isolated Process Current/Voltage Input Modules
SCM7B32-01Input range 4 to 20 mA Output range +1 to +5V
SCM7B32-01AInput range 4 to 20 mA Output range 0 to +5V
SCM7B32-01DInput range 4 to 20 mA Output range 0 to +10V
SCM7B32-02Input range 0 to 20 mA Output range +1 to +5V
SCM7B32-02AInput range 0 to 20 mA Output range 0 to +5V
SCM7B32-02DInput range 0 to 20 mA Output range 0 to +10V
SCM7B33-01Input range +1 to +5V Output range +1 to +5V
SCM7B33-01AInput range +1 to +5V Output range 0 to +5V
SCM7B33-01DInput range +1 to +5V Output range 0 to +10V
SCM7B33-02Input range 0 to +5V Output range +1 to +5V
SCM7B33-02AInput range 0 to +5V Output range 0 to +5V
SCM7B33-02DInput range 0 to +5V Output range 0 to +10V
