SCM7B35 - Isolated 2-Wire Transmitter Interface Modules With Loop Power

Main features

  • 2-Wire Transmitter Interface
  • Accepts 4-20mA Signals
  • Provides an Isolated +24VDC Supply to Power the Loop
  • Provides High-Level Voltage Outputs
  • 1500Vrms Transformer Isolation
  • Accuracy, ±0.03% of Span Typical, ±0.1% Max
  • ANSI/IEEE C37.90.1 Transient Protection
  • 120Vrms Input Protection
  • CMRR, 105dB
  • 80dB Per Decade of Attenuation Above 100Hz
  • Easy DIN Rail Mounting
  • CSA Certified, FM Approved
  • CE and ATEX Compliant
Clear
Price request Datasheet

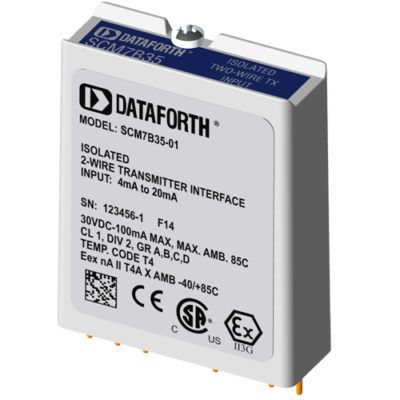

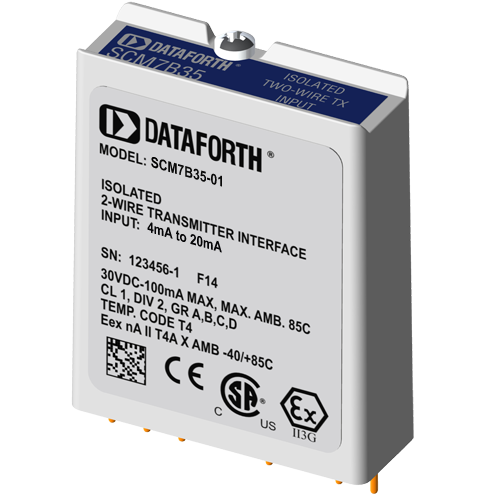

SCM7B35 current input modules accept input signals in the 4-20mA range from the field and provide a high-level voltage output to the process control system. Current to voltage conversion occurs internal to the module, which is factory calibrated to ensure the highest accuracy.

Loop power is provided by the module, enabling a 2-wire transmitter to be directly connected without the need for a separate dc power supply for the 2-wire transmitter.

These modules incorporate a five-pole filtering approach to maximize both time and frequency response by taking advantage of both Thomson (Bessel) and Butterworth characteristics. One pole of the filter is on the field side of the isolation barrier; four are on the process control system side.

After the initial field-side filtering, the input signal is chopped by a proprietary chopper circuit and transferred across the transformer isolation barrier, suppressing transmission of common mode spikes and surges. The signal is then reconstructed and filtered for process control system output.

Modules accept a wide 18 – 35VDC power supply range (+24VDC nominal). Their compact packages (2.13″x1.705″x0.605″ max) save space and are ideal for high channel density applications. They are designed for easy DIN rail mounting using any of the “-DIN” backpanels.

SCM7B35-01 - Input range 4 to 20 mA Output range +1 to +5V

7B

SCM7B35-01A - Input range 4 to 20 mA Output range 0 to +5V

7B

SCM7B35-01D - Input range 4 to 20 mA Output range 0 to +10V

7B

SCM7B35-02 - Input range 4 to 20 mA Output range +2 to +10V

7B

SCM7B35Isolated 2-Wire Transmitter Interface Modules With Loop Power
SCM7B35-01Input range 4 to 20 mA Output range +1 to +5V
SCM7B35-01AInput range 4 to 20 mA Output range 0 to +5V
SCM7B35-01DInput range 4 to 20 mA Output range 0 to +10V
SCM7B35-02Input range 4 to 20 mA Output range +2 to +10V
