SCM9B-14 - RTD Sensor-to-Computer Modules

Main features

  • RTD Inputs
  • Complete Sensor to RS-485 or RS-232C Interface
  • ASCII Format Command/Response Protocol
  • 500Vrms Analog Input Isolation
  • 15-Bit Measurement Resolution
  • Continuous Self-Calibration; No Adjustments of Any Kind
  • Programmable Digital Filter
  • Digital Limit Setting and Alarm Capability
  • Digital Inputs and Outputs
  • Connect to Solid State Relays
  • Events Counter to 10 Million
  • Requires +10V to +30VDC Unregulated Supply
  • Transient Suppression on RS-485 Communications Lines
  • Screw Terminal Plug Connectors Supplied
  • CE Compliant
Clear
Price request Datasheet

The SCM9B-1000/2000 Sensor-to-Computer Modules are a family of complete solutions designed for data acquisition systems based on personal computers and other processor-based equipment with standard serial I/O ports. The modules convert analog input signals to engineering units and transmit in ASCII format to any host with standard RS-485 or RS-232C ports. These modules can measure temperature, pressure, voltage, current and various types of digital signals. The modules provide direct connection to a wide variety of sensors and perform all signal conditioning, scaling, linearization and conversion to engineering units. Each module also provides digital I/O lines for controlling devices through solid state relays or TTL signals. These digital I/O lines along with built-in limit setting capability provide alarm and control outputs.

The modules contain no pots or switches to be set. Features such as address, data rate, parity, alarms, echo, etc. are selectable using simple commands over the communications port—without requiring access to the module. The selections are stored in nonvolatile EEPROM which maintains data even after power is removed.

The 2000 series is an enhanced version of the 1000 series of sensor interfaces. The 2000 series allows the user to scale the output data in any desired engineering units. The 2000 also provides the ability to program nonlinear transfer functions. This feature may be used to linearize nonstandard sensors or to provide outputs in engineering units which are nonlinear functions of the input.

Programmable Features (2000 Series)

  • Provides intelligent features not found in the 1000 series
  • ASCII Output Scaled to Desired Engineering Units
  • User Programmable Nonlinear Transfer Function
  • Straight-Line Segment Approximation: up to 24 Segments

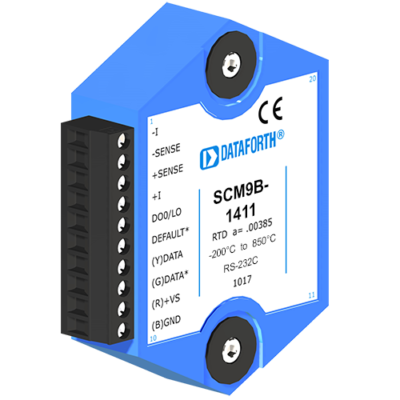

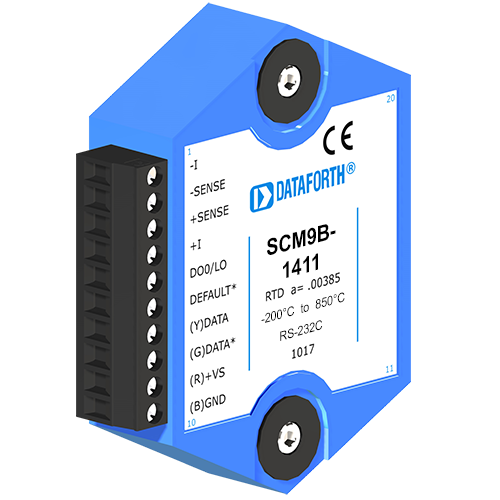

SCM9B-1411 - 00385 RTD Input Range -200 to 850°C Output RS232C

9B

SCM9B-1412 - 00385 RTD Input Range -200 to 850°C Output RS485

9B

SCM9B-1421 - 00392 RTD Input Range -200 to 600°C Output RS232C

9B

SCM9B-1422 - 00392 RTD Input Range -200 to 600°C Output RS485

9B

SCM9B-1431 - 00388 RTD Input Range -100 to 125°C Output RS232C

9B

SCM9B-1432 - 00388 RTD Input Range -100 to 125°C Output RS485

9B

SCM9B-1451 - 2252 Ohm Thermistor Output RS232C

9B

SCM9B-1452 - 2252 Ohm Thermistor Output RS485

9B

SCM9B-1461 - TD Thermistor Output RS232C

9B

SCM9B-1462 - TD Thermistor Output RS485

9B

SCM9B-14RTD Sensor-to-Computer Modules
SCM9B-141100385 RTD Input Range -200 to 850°C Output RS232C
SCM9B-141200385 RTD Input Range -200 to 850°C Output RS485
SCM9B-142100392 RTD Input Range -200 to 600°C Output RS232C
SCM9B-142200392 RTD Input Range -200 to 600°C Output RS485
SCM9B-143100388 RTD Input Range -100 to 125°C Output RS232C
SCM9B-143200388 RTD Input Range -100 to 125°C Output RS485
SCM9B-14512252 Ohm Thermistor Output RS232C
SCM9B-14522252 Ohm Thermistor Output RS485
SCM9B-1461TD Thermistor Output RS232C
SCM9B-1462TD Thermistor Output RS485
