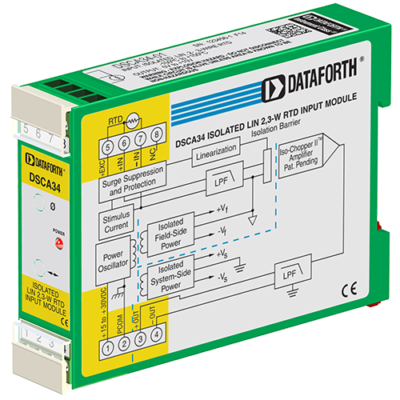

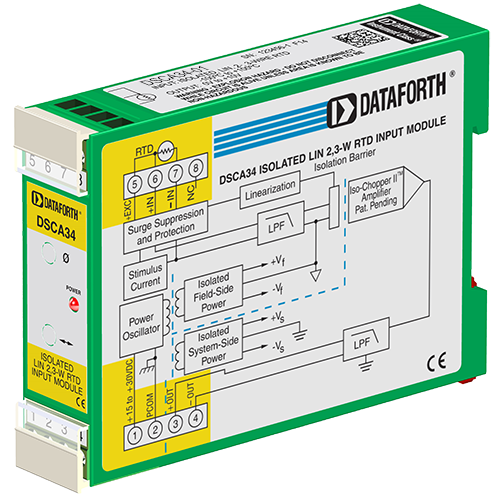

DSCA34 - Linearized 2- or 3-Wire RTD Input Signal Conditioners

Main features

  • Interfaces to 100 Ohm Platinum or 120 Ohm Nickel RTDs
  • Linearizes RTD Signal
  • Industry Standard Output of either 0-10V, 0-20mA, or 4-20mA
  • 1500Vrms Transformer Isolation
  • ANSI/IEEE C37.90.1 Transient Protection
  • Input Protected to 240VAC Continuous
  • True 3-Way Isolation
  • Wide Range of Supply Voltage
  • 160dB CMR
  • 85dB NMR at 60Hz, 80dB at 50Hz
  • ±0.08% Accuracy
  • ±0.025% Conformity
  • Easily Mounts on Standard DIN Rail
  • C-UL-US Listed
  • CE and ATEX Compliant
Price request Datasheet Ask a question

Each DSCA34 RTD input module provides a single channel of RTD input which is filtered, isolated, amplified, linearized, and converted to a high-level voltage output. Signal filtering is accomplished with a five-pole filter which provides 85dB of normal-mode rejection at 60Hz and 80dB at 50Hz. An anti-aliasing pole is located on the field side of the isolation barrier, and the other four poles are on the system side. After the initial field-side filtering, the input signal is chopped by a proprietary chopper circuit. Isolation is provided by transformer coupling, again using a proprietary technique to suppress transmission of common mode spikes or surges.

RTD excitation is provided from the module using a precision current source. Lead compensation is achieved by matching two current paths which cancels the effects of lead resistance. The excitation current is small ( approx. 0.25mA) which minimizes self-heating of the RTD.

Module output is either voltage or current. For current output models a dedicated loop supply is provided at terminal 3 (+OUT) with loop return located at terminal 4 (-OUT). The system-side load may be either floating or grounded.

Special input circuits provide protection against accidental connection of powerline voltages up to 240VAC and against transient events as defined by ANSI/ IEEE C37.90.1. Protection circuits are also present on the signal output and power input terminals to guard against transient events and power reversal. Signal and power lines are secured to the module using screw terminals which are in pluggable terminal blocks for ease of system assembly and reconfiguration.

The modules have excellent stability over time and do not require recalibration, however, zero and span settings are adjustable up to ±3% to accommodate situations where fine-tuning is desired. The adjustments are made using potentiometers located under the front panel label and are non-interactive for ease of use.

DSCA34-01 - RTD Type: 100 Ohm Platinum Input Range: -100 to 100 (°C) Output Range: 0 to +10 V

DSCA

DSCA34-01C - RTD Type: 100 Ohm Platinum Input Range: -100 to 100 (°C) Output Range: 4 to 20 mA

DSCA

DSCA34-01E - RTD Type: 100 Ohm Platinum Input Range: -100 to 100 (°C) Output Range: 0 to 20 mA

DSCA

DSCA34-02 - RTD Type: 100 Ohm Platinum Input Range: 0 to 100 (°C) Output Range: 0 to +10 V

DSCA

DSCA34-02C - RTD Type: 100 Ohm Platinum Input Range: 0 to 100 (°C) Output Range: 4 to 20 mA

DSCA

DSCA34-02E - RTD Type: 100 Ohm Platinum Input Range: 0 to 100 (°C) Output Range: 0 to 20 mA

DSCA

DSCA34-03 - RTD Type: 100 Ohm Platinum Input Range: 0 to 200 (°C) Output Range: 0 to +10 V

DSCA

DSCA34-03C - RTD Type: 100 Ohm Platinum Input Range: 0 to 200 (°C) Output Range: 4 to 20 mA

DSCA

DSCA34-03E - RTD Type: 100 Ohm Platinum Input Range: 0 to 200 (°C) Output Range: 0 to 20 mA

DSCA

DSCA34-04 - RTD Type: 100 Ohm Platinum Input Range: 0 to 600 (°C) Output Range: 0 to +10 V

DSCA

DSCA34-04C - RTD Type: 100 Ohm Platinum Input Range: 0 to 600 (°C) Output Range: 4 to 20 mA

DSCA

DSCA34-04E - RTD Type: 100 Ohm Platinum Input Range: 0 to 600 (°C) Output Range: 0 to 20 mA

DSCA

DSCA34-05 - RTD Type: 100 Ohm Platinum Input Range: -50 to 350 (°C) Output Range: 0 to +10 V

DSCA

DSCA34-05C - RTD Type: 100 Ohm Platinum Input Range: -50 to 350 (°C) Output Range: 4 to 20 mA

DSCA

DSCA34-05E - RTD Type: 100 Ohm Platinum Input Range: -50 to 350 (°C) Output Range: 0 to 20 mA

DSCA

DSCA34N-01 - RTD Type: 120 Ohm Nickel Input Range: 0 to 300 (°C) Output Range: 0 to +10 V

DSCA

DSCA34N-01C - RTD Type: 120 Ohm Nickel Input Range: 0 to 300 (°C) Output Range: 4 to 20 mA

DSCA

DSCA34N-01E - RTD Type: 120 Ohm Nickel Input Range: 0 to 300 (°C) Output Range: 0 to 20 mA

DSCA

DSCA34 Linearized 2- or 3-Wire RTD Input Signal Conditioners
DSCA34-01 RTD Type: 100 Ohm Platinum Input Range: -100 to 100 (°C) Output Range: 0 to +10 V
DSCA34-01C RTD Type: 100 Ohm Platinum Input Range: -100 to 100 (°C) Output Range: 4 to 20 mA
DSCA34-01E RTD Type: 100 Ohm Platinum Input Range: -100 to 100 (°C) Output Range: 0 to 20 mA
DSCA34-02 RTD Type: 100 Ohm Platinum Input Range: 0 to 100 (°C) Output Range: 0 to +10 V
DSCA34-02C RTD Type: 100 Ohm Platinum Input Range: 0 to 100 (°C) Output Range: 4 to 20 mA
DSCA34-02E RTD Type: 100 Ohm Platinum Input Range: 0 to 100 (°C) Output Range: 0 to 20 mA
DSCA34-03 RTD Type: 100 Ohm Platinum Input Range: 0 to 200 (°C) Output Range: 0 to +10 V
DSCA34-03C RTD Type: 100 Ohm Platinum Input Range: 0 to 200 (°C) Output Range: 4 to 20 mA
DSCA34-03E RTD Type: 100 Ohm Platinum Input Range: 0 to 200 (°C) Output Range: 0 to 20 mA
DSCA34-04 RTD Type: 100 Ohm Platinum Input Range: 0 to 600 (°C) Output Range: 0 to +10 V
DSCA34-04C RTD Type: 100 Ohm Platinum Input Range: 0 to 600 (°C) Output Range: 4 to 20 mA
DSCA34-04E RTD Type: 100 Ohm Platinum Input Range: 0 to 600 (°C) Output Range: 0 to 20 mA
DSCA34-05 RTD Type: 100 Ohm Platinum Input Range: -50 to 350 (°C) Output Range: 0 to +10 V
DSCA34-05C RTD Type: 100 Ohm Platinum Input Range: -50 to 350 (°C) Output Range: 4 to 20 mA
DSCA34-05E RTD Type: 100 Ohm Platinum Input Range: -50 to 350 (°C) Output Range: 0 to 20 mA
DSCA34N-01 RTD Type: 120 Ohm Nickel Input Range: 0 to 300 (°C) Output Range: 0 to +10 V
DSCA34N-01C RTD Type: 120 Ohm Nickel Input Range: 0 to 300 (°C) Output Range: 4 to 20 mA
DSCA34N-01E RTD Type: 120 Ohm Nickel Input Range: 0 to 300 (°C) Output Range: 0 to 20 mA
