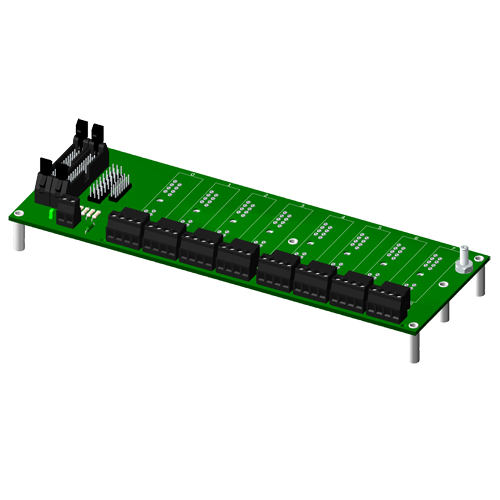

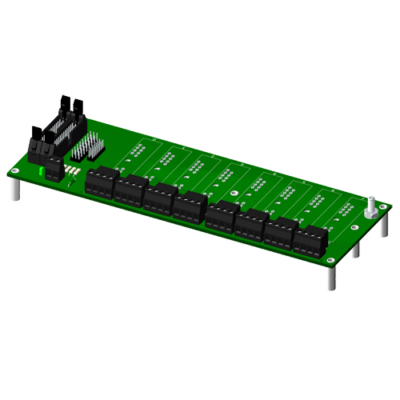

SCMPB05 - 8-channel backpanel with standoffs for mounting.

Main features

  • 8 Slots for 5B signal conditioners
  • For 19-inch metal rack
  • DIN Rail option
Price request Datasheet Ask a question

The SCMPB05 backpanel can accept up to eight SCM5B analog input and/or output modules in any combination. It can be mounted on the SCMXRK-002 19-inch metal rack. A separate analog signal path is provided for each channel and each channel’s signal is accessible at redundant 26-pin connectors. The module output switch is continuously “on” when using this backpanel and all eight module outputs are simultaneously accessible to high-speed data acquisition (ADC) boards.

On-board jumpers permit paralleling two SCMPB05 boards to form a SCMPB01 equivalent. An additional set of inter channel bridge jumpers permits connecting an input module’s output to an output module’s input, providing two levels of isolation. Jumpers on the SCMPB05 permit user selection of low (i.e. channels 0-7) or high (i.e. channels 8-15) addresses.
A temperature sensor mounted on each channel provides cold junction compensation  for thermocouple input modules. Field connections are terminated with four screw terminals at each module site. Use system interface cable SCMXCA004-XX for connection to the host system.

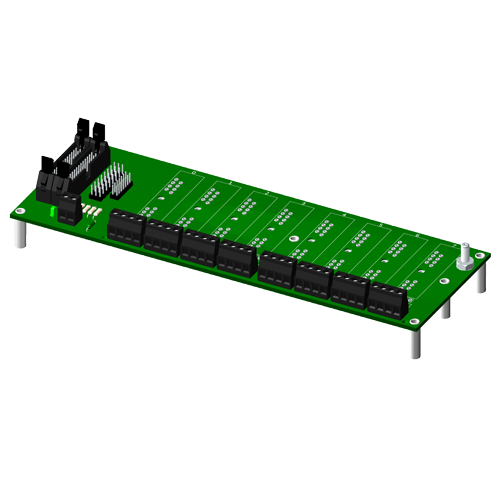

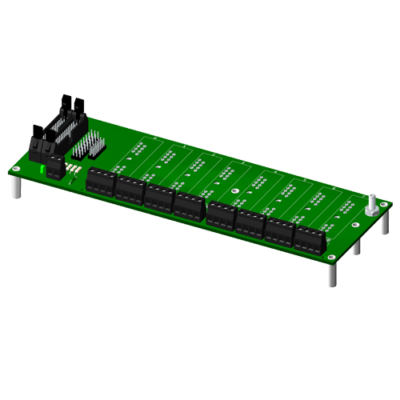

SCMPB05-1 - 8-channel backpanel without cold junction compensation circuits and standoffs for mounting. Use when cost savings is desired and thermocouple input modules SCM5B37 and SCM5B47 will not be used.

Backpanel

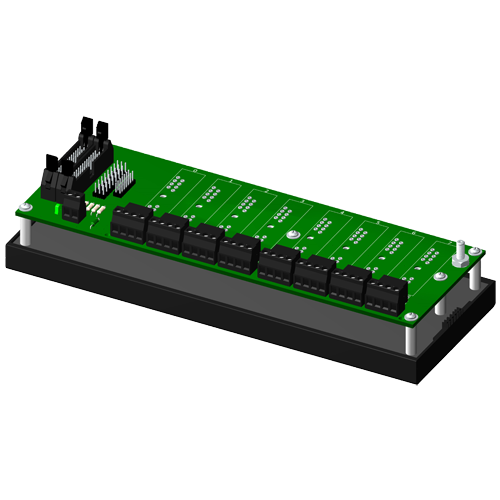

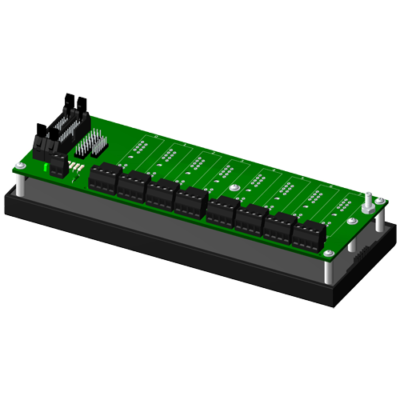

SCMPB05-2 - 8-channel backpanel with DIN rail mounting option. The backpanel is mounted on a plate which is captured by the SCMXBExx DIN rail mounting elements. Shipped fully assembled.

Backpanel

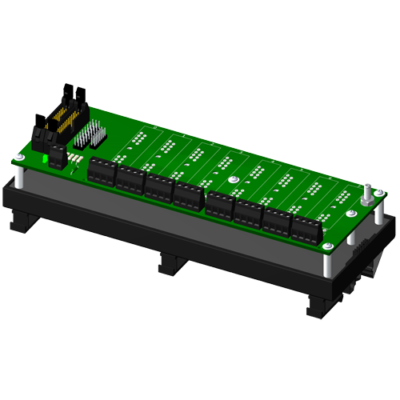

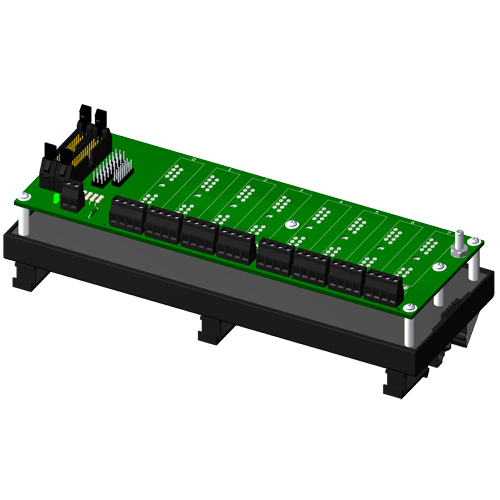

SCMPB05-3 - 8-channel backpanel without cold junction compensation circuits and with DIN rail mounting option. Shipped fully assembled

Backpanel

SCMPB05 8-channel backpanel with standoffs for mounting.
SCMPB05-1 8-channel backpanel without cold junction compensation circuits and standoffs for mounting. Use when cost savings is desired and thermocouple input modules SCM5B37 and SCM5B47 will not be used.
SCMPB05-2 8-channel backpanel with DIN rail mounting option. The backpanel is mounted on a plate which is captured by the SCMXBExx DIN rail mounting elements. Shipped fully assembled.
SCMPB05-3 8-channel backpanel without cold junction compensation circuits and with DIN rail mounting option. Shipped fully assembled
