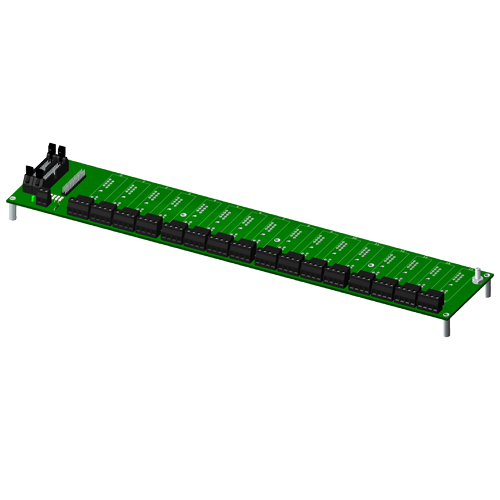

SCMPB01 - 16-channel backpanel with standoffs for mounting.

Main features

  • 16 Slots for 5B signal conditioners
  • Panel or DIN Rail Mounting Options
  • 19-Inch Mounting Rack For Backpanels
  • Non-Multiplexed Backpanels
Price request Datasheet Ask a question

The SCMPB01 16-channel backpanel can accept any of the SCM5B analog modules in any mixture. It can be mounted on the SCMXRK-002 19-inch metal rack. The SCMPB01 has 16 non-addressable analog I/O signal channels which provides each module with it’s own analog bus. The module output switch is continuously “on” when using this backpanel and all sixteen module outputs are simultaneously accessible to high-speed data acquisition (ADC) boards.

A set of inter-channel bridge jumpers permits connecting an input module’s output to an output module’s input, providing two levels of isolation. A temperature sensor is mounted on each channel to provide cold junction compensation for thermocouple input modules. Field connections are terminated with four screw terminals at each module site. Use system interface cable SCMXCA004-XX for connection to the host system.

SCMPB01-1 - 16-channel backpanel  without cold junction compensation circuits and standoffs for mounting. Use when cost savings is desired and thermocouple input modules SCM5B37 and SCM5B47 will not be used. SCMPB01-1 - 16-channel backpanel without cold junction compensation circuits and standoffs for mounting. Use when cost savings is desired and thermocouple input modules SCM5B37 and SCM5B47 will not be used.

Backpanel

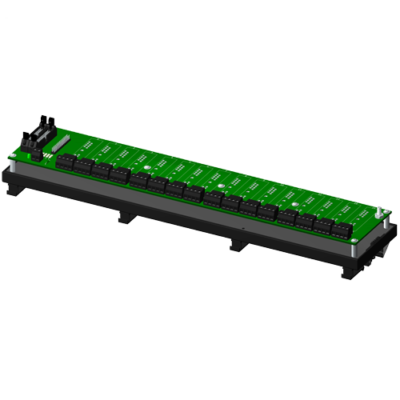

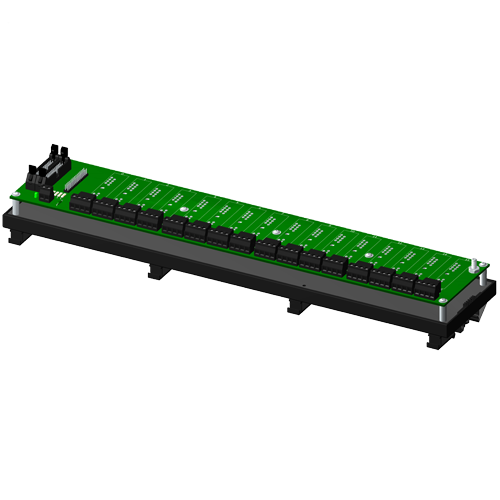

SCMPB01-2 - 16-channel backpanel with DIN  rail mounting option. The backpanel is mounted on a plate which is captured by the SCMXBExx  DIN  rail  mounting  elements.  Shipped  fully assembled. SCMPB01-2 - 16-channel backpanel with DIN rail mounting option. The backpanel is mounted on a plate which is captured by the SCMXBExx DIN rail mounting elements. Shipped fully assembled.

Backpanel

SCMPB01-3 - 16-channel backpanel  without cold junction compensation circuits  and  with  DIN  rail  mounting  option.  Shipped  fully assembled. SCMPB01-3 - 16-channel backpanel without cold junction compensation circuits and with DIN rail mounting option. Shipped fully assembled.

Backpanel

SCMPB01 16-channel backpanel with standoffs for mounting.
SCMPB01-1 16-channel backpanel without cold junction compensation circuits and standoffs for mounting. Use when cost savings is desired and thermocouple input modules SCM5B37 and SCM5B47 will not be used.
SCMPB01-2 16-channel backpanel with DIN rail mounting option. The backpanel is mounted on a plate which is captured by the SCMXBExx DIN rail mounting elements. Shipped fully assembled.
SCMPB01-3 16-channel backpanel without cold junction compensation circuits and with DIN rail mounting option. Shipped fully assembled.
