SCMPB06 - 8-channel backpanel with standoffs for mounting, multiplexed

Main features

  • 8 Slots for 5B signal conditioners, Multiplexed
  • For 19-inch metal rack
  • DIN Rail option
Clear
Price request Datasheet

The SCMPB06 backpanel can accept up to eight SCM5B modules in any combination. It can be mounted on the SCMXRK-002 19-inch metal rack.
The SCMPB06 has two analog buses; one for analog input and one for analog output. This two-bus configuration takes advantage of the switch controlled outputs on the input modules and the track-and-hold inputs on the output modules. A temperature sensor is mounted on each channel to provide cold junction compensation for thermocouple input modules.

Field connections are terminated with four screw terminals at each module site. Up to eight SCMPB06 backpanels may be daisy-chained. Use SCMXCA004-XX cable for daisy chaining and connecting to host computer. Jumpers on the SCMPB06 permit user selection of low (i.e. channels 0-7) or high (i.e. channels 8-15) addresses.

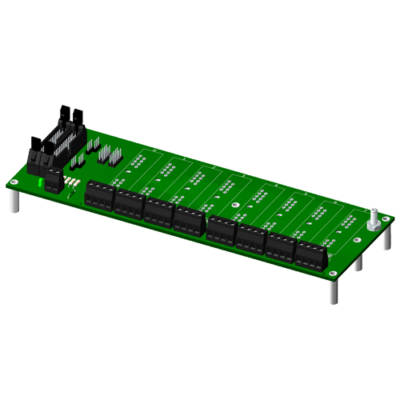

SCMPB06-1 - 8-channel backpanel without cold junction compensation circuits and standoffs for mounting. Use when cost savings is desired and thermocouple input modules SCM5B37 and SCM5B47 will not be used.

Backpanel

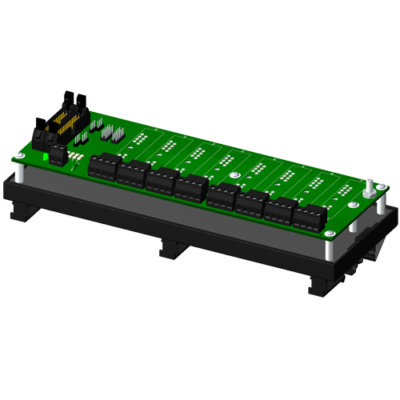

SCMPB06-2 - 8-channel backpanel with DIN rail mounting option. The backpanel is mounted on a plate which is captured by the SCMXBExx DIN rail mounting elements. Shipped fully assembled.SCMPB06-2 - 8-channel backpanel with DIN rail mounting option. The backpanel is mounted on a plate which is captured by the SCMXBExx DIN rail mounting elements. Shipped fully assembled.

Backpanel

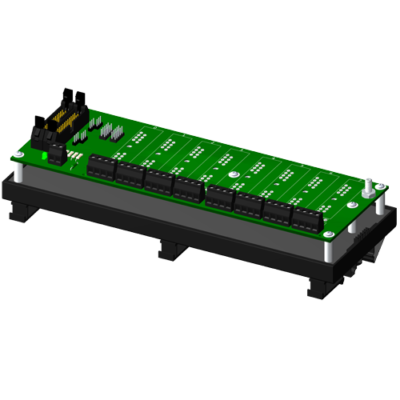

SCMPB06-3 - 8-channel backpanel without cold junction compensation circuits and with DIN rail mounting option. Shipped fully assembledSCMPB06-3 - 8-channel backpanel without cold junction compensation circuits and with DIN rail mounting option. Shipped fully assembled

Backpanel

SCMPB068-channel backpanel with standoffs for mounting, multiplexed

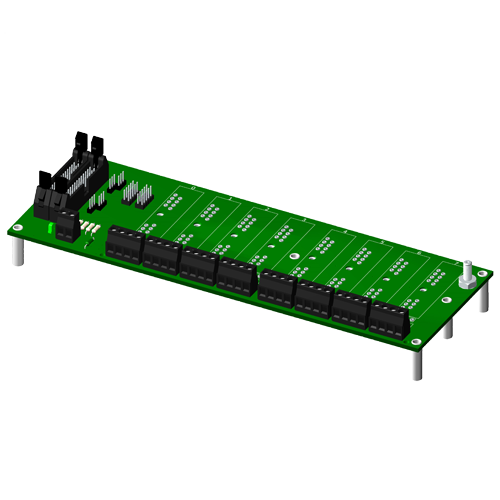

SCMPB06-18-channel backpanel without cold junction compensation circuits and standoffs for mounting. Use when cost savings is desired and thermocouple input modules SCM5B37 and SCM5B47 will not be used.

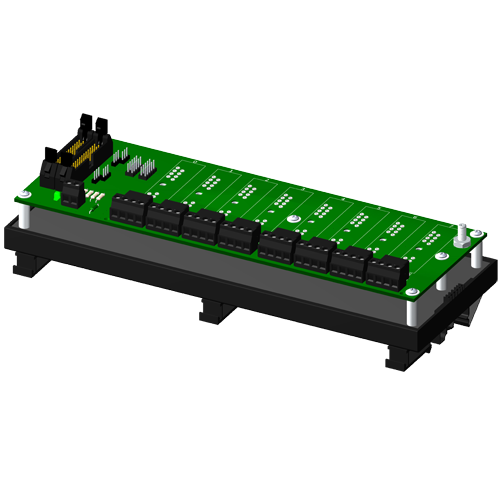

SCMPB06-28-channel backpanel with DIN rail mounting option. The backpanel is mounted on a plate which is captured by the SCMXBExx DIN rail mounting elements. Shipped fully assembled.

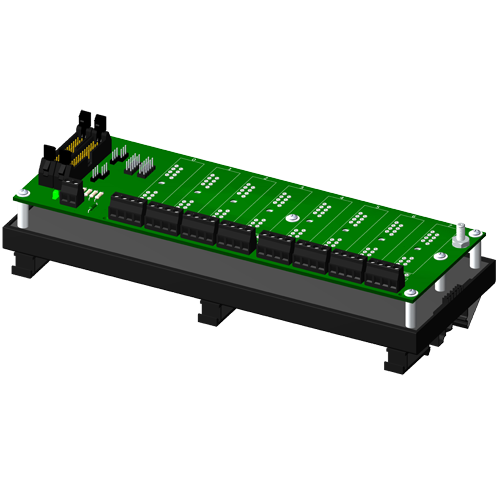

SCMPB06-38-channel backpanel without cold junction compensation circuits and with DIN rail mounting option. Shipped fully assembled
