SpectraScopeRT - Spectrum Analyzer Recording & Playback Viewer Software

Main features

  • RF Input Frequency Coverage Range from 9 kHz to 40 GHz
  • IF Analog Instantaneous Bandwidth Range Selection from 100 kHz to 1 GHz
  • A/D Sampling Rate Selection: 16-Bit up to 1 GS/s, 12-Bit up to 6 GS/s
  • Real-Time Sustained Gap-Free Streaming Rate up to 5 GB/s per Channel
  • Up to 192 TB Storage Capacity for Hours/Days of Signal Recording Time
  • Open Architecture, COTS Based Platforms – Portable, Desktop, Rackmount
  • Windows Spectrum Analyzer with Real-Time Signal Recording & Monitoring
  • Integrated Operational Control of Both Downconverter Receiver & Digitizer
  • Analysis Displays Include: Time Domain, Frequency Spectrum, Power Spectrum, Constellation, Spectrogram, Persistence, and Histogram
  • Actively Monitor Displayed Snapshots During Real-Time Live Recordings
  • Control and Monitor Multiple Systems Remotely with Server/Client Options
  • Flexible Signal Recording Output Filename Management Parameters
  • File Span Recording Splits Long Recordings into Multiple Size-Specified Files
  • Signal Recording Duration by File Size, Elapsed Time, or Both
  • Easy Import of Recording Files into 3rd Party Apps with Raw Binary Data
  • Save/Load Setup Configurations & Create/Run Script Execution Operations
  • Supports GaGe High-Speed Digitizer Model Instruments
  • Programming-Free GUI Operation; No Programming Skills Required
Price request Datasheet Ask a question

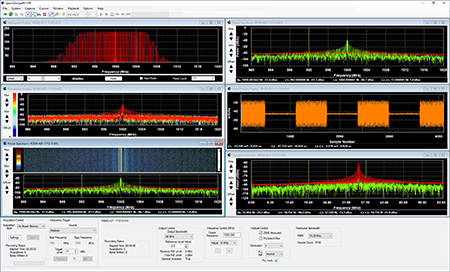

SpectraScopeRT is a Windows based spectrum analyzer application that requires no programming and allows for integrated operational control of both the downconverter receiver and the digitizer for signal capture, analysis, and conduct RF real-time streaming signal recordings with live monitoring. Any tuner, downconverter, or receiver with an IF output or a virtual receiver is supported. Analysis displays include Time Domain, Frequency Spectrum, Power Spectrum, Constellation, Spectrogram, Persistence, & Histogram.

The companion SpectraViewRT application allows an operator to open/view and conduct playback of previous signal recordings to the display monitor for analysis.

DSD-SRT-A00 - SpectraScopeRT Standard Edition

Real-Time Spectrum Analyzer
DSD-SRT-B00 - SpectraScopeRT Server Edition

Real-Time Spectrum Analyzer
DSD-SRT-C00 - SpectraScopeRT Remote Client Edition

Real-Time Spectrum Analyzer
DSD-SVT-000 - SpectraViewRT

Real-Time Spectrum Analyzer
SpectraScopeRT Spectrum Analyzer Recording & Playback Viewer Software
DSD-SRT-A00 SpectraScopeRT Standard Edition
DSD-SRT-B00 SpectraScopeRT Server Edition
DSD-SRT-C00 SpectraScopeRT Remote Client Edition
DSD-SVT-000 SpectraViewRT
