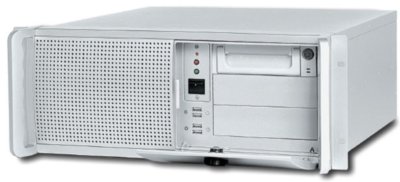

ACQ3000 - Rack mount PC 4U

Main features

  • Construction: high-strength steel with aluminum front
  • Cooling fans
  • Dimension: 482 (W) x 450 (D) x 177 (H) mm
  • Net Weight: 15,5 kg
  • ATX 500 Watts Power Supply
  • 12 PCI slots (9 full length)
  • Processor Core 2 duo or equivalent
  • 8G DDR RAM
  • 1 TB minimum hard drive
Price request Datasheet

The ACQ3000 industrial PC combines high performance, high card capacity and is extremely robust. It offers an attractive cost-effective solution for applications requiring processing power in rack-mountable industrial PCs. The ACQ3000 industrial PC has the capacity to adapt 12 expansion cards, of which 9 full length.

The ACQ3000 Industrial PC is the ideal solution for applications such as high-speed data loggers, high-speed digitizers, process automation, automatic test (ATE) and much more. The ACQ3000 Industrial PC is the platform used for the Acquirec32 series, multichannel data recorder.

ACQ3000 Rack mount PC 4U
