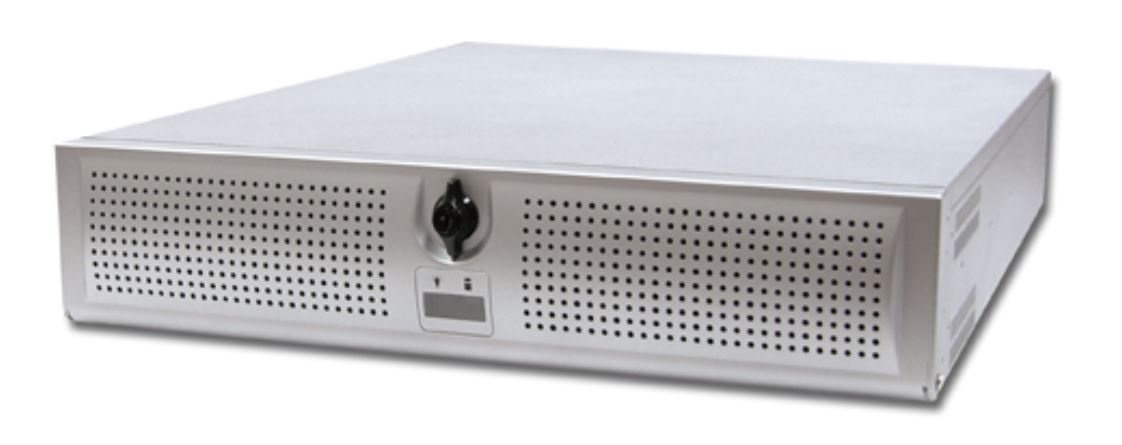

ACQ4000 - Rack mount computer 2U

Main features

  • Constuction: Heavy-duty steel with aluminum front panel
  • CPU: Intel Core I7 3770 4 Cores 3.4GHz 8Mo
  • Memory: 8GB SDRAM DDR3
  • Disk:
    • 1T Bytes Hard drive 7200 RPM operating system
    • 1 or 2 TBytes SATA II Hard drive, data storage
  • Network:2 x Gigabit Ethernet
  • Dimension: 565(D) x482(W) x92(H) mm, 13Kg
  • Back Panel Peripheral connector
    • 5 x PCI Express slot,  4 (X1) & 1 (X16)
    • 1 x VGA port2
    • 2 x Serial Port
    • 2 x USB ports
  • Power
    • Input: 110 / 230V AC
    • Output: 350W(PFC)
  • EMI Certified: FCC, CE
  • Safety Certified: UL, TUV
  • Operating Temperature:  0°C to 55°C
  • Storage Temperature: -20°C to 70°C
Price request Datasheet

The ACQ4000 Compact Industrial PC combines high performance, high capacity for adding cards and is extremely robust. It offers an interesting solution for applications requiring processing power in a rack-mountable industrial PC. The ACQ4000 Compact Industrial PC has 3 PCI or PCI Express slots, a 1TB SATA II drive for the operating system and up to two extractable drives for streaming applications with bandwidth up to 300MB / Sec .

The ACQ4000 Compact Industrial PC is the ideal solution for applications such as high-speed data loggers, high speed digitizers, process automation, automatic test (ATE) and much more. The ACQ4000 is the platform used for the AcquiSTREAM series, multichannel data logger.
