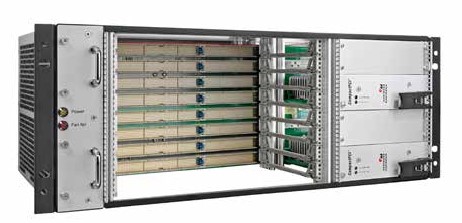

AcquiCrate-6U-8S-cPCI - CPCI 2.16 Basic System 4U 84 HP - Depth 283 mm

Main features

  • Basic System 4U / 84 HP CompactPCI 2.16- system platform with rear I / O, for horizontal installation of 6U cards
  • Card rack acc. to IEEE 1101.1, 1101.10 / 11 and IEC 60297-3-101, -102, -103
  • With CompactPCI 2.16 backplane to hold up to 4 CompactPCI power supply units (P47 connectors)
  • Cooled by 7 fans (air flow from left to right)
  • Completely assembled and wired
Price request Datasheet

1 x CompactPCI card rack, black coating outside (RAL9005), screened, with IEEE guide rails and ESD clip mounted on the right side

1 x CompactPCI 2.16 PSB backplane, 6+3 U, 8 slot, 64-bit / 33 MHz, system slot on right side, with rear I / O, with 3 P47 connectors, acc. to PICMG 2.16 R. 1.0

2 x CompactPCI power supply unit with wide range input 90 – 264 VAC, 250 W, (3,3 V / 33 A, 5 V / 33 A, 12 V / 5,5 A, –12 V / 1 A) with PFC, with P47 connector, incl. 3 U / 8 HP front panel

1 x Power supply connector with switch, fuse and filter

1 x Partial front panel 32 HP / 3 U with cutout for power supply connector, EMC spring

7 x DC fan, 80 x 80 x 25 and 40 x 40 x 20 mm (for rear I / O area)

2 x Blanking plate 8 HP / 3 U with EMC spring

Dimensions
B: 482.6 mm
H: 175.9 mm
D: 283.1 mm
