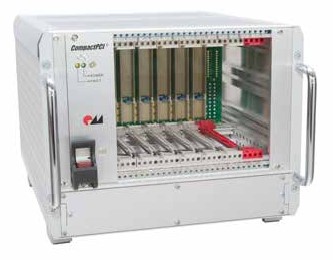

AcquiCrate-3U-7S-cPCI - CPCI Basic System 4U, 7 slots, 3U card

Main features

  • Backplane 7 slots 3U, 5V or 3.3V I/O , 32 Bit / 33 MHz
  • Fan Tray Fixed
  • 300 Watts Power supply
  • Rack 4U, 42HP, 278 mm depth
  • Standard IEEE 1101.1, 1101.10 / 11 and IEC 60297-3-101, -102, -103
Price request Datasheet Ask a question

Completely assembled and wired Basic System 4U / 42 HP CompactPCI system platform

1 x CompactPCI card rack, screened, cover / bottom plate perforated, with rear wall, executed in galvanized sheet steel, with IEEE guide rails and ESD clip mounted at the bottom. Card rack acc. to IEEE 1101.1, 1101.10 / 11 and IEC 60297-3-101, -102, -103

1 x CompactPCI backplane, 3 U, 7 slots, 32-bit / 33 MHz, system slot on right side, with ATX connector

1 x ATX power supply unit with wide range input 90 – 240 VAC, 300 watts

LMH0000860 - Rack 7 Slots, 3U, Backplane 5V

Rack CPCI

LMH0000870 - Rack 7 Slots, 3U, Backplane 3.3V

Rack CPCI

AcquiCrate-4U-7S-cPCI CPCI Basic System 4U, 7 slots, 3U card
LMH0000860 Rack 7 Slots, 3U, Backplane 5V
LMH0000870 Rack 7 Slots, 3U, Backplane 3.3V
