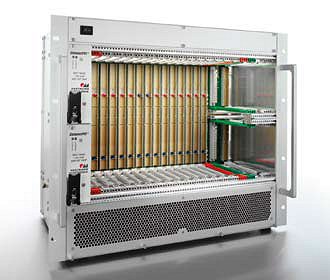

AcquiCrate-6U-16S-cPCI - 16 Slots 6U cPCI System Platform

Main features



  • 9 U / 84 HP CompactPCI 2.16 system platform with rear I / O, with 2 fabric slots and 14 node slots
  • Card rack acc. to IEEE 1101.1, 1101.10 / 11 and IEC 60297-3-101, -102, -103 screened
  • Prepared for up to 2 Intel ZT 7102 chassis management modules
  • With hot swap fan drawer (air flow from bottom front to top rear)
  • Completely assembled and wired



Price request Datasheet

Basic System 9U / 84 HP CompactPCI 2.16 system platform with rear I / O, with 2 fabric slots and 14 node slots
Card rack acc. to IEEE 1101.1, 1101.10 / 11 and IEC 60297-3-101, -102, -103 screened
Prepared for up to 2 Intel ZT 7102 chassis management modules
With hot swap fan drawer (air flow from bottom front to top rear)
Completely assembled and wired

1 x CompactPCI card rack, screened, executed in aluminium, with IEEE guide rails and ESD clip mounted at the bottom

1 x CompactPCI 2.16 PSB backplane, 6 U, 16 slots (2 fabric slots, 14 node slots), 64-bit / 33 MHz, with rear I / O, with 4 P47 connectors, acc. to PICMG 2.16 R. 1.0

2 x CompactPCI power supply unit with wide range input 90 – 264 VAC, 250 W, (3,3 V / 33 A, 5 V / 33 A, 12 V / 5,5 A, –12 V / 1 A) with PFC, with P47 connector, incl. 3 U / 8 HP front panel

1 x Hot swap fan drawer with 5 DC fans and filter mat

1 x Power supply connector with fuse and filter

1 x Partial front panel 84 HP / 2 U * with cutout for power supply connector

1 x Blanking plate 8 HP / 6 U *

1 x Blanking plate 12 HP / 6 U *

2 x Blanking plate 4 HP / 3 U *

1 x Blanking plate 84 HP / 1 U *

2 x Blanking plate 8 HP / 3 U *

* with EMC spring

Dimensions
B: 482.6 mm
H: 399.2 mm
D: 283.1 mm

AcquiCrate-6U-16S-cPCI16 Slots 6U cPCI System Platform
