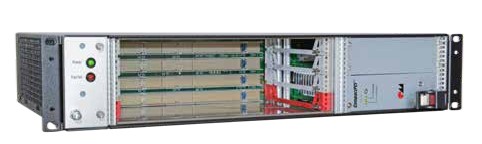

AcquiCrate-6U-4S-cPCI - CPCI Basic System 2U 84 HP - Depth 283.1 mm

Main features

  • Backplane 4 slots 64-Bit / 33 MHz
  • Fan Tray removable, 3 fans
  • 300 Watts Power supply
  • Rack 2U, 84HP, 283.1 mm depth
  • Standard IEEE 1101.1, 1101.10 / 11 and IEC 60297-3-101, -102, -103
Price request Datasheet Ask a question

Completely assembled and wired Basic System 2U / 84 HP CompactPCI system platform

1 x CompactPCI card rackmount. Card rack acc. to IEEE 1101.1, 1101.10 / 11 and IEC 60297-3-101, -102, -103

1 x CompactPCI backplane, 6 U, 4 slots, 64-Bit / 33 MHz, system slot on left side, with 2 * P47 connector, with rear I/O

1 x cPCI hotswap power supply unit with wide range input 90 – 264 VAC, 300 watts

LMH0000222 - 4 Slots 6U CPCI with 5V VI/O backplane

Rack cPCI

LMH0000130 - 4 Slots 6U CPCI with 5V VI/O backplane with fixed fans (Special order)

Rack cPCI

AcquiCrate-6U-4S-cPCI CPCI Basic System 2U 84 HP - Depth 283.1 mm
LMH0000222 4 Slots 6U CPCI with 5V VI/O backplane
LMH0000130 4 Slots 6U CPCI with 5V VI/O backplane with fixed fans (Special order)
