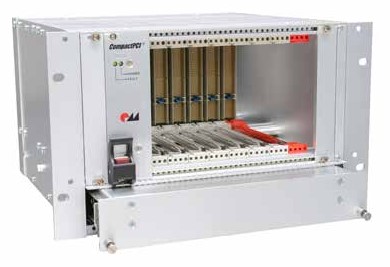

AcquiCrate-3U-8S-cPCI - CPCI Basic System 4U 63 HP - Depth 283 mm

Main features

  • Basic System 4U (½ + 3 + ½) / 63 HP CompactPCI system platform with rear I / O
  • Card rack acc. to IEEE 1101.1, 1101.10 / 11 and IEC 60297-3-101, -102, -103 in table housing
  • Cooled by 4 fans (air flow from bottom front to top rear)
  • Completely assembled and wired
Price request Datasheet

1 x CompactPCI card rack in table housing execution, aluminium extrusion profile side wall, aluminium cover/bottom plate (black coating outside [RAL9005], chromated inside), bottom plate perforated, screened, with IEEE guide rails and ESD clip mounted at the bottom

1 x CompactPCI backplane, 3 U, 8 slots, 32-bit / 33 MHz, system slot on right side, with rear I / O, mit P47 connector

1 x CompactPCI-Netzteil power supply unit with wide range input 90 – 264 VAC, (3,3 V / 33 A, 5 V / 33 A, 12 V / 5,5 A, –12 V / 1 A) with PFC, with P47 connector, incl. front panel 3 U / 8 HP

1 x Power supply connector with switch, fuse and filter

1 x Partial front panel 8 HP / 3 U with EMC spring on both sides, with cutout for power supply connector

4 x DC fan 80 x 80 x 25 mm

2 x Front feet with positioners

1 x Blanking plate 4 HP / 3 U *

1 x Blanking plate 19 HP / 3 U *

1 x Blanking plate 23 HP / 3 U *

* with EMC spring

Dimensions
B: 341.4 mm
H: 190.7 mm
D: 283.1 mm
