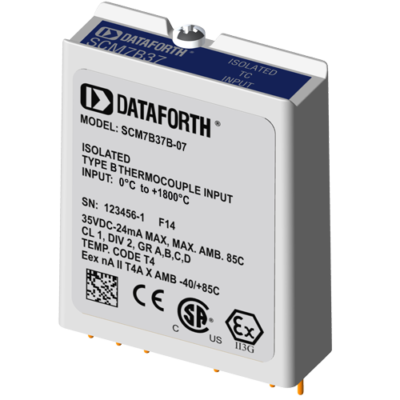

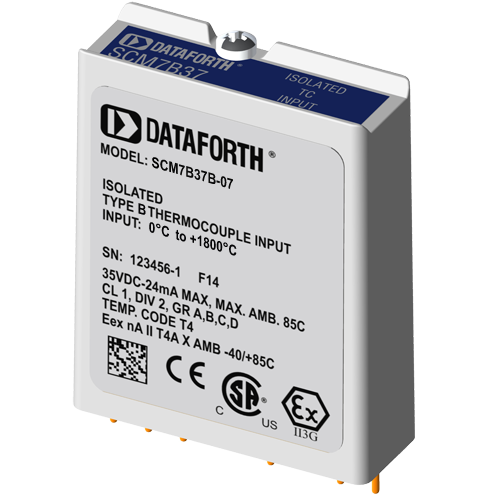

SCM7B37 - Non-Linearized Isolated Thermocouple Input Module

Main features

  • Interfaces to Type J, K, T, E, R, S, and B Thermocouples
  • High Level Voltage Outputs
  • 1500Vrms Transformer Isolation
  • Accuracy, ±0.03% of Span Typical, ±0.1% Max
  • ANSI/IEEE C37.90.1 Transient Protection
  • Input Protected to 120VAC Continuous
  • Noise, 500µV Peak (5MHz), 250µV RMS (100kHz)
  • CMRR, 160dB
  • NMR, up to 85dB
  • CSA Certified, FM Approved
  • CE and ATEX Compliant
Clear
Price request Datasheet

SCM7B37 non-linearized modules accept a single channel of input from Type J, K, T, E, R, S, or B thermocouples. The signal is filtered, isolated, amplified, and converted to a high-level analog voltage for output to the process control system.

Cold junction compensation (CJC) is performed using an NTC thermistor (see “Additional SCM7B Part Numbers” section for P/N and AN701 for further information) externally mounted under the field-side terminal block on the backpanel (Figure 1). Open thermocouple detection is upscale using a 30nA current source in the input circuitry.

These modules incorporate a five-pole filtering approach to maximize both time and frequency response by taking advantage of both Thomson (Bessel) and Butterworth characteristics. One pole of the filter is on the field side of the isolation barrier; four are on the process control system side.

After the initial field-side filtering, the input signal is chopped by a proprietary chopper circuit and transferred across the transformer isolation barrier, suppressing transmission of common mode spikes and surges. The signal is then reconstructed and filtered for process control system output.

Modules accept a wide 14 – 35VDC power supply range (+24VDC nominal). Their compact packages (2.13″x1.705″x0.605″ max) save space and are ideal for high channel density applications. They are designed for easy DIN rail mounting using any of the “-DIN” backpanels.

SCM7B37B-07 - Thermocouple Type: B Input Range: 0°C to 1800°C Output Range: +1 to +5V

7B

SCM7B37B-07A - Thermocouple Type: B Input Range: 0°C to 1800°C Output Range: 0 to +5V

7B

SCM7B37B-07D - Thermocouple Type: B Input Range: 0°C to 1800°C Output Range: 0 to +10V

7B

SCM7B37E-04 - Thermocouple Type: E Input Range: 0°C to 900°C Output Range: +1 to +5V

7B

SCM7B37E-04A - Thermocouple Type: E Input Range: 0°C to 900°C Output Range: 0 to +5V

7B

SCM7B37E-04D - Thermocouple Type: E Input Range: 0°C to 900°C Output Range: 0 to +10V

7B

SCM7B37J-01 - Thermocouple Type: J Input Range: -100°C to 760°C Output Range: +1 to +5V

7B

SCM7B37J-01A - Thermocouple Type: J Input Range: -100°C to 760°C Output Range: 0 to +5V

7B

SCM7B37J-01D - Thermocouple Type: J Input Range: -100°C to 760°C Output Range: 0 to +10V

7B

SCM7B37J-10 - Thermocouple Type: J Input Range: 0°C to 200°C Output Range: +1 to +5V

7B

SCM7B37J-10A - Thermocouple Type: J Input Range: 0°C to 200°C Output Range: 0 to +5V

7B

SCM7B37J-10D - Thermocouple Type: J Input Range: 0°C to 200°C Output Range: 0 to +10V

7B

SCM7B37J-11 - Thermocouple Type: J Input Range: 0°C to 400°C Output Range: +1 to +5V

7B

SCM7B37J-11A - Thermocouple Type: J Input Range: 0°C to 400°C Output Range: 0 to +5V

7B

SCM7B37J-11D - Thermocouple Type: J Input Range: 0°C to 400°C Output Range: 0 to +10V

7B

SCM7B37J-12 - Thermocouple Type: J Input Range: 0°C to 600°C Output Range: +1 to +5V

7B

SCM7B37J-12A - Thermocouple Type: J Input Range: 0°C to 600°C Output Range: 0 to +5V

7B

SCM7B37J-12D - Thermocouple Type: J Input Range: 0°C to 600°C Output Range: 0 to +10V

7B

SCM7B37J-13 - Thermocouple Type: J Input Range: 300°C to 600°C Output Range: +1 to +5V

7B

SCM7B37J-13A - Thermocouple Type: J Input Range: 300°C to 600°C Output Range: 0 to +5V

7B

SCM7B37J-13D - Thermocouple Type: J Input Range: 300°C to 600°C Output Range: 0 to +10V

7B

SCM7B37K-02 - Thermocouple Type: K Input Range: -100°C to 1350°C Output Range: +1 to +5V

7B

SCM7B37K-02A - Thermocouple Type: K Input Range: -100°C to 1350°C Output Range: 0 to +5V

7B

SCM7B37K-02D - Thermocouple Type: K Input Range: -100°C to 1350°C Output Range: 0 to +10V

7B

SCM7B37K-20 - Thermocouple Type: K Input Range: 0°C to 300°C Output Range: +1 to +5V

7B

SCM7B37K-20A - Thermocouple Type: K Input Range: 0°C to 300°C Output Range: 0 to +5V

7B

SCM7B37K-20D - Thermocouple Type: K Input Range: 0°C to 300°C Output Range: 0 to +10V

7B

SCM7B37K-21 - Thermocouple Type: K Input Range: 0°C to 600°C Output Range: +1 to +5V

7B

SCM7B37K-21A - Thermocouple Type: K Input Range: 0°C to 600°C Output Range: 0 to +5V

7B

SCM7B37K-21D - Thermocouple Type: K Input Range: 0°C to 600°C Output Range: 0 to +10V

7B

SCM7B37K-22 - Thermocouple Type: K Input Range: 0°C to 1200°C Output Range: +1 to +5V

7B

SCM7B37K-22A - Thermocouple Type: K Input Range: 0°C to 1200°C Output Range: 0 to +5V

7B

SCM7B37K-22D - Thermocouple Type: K Input Range: 0°C to 1200°C Output Range: 0 to +10V

7B

SCM7B37K-23 - Thermocouple Type: K Input Range: 600°C to 1200°C Output Range: +1 to +5V

7B

SCM7B37K-23A - Thermocouple Type: K Input Range: 600°C to 1200°C Output Range: 0 to +5V

7B

SCM7B37K-23D - Thermocouple Type: K Input Range: 600°C to 1200°C Output Range: 0 to +10V

7B

SCM7B37R-05 - Thermocouple Type: R Input Range: 0°C to 1750°C Output Range: +1 to +5V

7B

SCM7B37R-05A - Thermocouple Type: R Input Range: 0°C to 1750°C Output Range: 0 to +5V

7B

SCM7B37R-05D - Thermocouple Type: R Input Range: 0°C to 1750°C Output Range: 0 to +10V

7B

SCM7B37S-06 - Thermocouple Type: S Input Range: 0°C to 1750°C Output Range: +1 to +5V

7B

SCM7B37S-06A - Thermocouple Type: S Input Range: 0°C to 1750°C Output Range: 0 to +5V

7B

SCM7B37S-06D - Thermocouple Type: S Input Range: 0°C to 1750°C Output Range: 0 to +10V

7B

SCM7B37T-03 - Thermocouple Type: T Input Range: -100°C to 400°C Output Range: +1 to +5V

7B

SCM7B37T-03A - Thermocouple Type: T Input Range: -100°C to 400°C Output Range: 0 to +5V

7B

SCM7B37T-03D - Thermocouple Type: T Input Range: -100°C to 400°C Output Range: 0 to +10V

7B

SCM7B37Non-Linearized Isolated Thermocouple Input Module
SCM7B37B-07Thermocouple Type: B Input Range: 0°C to 1800°C Output Range: +1 to +5V
SCM7B37B-07AThermocouple Type: B Input Range: 0°C to 1800°C Output Range: 0 to +5V
SCM7B37B-07DThermocouple Type: B Input Range: 0°C to 1800°C Output Range: 0 to +10V
SCM7B37E-04Thermocouple Type: E Input Range: 0°C to 900°C Output Range: +1 to +5V
SCM7B37E-04AThermocouple Type: E Input Range: 0°C to 900°C Output Range: 0 to +5V
SCM7B37E-04DThermocouple Type: E Input Range: 0°C to 900°C Output Range: 0 to +10V
SCM7B37J-01Thermocouple Type: J Input Range: -100°C to 760°C Output Range: +1 to +5V
SCM7B37J-01AThermocouple Type: J Input Range: -100°C to 760°C Output Range: 0 to +5V
SCM7B37J-01DThermocouple Type: J Input Range: -100°C to 760°C Output Range: 0 to +10V
SCM7B37J-10Thermocouple Type: J Input Range: 0°C to 200°C Output Range: +1 to +5V
SCM7B37J-10AThermocouple Type: J Input Range: 0°C to 200°C Output Range: 0 to +5V
SCM7B37J-10DThermocouple Type: J Input Range: 0°C to 200°C Output Range: 0 to +10V
SCM7B37J-11Thermocouple Type: J Input Range: 0°C to 400°C Output Range: +1 to +5V
SCM7B37J-11AThermocouple Type: J Input Range: 0°C to 400°C Output Range: 0 to +5V
SCM7B37J-11DThermocouple Type: J Input Range: 0°C to 400°C Output Range: 0 to +10V
SCM7B37J-12Thermocouple Type: J Input Range: 0°C to 600°C Output Range: +1 to +5V
SCM7B37J-12AThermocouple Type: J Input Range: 0°C to 600°C Output Range: 0 to +5V
SCM7B37J-12DThermocouple Type: J Input Range: 0°C to 600°C Output Range: 0 to +10V
SCM7B37J-13Thermocouple Type: J Input Range: 300°C to 600°C Output Range: +1 to +5V
SCM7B37J-13AThermocouple Type: J Input Range: 300°C to 600°C Output Range: 0 to +5V
SCM7B37J-13DThermocouple Type: J Input Range: 300°C to 600°C Output Range: 0 to +10V
SCM7B37K-02Thermocouple Type: K Input Range: -100°C to 1350°C Output Range: +1 to +5V
SCM7B37K-02AThermocouple Type: K Input Range: -100°C to 1350°C Output Range: 0 to +5V
SCM7B37K-02DThermocouple Type: K Input Range: -100°C to 1350°C Output Range: 0 to +10V
SCM7B37K-20Thermocouple Type: K Input Range: 0°C to 300°C Output Range: +1 to +5V
SCM7B37K-20AThermocouple Type: K Input Range: 0°C to 300°C Output Range: 0 to +5V
SCM7B37K-20DThermocouple Type: K Input Range: 0°C to 300°C Output Range: 0 to +10V
SCM7B37K-21Thermocouple Type: K Input Range: 0°C to 600°C Output Range: +1 to +5V
SCM7B37K-21AThermocouple Type: K Input Range: 0°C to 600°C Output Range: 0 to +5V
SCM7B37K-21DThermocouple Type: K Input Range: 0°C to 600°C Output Range: 0 to +10V
SCM7B37K-22Thermocouple Type: K Input Range: 0°C to 1200°C Output Range: +1 to +5V
SCM7B37K-22AThermocouple Type: K Input Range: 0°C to 1200°C Output Range: 0 to +5V
SCM7B37K-22DThermocouple Type: K Input Range: 0°C to 1200°C Output Range: 0 to +10V
SCM7B37K-23Thermocouple Type: K Input Range: 600°C to 1200°C Output Range: +1 to +5V
SCM7B37K-23AThermocouple Type: K Input Range: 600°C to 1200°C Output Range: 0 to +5V
SCM7B37K-23DThermocouple Type: K Input Range: 600°C to 1200°C Output Range: 0 to +10V
SCM7B37R-05Thermocouple Type: R Input Range: 0°C to 1750°C Output Range: +1 to +5V
SCM7B37R-05AThermocouple Type: R Input Range: 0°C to 1750°C Output Range: 0 to +5V
SCM7B37R-05DThermocouple Type: R Input Range: 0°C to 1750°C Output Range: 0 to +10V
SCM7B37S-06Thermocouple Type: S Input Range: 0°C to 1750°C Output Range: +1 to +5V
SCM7B37S-06AThermocouple Type: S Input Range: 0°C to 1750°C Output Range: 0 to +5V
SCM7B37S-06DThermocouple Type: S Input Range: 0°C to 1750°C Output Range: 0 to +10V
SCM7B37T-03Thermocouple Type: T Input Range: -100°C to 400°C Output Range: +1 to +5V
SCM7B37T-03AThermocouple Type: T Input Range: -100°C to 400°C Output Range: 0 to +5V
SCM7B37T-03DThermocouple Type: T Input Range: -100°C to 400°C Output Range: 0 to +10V
