SG4400L - 4.4GHz RF signal generator

Main features

  • Frequency Range: 35-4400 MHz
  • Power Level: >8 dBm
  • Dimensions: 2.75″ x 1.24″ x 3″
  • Input Voltage: 5V Standard USB
  • Output Impedance: 50 Ohm

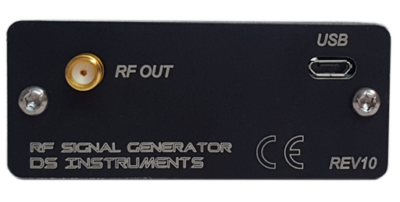

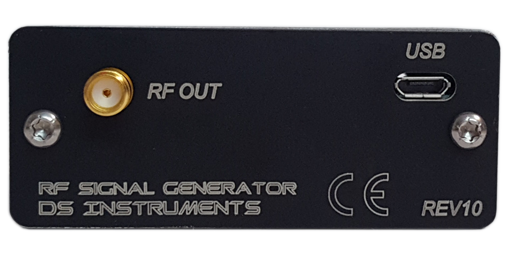

  • RF Connectors: SMA
Price request Datasheet

The SG4400L compact RF Signal Generator enables users to generate a high quality RF signal easily and at low cost. The output covers 35 to 4400 MHz. The produced wave is fully synthesized using modern fractional N synthesis. The step size of the RF output varies from a maximum of ~1.5KHz to less than 25Hz , depending on band of operation.

The synthesized source can accept an external 10 MHz reference OR it can use its own internal 10 MHz. Maximum output power is typically above 8 dBm and can be adjusted in 0.5dB steps down by 31.5dB.

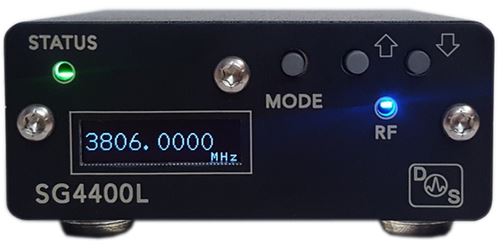

The OLED display provides useful feedback for the user, and front control buttons provide a quick alternative to USB control. Like most of our products, the SG4400L easily fits in the palm of your hand, making it a truly portable and bench-space-saving device.

SG4400L4.4GHz RF signal generator
