SG12000PRO - 12GHz signal generator

Main features

  • Highest Harmonic Levels: -30dBc typical (1-13GHz)
  • Frequency Range: 50-13000 MHz (10-15000MHz uncalibrated mode)
  • Default Power Level: +10dBm
  • Phase Noise at 12GHz: -94dBc @ 10KHz offset
  • Internal Attenuator (digital 6-15GHz): 64dB (250 x 0.25dB Steps)
  • Internal Attenuator (digital 0-6GHz): 32dB (64 x 0.50dB Steps)
  • Internal Attenuator (variable 0-15GHz): ~15dB (10 bit DAC)
  • Dimensions: 2.75″ x 1.25″ x 4.15″
  • Input Voltage: 5V Standard USB-C (1.30A max)
  • Output Impedance: 50 Ohm
  • RF Connector: Premium gold 18GHz microwave SMA
Price request Datasheet

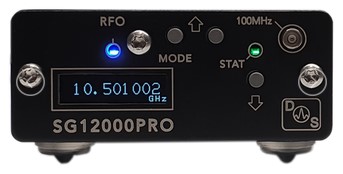

The SG12000PRO RF Signal Generator continues to set the industry standard in affordable ultra-compact RF Signal Generation. The SG12000PRO provides a pure low-harmonic signal unlike most other compact signal generators. This fully synthesized, modern fractional-N synthesis device covers from 10 to 15000MHz. Output power is adjustable in steps and continuously over the entire frequency range. The bright OLED display provides useful feedback for the user, and front control buttons provide a quick alternative to USB control. This PRO version has phase noise approximately 30dB lower than the standard SG12000, a much smaller minimum frequency step size (10Hz vs 5KHz), a more accurate output level attenuator, and a wider frequency range.

SG12000PRO12GHz signal generator
