SG22000PRO - Ultra-compact low-noise 100MHz to 22GHz microwave signal generator.

Main features

  • Single multi-band SMA RF output port
  • RF output covering 0.1 – 22GHz (0.025 – 24.50GHz at reduced performance)
  • Full-band power control: -20 to +10dBm Calibrated (-30 to +13dBm typical uncalibrated)
  • Power output level resolution: 0.50dB steps & ~0.1dB vernier control
  • Calibrated power range (<13GHz): -40 to +15dB
  • Calibrated power range (>13GHz): -15 to +15dBm
  • Uncalibrated power range: -40 to +17dBm typical
  • Low phase noise -92dBc @ 20GHz @ 10KHz offset
  • Extremely small frequency step size (2Hz)
  • Harmonic level (typical): < -15dBm
  • Ultra-low-noise 100MHz VCXO locked to internal TCXO or external 10MHz reference
  • Internal precision high-frequency reference source (±280PPB 10MHz)
  • Compact powder-coated laser-etched enclosure

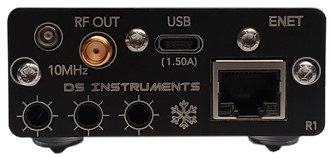

  • Ethernet & USB remote operation
  • Windows control software included (USB & Network enabled)
  • SCPI command aware via USB virtual COM port for remote control

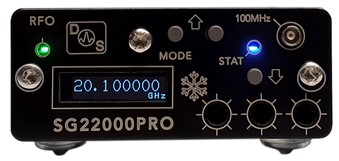

  • Front controls and bright OLED display for stand-alone usage
  • USB-C powered, requires no extra DC adapter
  • Silent, passively-cooled operation
Price request Datasheet Ask a question

Offering lower phase noise, a wider frequency range, and more robust output level control than the standard SG22000L. Like our SG6000 product line, this RF generator is fully programmable via SCPI commands (USB / Ethernet) or the front panel interface making it more flexible than any competing product.

Offered as a higher performance version of the SG2200L, this upgraded microwave generator is aimed at phase-noise sensitive applications in X, Ku, and K-band development and testing.
