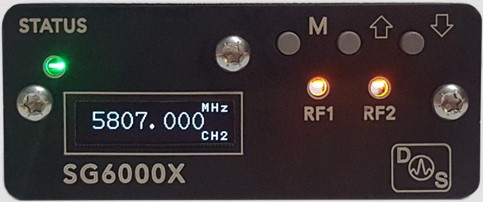

SG6000X - Dual channels 6GHz signal generator

Main features

  • Frequency Range: 25-6000 MHz
  • Power Level: >+10 dBm
  • Phase Noise: -74dBc @ 10KHz offset
  • Internal Attenuator (digital): 64x 0.5dB Steps
  • Internal Attenuator (variable): ~10dB (10 bit DAC)
  • Dimensions: 2.75″ x 1.25″ x 3.15″
  • Input Voltage: 5V micro USB
  • Output Impedance: 50 Ohm
  • RF Connectors: 2X Premium gold microwave SMA
Price request Datasheet

The SG6000X Dual RF Signal Generator continues to set the industry standard in affordable ultra-compact RF Signal Generation. The SG6000X enables users to generate two separate high quality RF signals easily and at extremely low cost without need for a host PC. This fully synthesized, modern fractional N synthesis device covers 7 octaves from 25 to 6000 MHz.

Max output power is typically above +10 dBm and can be adjusted downward in 0.5dB steps, or continuously via the internal variable attenuator. The OLED display provides useful feedback for the user, and front control buttons provide a quick alternative to USB control. Like most of our products, the X easily fits in the palm of your hand, making it a truly portable and bench-space-saving device.

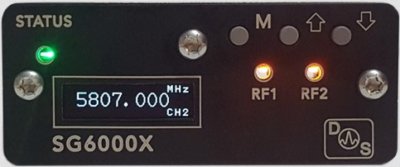

SG6000XDual channels 6GHz signal generator
