SG6000F - Low harmonic 6GHz signal generator

Main features

  • Active harmonic filtering
  • Stand-alone and USB remote operation
  • 50MHz to 6GHz output frequency
  • Adjustable output power (Step & Variable)
  • Industry-standard SCPI command support
  • Internal ±2.5PPM TCXO 10MHz reference
  • Front user frequency step buttons
  • Frequency-sweeping support
  • Front-mounted bright OLED display
  • Simple Windows control GUI
  • Powered from standard micro-USB
  • Easy to interface with all software packages (.NET, Matlab, python, android, linux…)
Price request Datasheet Ask a question

The SG6000F RF Signal Generator continues to set the industry standard in affordable ultra-compact RF Signal Generation. The SG6000F provides a pure low-harmonic signal unlike most other compact signal generators. This fully synthesized, modern fractional-N synthesis device covers up to 6GHz.

Output power is auto-leveled to +10dBm and can be adjusted downward in 0.5dB steps, or continuously via the internal variable attenuator. The bright OLED display provides useful feedback for the user, and front control buttons provide a quick alternative to USB control.

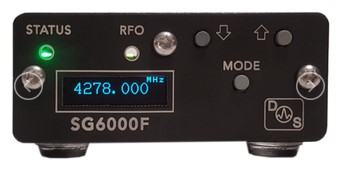

SG6000F Low harmonic 6GHz signal generator
