SG6000L - 6GHz signal generator

Main features

  • Frequency Range: 24-6000 MHz
  • Power Level: >6 dBm
  • Dimensions: 2.75″ x 1.24″ x 4″
  • Input Voltage: 5V Standard USB
  • Output Impedance: 50 Ohm
  • RF Connectors: SMA
Price request Datasheet

The SG6000L compact RF Signal Generator enables users to generate a high quality RF signal easily and at low cost. The output covers 7 octaves from 24 to 6000 MHz. The produced wave is fully synthesized using modern fractional N synthesis. The step size of the non-doubled RF output varies from a maximum of ~3 KHz to less than 40 Hz, depending on band of operation.

The synthesized source can accept an external 10 MHz reference OR it can use its own internal 10 MHz. Output power is typically above 6 dBm and can be turned ON/OFF via USB commands.

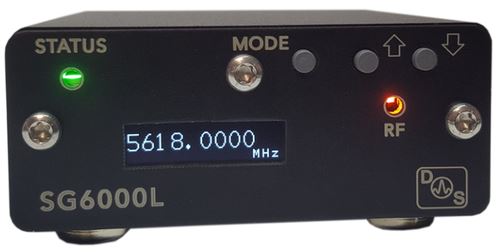

The OLED display provides useful feedback for the user, and front control buttons provide a quick alternative to USB control. Like most of our products, the SG6000L easily fits in the palm of your hand, making it a truly portable and bench-space-saving device.
