HS3 - USB Oscilloscope 2-Ch, 12-bit, Generator 1-Ch, 12-bit

Main features

  • 2 Input Channels, 12-bit
  • up to 100 MS/s A/D Converter per Channel
  • 128 kS/channel
  • 1 AWG output channel, 14-bit
  • up to 50MS/s
  • 256 kS
  • USB 2.0 or USB 1.1 format
  • Powerful Standalone Application provided
    • Storage Oscilloscope
    • Spectrum Analyzer
    • Transient Recorder
    • Multimeter
    • Arbitrary Waveform Generator
Clear
Price request Datasheet

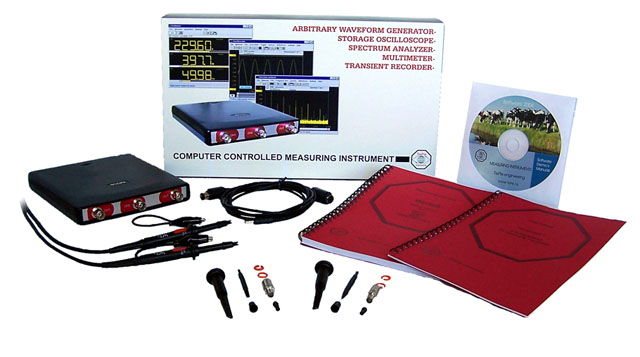

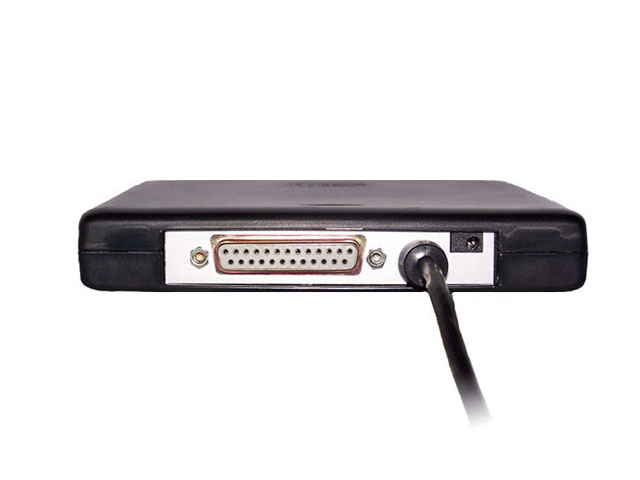

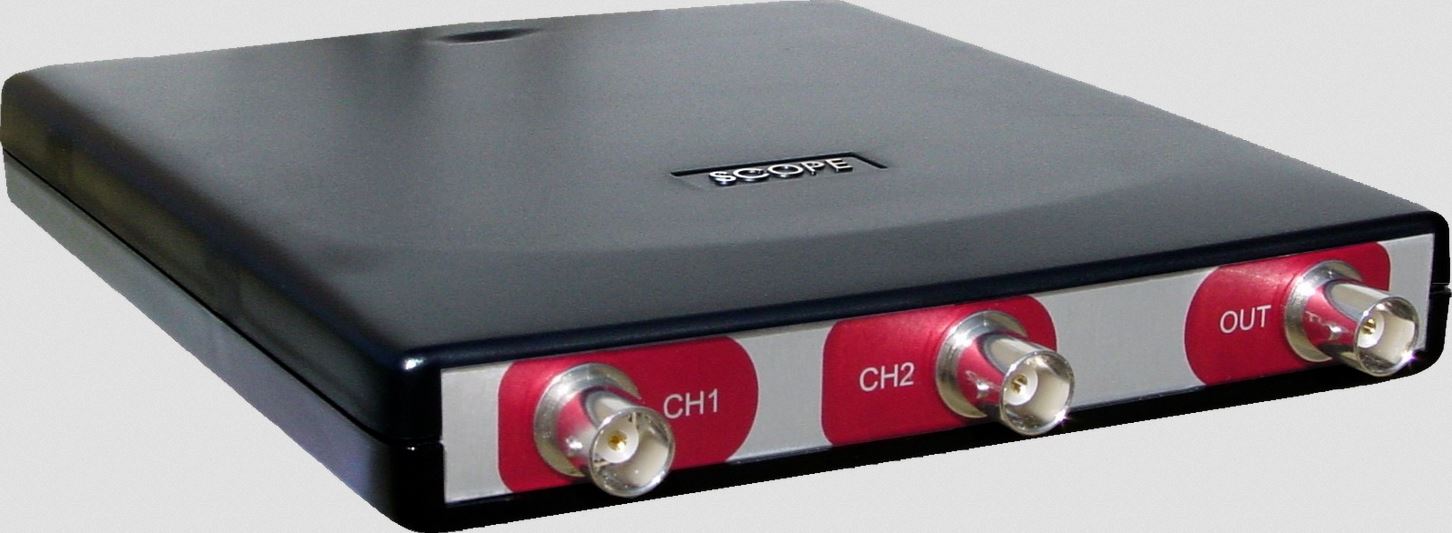

The HS3 is a powerful computer controlled measuring instrument that consists of four measuring instruments: a Multimeter, Oscilloscope, Spectrum analyzer and Transient recorder. Also an AWG (Arbitrary Waveform Generator) is available. This new powerful and compact measuring instrument can solve almost every measurement problem. The HS3 features a user selectable 8 bit, 12 bit, 14 bit or 16 bit resolution (14 bit effective, SNR 95 dB), 200 mV – 80 V full scale input range, 128 Ksamples record length per channel and a sampling frequency up to 100 MHz on both channels (100 MHz only in 8 bit resolution).

The integrated AWG operates fully independent from the measuring system of the HS3. It has a 50 MHz sampling clock, 1024 / 128K samples deep waveform memory, 14 bit output resolution and ± 12 Volt output range. The AWG allows you to generate test signals for your measurements in any shape you like. Several standard signal shapes are available and it is possible to regenerate previous measured signals. Connected to the fast USB 2.0, the HS3 doesn’t require an external power supply, therefore the HS3 easily complies to “Plug in and measure”.

The universal software that is delivered with the HS3 turns your PC into a storage oscilloscope, a spectrum analyzer, a voltmeter and a transient recorder. An intelligent auto setup allows the inexperienced user to perform measurements immediately. The software allows you to save instrument settings on disk. Later these setting files can be recalled, reducing the setup time of your instrument to an absolute minimum.

HS3-5 - Oscilloscope 2CH & 1 AWG (5 MHz version) USB

Oscilloscope and generator

HS3-10 - Oscilloscope 2CH & 1 AWG(10 MHz version) USB

Oscilloscope and generator

HS3-25 - Oscilloscope 2CH & 1 AWG (25 MHz version) USB

Oscilloscope and generator

HS3-50 - Oscilloscope 2CH & 1 AWG (50 MHz version) USB

Oscilloscope and generator

HS3-100 - Oscilloscope 2CH & 1 AWG (100 MHz version) USB

Oscilloscope and generator

HS3USB Oscilloscope 2-Ch, 12-bit, Generator 1-Ch, 12-bit
HS3-5Oscilloscope 2CH & 1 AWG (5 MHz version) USB
HS3-10Oscilloscope 2CH & 1 AWG(10 MHz version) USB
HS3-25Oscilloscope 2CH & 1 AWG (25 MHz version) USB
HS3-50Oscilloscope 2CH & 1 AWG (50 MHz version) USB
HS3-100Oscilloscope 2CH & 1 AWG (100 MHz version) USB

HP-2022 - Oscilloscope probe 1:1 HP-2022 - Oscilloscope probe 1:1

The Oscilloscope probe 1:1 - HP-2022 is a passive high impedance oscilloscope probe with 15 MHz bandwidth designed and calibrated for use on oscilloscopes having an input impedance ...

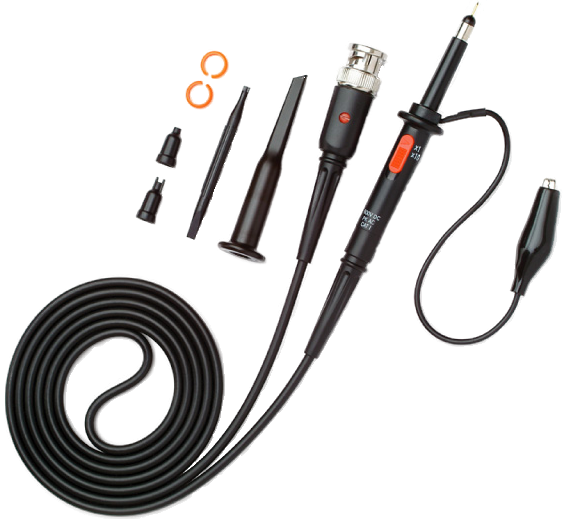

HP-3060 - Oscilloscope probe 1:1 and 1-10
HP-3060 - Oscilloscope probe 1:1 and 1-10

The Oscilloscope Probe 1:1-1:10 - HP-3060 is a 1:1-1:10 selectable passive high impedance oscilloscope probe with 60 MHz bandwidth (1:10) designed and calibrated for use on an oscilloscope ...

HP-9258 - Oscilloscope probe 1:100
HP-9258 - Oscilloscope probe 1:100

The Oscilloscope Probe 1:100 - HP-9258 is a low-input capacitance high voltage 1:100 oscilloscope probe with a bandwidth of 250 MHz designed and calibrated for use on scopes ...

SI-9002 - Oscilloscope Differential probe
SI-9002 - Oscilloscope Differential probe

The Differential probe SI-9002 extends the measurement power of oscilloscopes to power semiconductor circuits. This Differential Probe provides any general oscilloscope with a high voltage differential input.

TP-ACC20 - Accelerometer
TP-ACC20 - Accelerometer

The Accelerometer TP-ACC20 is a dual axis accelerometer combined with a manual trigger button, designed to be used with the Handyscope HS3, Handyscope HS4, Handyscope HS4 DIFF (order ...

TP-CC400 - Current Clamp
TP-CC400 - Current Clamp

The Current clamp TP-CC400 is a current clamp that will allow your measuring instrument to measure electrical currents up to 400 A AC/DC, with a frequency response up ...

TP-CC600 - Current Clamp
TP-CC600 - Current Clamp

The Current clamp TP-CC400 is a current clamp that will allow your measuring instrument to measure electrical currents up to 600 A AC/DC, with a frequency response up ...

TP-CC80 - Current Clamp
TP-CC80 - Current Clamp

The Current clamp TP-CC80 is a current clamp that will allow your measuring instrument to measure electrical currents up to 80 A AC/DC, with a frequency response up ...

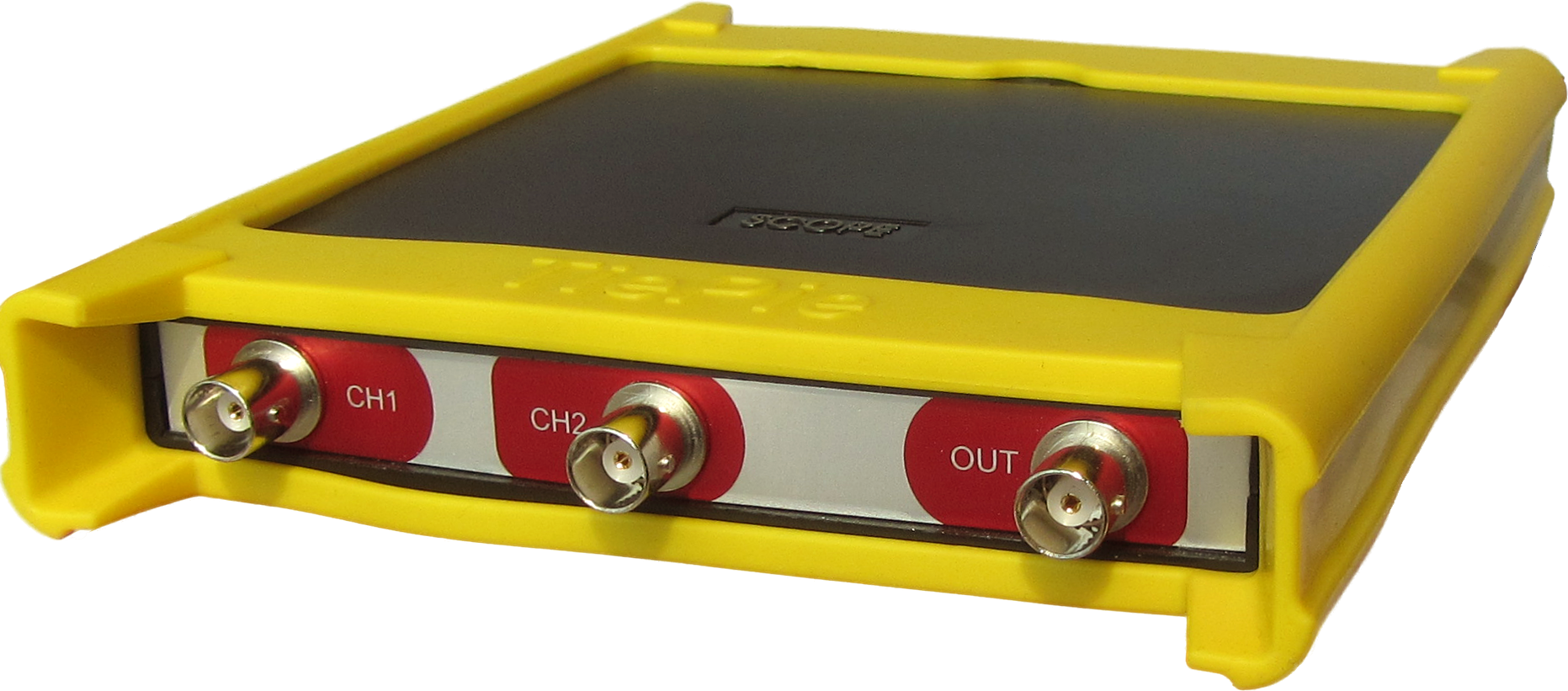

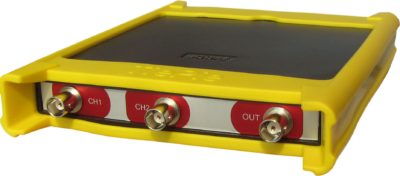

TP-RP-HS - Rubber protector TP-RP-HS - Rubber protector
